CRCC Railway Axle Box

Place of Origin CHINA
Brand Name HT
Certification ISO
Minimum Order Quantity 80 PCS
Price 200-300
Packaging Details Standard export wooden case
Delivery Time 30-45 Days, depends on Qty
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 Pcs/Month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ZG230-450 Product Name Railway Axle Box
Standard TB T 2427-1993 Certificate ISO 9001,CRCC
Working Temperature -40℃-+70℃ Size Customized
Highlight

CRCC Railway Axle Box

,

ZG230-450 Railway Axle Box

,

CRCC train axle box

Leave a Message
Product Description

Product Description

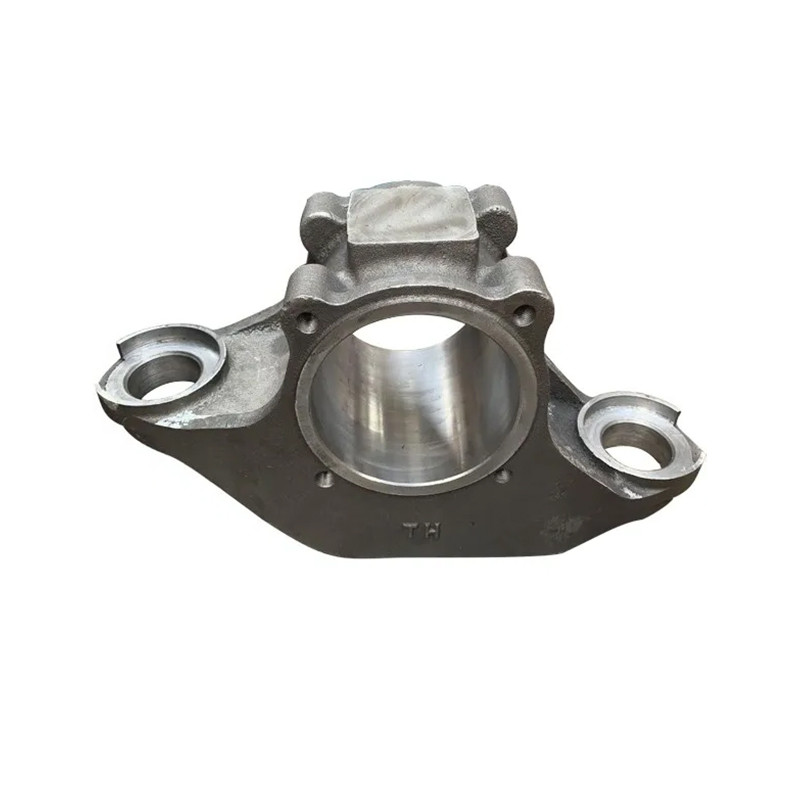

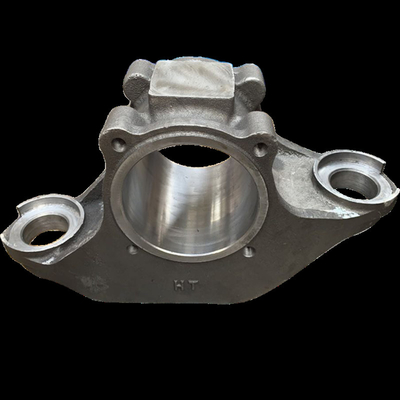

Railway Coaches Bogie Casting Axle Box, it's on railway Coaches and locomotives and wagon, the parts that connect the wheelset and the bogie frame or two axle car body over the journal.

An inner wall provided at the end of the front cover of the inner diameter portion of the axle box to restrain the bearing, there is a shaft in the upper part for inserting the shaft spring seat, With shock absorber base.



Product Specification

Type Bogie Casting Axle Box
Standard TB T 2427-1993
Certificate ISO 9001,CRCC
Production ability 1000 Piece per month
Material ZG230-450, Grade C/E cast steel
Working temperature ‘-40℃-+70℃
Size Customized
Design lifetime 5 years or 2.4*106, which comes first
Guarantee 12 months



CRCC Railway Axle Box 0

CRCC Railway Axle Box 1




Function

  1. Active joints: The connecting wheelset and frame active joint.
  2. Force transmission: Transmit traction, lateral and vertical forces.
  3. Sports: Realize vertical and lateral movement between wheelset and frame.





Form

  1. According to bearing type included the Plain bearing axle boxes and rolling bearing axle boxes.
  2. According to the positioning method, there are Guide frame and without Guide frame.
