Brake Block Railway Braking System

Place of Origin CHINA
Brand Name HTR
Certification CRCC
Minimum Order Quantity Ngotiable
Price Ngotiable
Packaging Details Export packagings or Customize
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C, T/T
Supply Ability 9000pcs per month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Railway Brake Block,brake Shoe Material Composite
Speed Using For 80-120km/hour Braking Force High Friction Or Low Friction
Colour Black, Yellow, Red Or Custom Colour Dimensions Customize
Production Standard TB/T 2403-2010 Package Export Packaging
Port Shanghai,qingdao,ningbo,shengzhen,chongqing Ect.
Highlight

Brake Block Railway Braking System

,

2.8 Friction Railway Braking System

,

2.8 Friction railway brake shoe

Leave a Message
Product Description

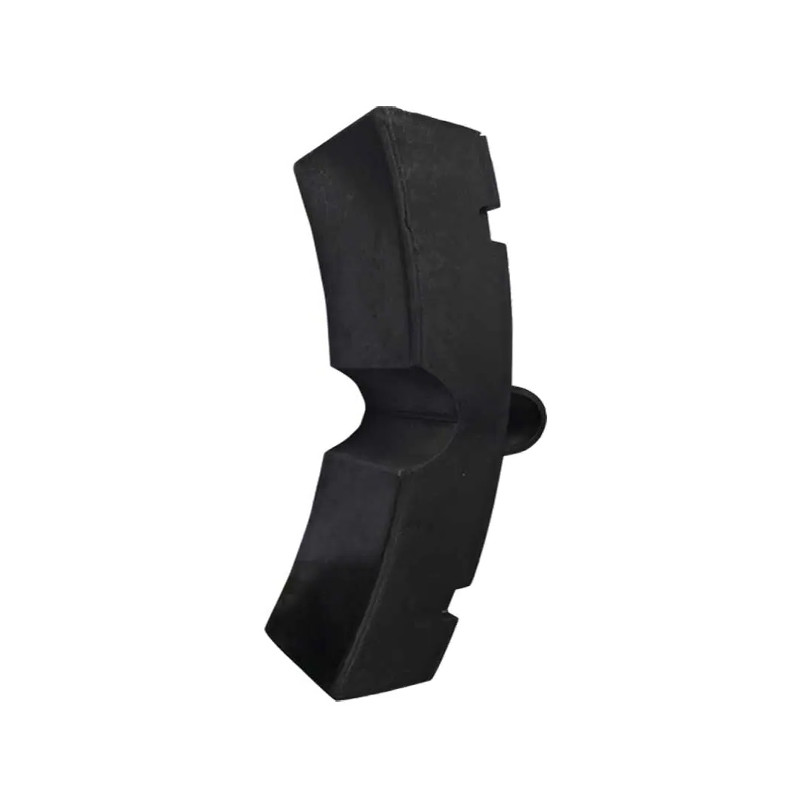

Railway Frieght Rolling Stock Composite Brake Shoes High Friction Brake Block

When the train is running and braking, the brake part that directly rubs the wheel to stop the train is the brake shoe; the tile shaped brake block made of cast iron,composite material or other materials holds the wheel tread tightly and makes the wheel stop rotating through friction.



Railway brake shoe other name is railway brake block, train brake block. It is mainly used for the braking of heavy-duty freight cars. It is applicable to railway freight cars with maximum running speed of 120km/h and axle load of no more than 25t.



Composite brake shoes for railway freight cars are divided into two types: one is high friction coefficient composite brake shoe(H), and the other is low friction coefficient composite brake shoe(L). “H” brake shoe cannot be interchanged with “L” brake shoe and various cast iron brake shoes.



Product Specification

Material

Composite

Inspection

Domestic or Appointed

Braking Force

High friction(2.8~3.2)

Density(g/cm3)

Not more than ± 5%

Compression modulus(MPa)

≤1.3×103

Compressive strength(MPa)

≥25

Yield strength(Mpa)

≥235

Tensile strength(Mpa)

≥370

Elongation after fracture

≥26%



Advantage

1. Customized according to customer requirements

2. Friction property can be adjust according to requirement.

3. Good wear resistance and long life span.

4. Its no Crocidolite in Ironstone(asbestos).

5. It contains no lead, zinc or any other toxic materials,

6. it is environmental friendly, and causes no bad smell in friction.

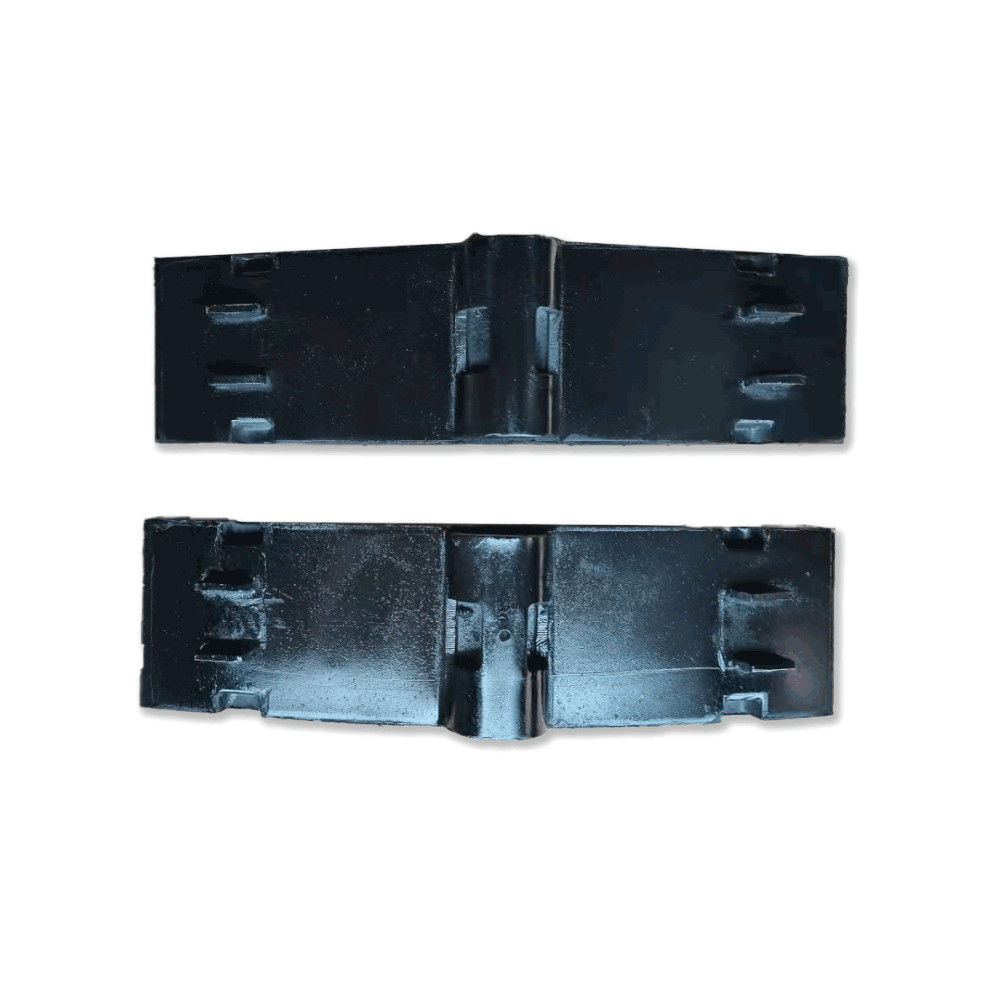

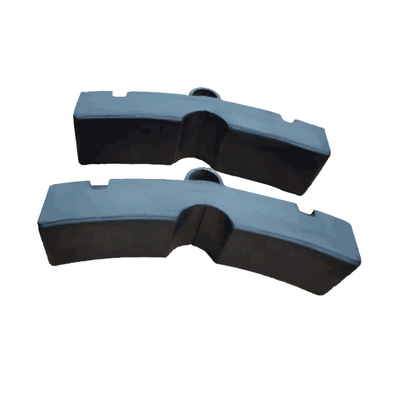

Brake Block Railway Braking System 0Brake Block Railway Braking System 1

Application

Brake Block Railway Braking System 2

Related products



1. Cast iron brake shoe

      Advantage

  • Cast iron material is characterized by firmness and durability,
  • low price,
  • stability and good thermal conductivity.
  • have high and stable friction coefficient,
  • wear resistance,
  • excellent thermal conductivity,
  • good thermal cracking resistance,
  • stable friction coefficient in snow weather environment

2. Powder treated brake shoe
Powder metallurgy brake shoe is made of metal or alloy as the matrix, added with friction, lubrication or other metals and nonmetals with some special functions, and made by powder metallurgy technology. Its quality is between high wear synthetic and cast iron brake shoes. It forms black powder after wearing with the locomotive wheel tread, which will not cause major damage to the locomotive wheel tread.
