Subfloor Lifting Railway Related Equipment 300mm/Min 3kW Single Motor
| Place of Origin | China |
|---|---|
| Brand Name | Subfloor Lifting Plants |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden case |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Subfloor Lifting Plants | Supporter Width | 250mm |
|---|---|---|---|
| Individual Jack Stroke Indication Error | ±0.5mm | Max. Height From Jack Base To Floor During Moving The Jack | 60mm |
| Working Voltage | 3-phase 5-wire, AC380V±10%, 60±0.5Hz | Control Voltage | AC220V, DC24V |
| Single Motor Power | 3kW | ||
| Highlight | Subfloor Lifting Railway Related Equipment,Lifting Railway Related Equipment 300mm/min,Railway Lifting Jack 3kW |
||
Product Description

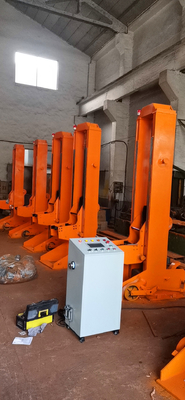

Railway Lifting Subfloor Lifting Plants
Product overview
Subfloor Lifting Plants one of the new series car lifter with automatic lifting wheels developed by us to adapt to the new situation of railway development, ensure the safety of vehicle repair, improve the quality of maintenance, shorten the time of vehicle repair.
Product specification
| S.No. | Item | Value |
| 1 | Type | Subfloor Lifting Plants |
| 2 | Standard | TB/T1686-2000 |
| 3 | Welding standard | GB/T5117:E4303/E5015, GB/T12467 |
| 4 | Guarantee | 12months |
| 5 | Single lifting jack capacity | 12Ton |
| 6 | Car lifter capacity | 48Ton |
| 7 | Carrier effective stroke | 1800mm |
| 8 | Min. height from supporting plane of supporter to floor | 510mm |
| 9 | Lifting speed | 300mm/min |
| 10 | Working voltage | 3-phase 5-wire, AC380V±10%, 60±0.5Hz |
| 11 | Control voltage | AC220V, DC24V |
| 12 | Single motor power | 3kW |
| 13 | Supporter adjustable range | ±50mm |
| 14 | Supporter width | 250mm |
| 15 | Screw rod lead S | 16mm |
| 16 | Screw rod nominal diameter | 100mm |
| 17 | Angle between trapezoidal threads | 30° |
