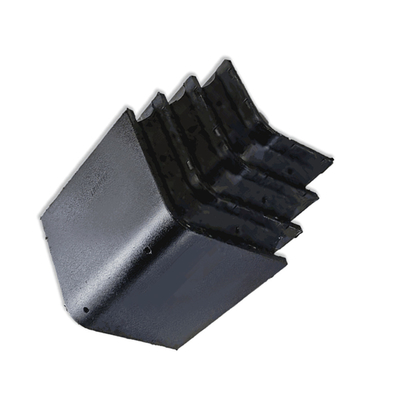

EN45545 Rubber Chevron Spring Vibration Reduction For Suspension Axle
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 100pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C, T/T, Western Union, Paypal |
| Supply Ability | 5,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Vibration Reduction Chevron Rubber Spring | Application | Metro,Intercity Train,Tram Light Car Vehicles |
|---|---|---|---|
| Highlight | EN45545 Rubber Chevron Spring,Chevron Spring Vibration Reduction,EN45545 Suspension Rubber Spring |
||
Product Description
Product overview
The primary suspension with chevron spring, because the chevron rubber spring installed on the axle box slantly, its deviation of dimensions and hardness have important influence on the installation height of frame. To ensure the bogie with chevron spring can operate safety, the dimensions of primary suspension`s parts should be controlled strictly.
Product specification
| S.No. | Item | Value | |
| 1 | Operation Temperature | -25℃ to 50℃ | |
| 2 | Type | Primary Suspension Axle Spring | |
| 3 | Standard | EN45545, GB/T 36375-2018 | |
| 4 | Application | Metro,Intercity train,Tram Light car vehicles | |
| 5 | Tensile strength | ≥15MPa | |
| 6 | Elongation at break | ＜60 Shore A | ≥400% |
| ≥60 Shore A | ≥300% | ||
| 7 | Adhesive strength of metal and rubber | ≥4 Mpa | |
| 8 | Resilience | ≥40% | |
| 9 | EN Compression Set | ≤20%(70℃, 24h) | |
| 10 | Ozone resistance | Crack free; ozone density(50±5)*10(-8), 23℃, 24h, 20% elongation, relative humidity≤65% | |
| 11 | Air oven aging performance (70℃, 96h) | Hardness Change, shore A | ≤7 |
| Tensile strength reduction rate | ≤25% | ||
| Reduction rate of elongation at break | ≤25% | ||
| 12 | Brittleness temperature(-40℃) | Non-destructive | |
| 13 | Fatigue test | 2,000,000 times | |
| 14 | Storage temperature | -15℃ to 40℃ | |
| 15 | Surface treatment | Anti-corrosion | |
| 16 | Storage time | ≤24 months | |
