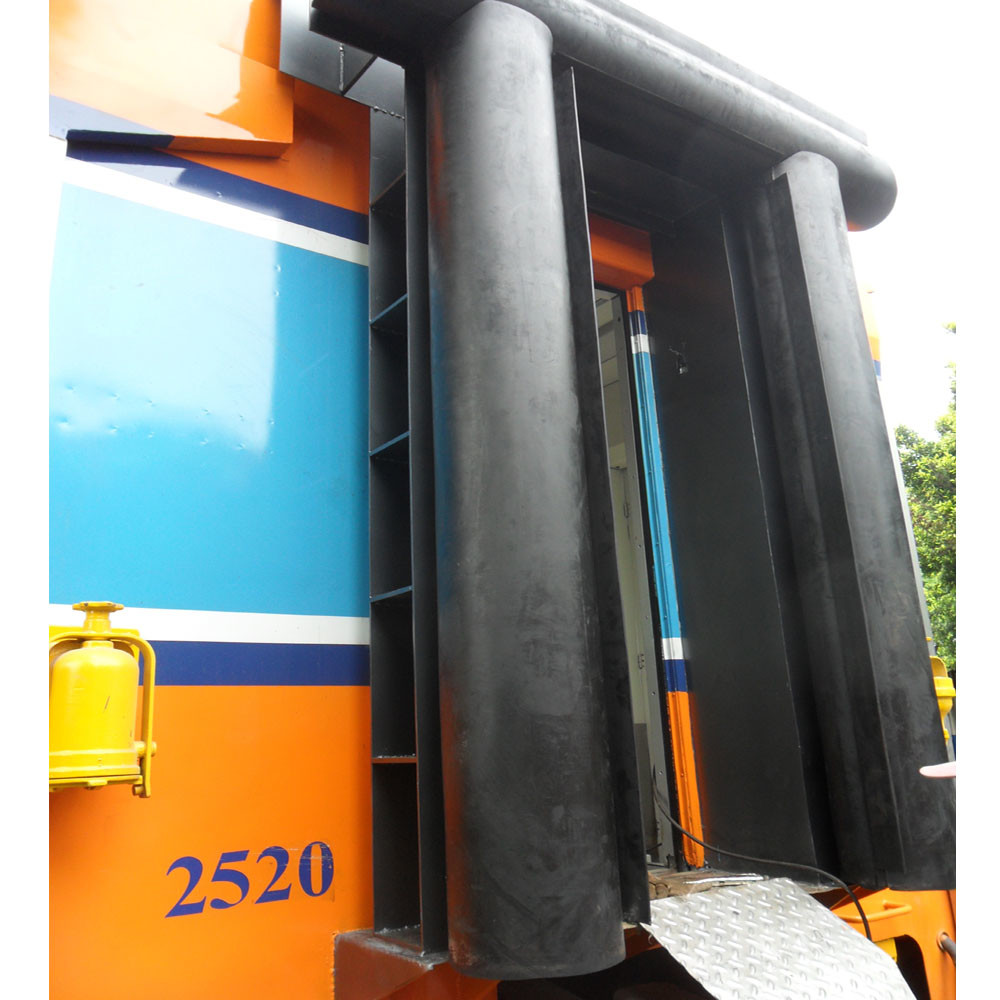

19MPa Railway Rubber Train Gangway UIC845 Flexible Tear Resistant
| Place of Origin | CHINA |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 10 SETS |
| Packaging Details | Carton |
| Delivery Time | within 45 days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Tubular Rubber Diaphragm | Standard | TB/T |
|---|---|---|---|
| Shape | Tube | Hardness | 73±5 Shore A |
| Material | NR And Steel | Working Temperature | -40℃-+40℃ |
| Relative Humidity | ≤95% | Altitude | ≤1500m |
| Maximum Wind Speed | ≤15m/s | Fire Resistance | DIN 5510-2 S1 |
| Highlight | 19MPa Railway Rubber Train Gangway,Rubber Train Gangway UIC845,UIC845 train end gangways |
||
Product Description
Railway Tubular Rubber Diaphragm Exported To Korean meet with UIC845
Product review
A gangway connection (or, more loosely, a corridor connection) is a flexible connector fitted to the end of a railway coach, protecting from windy and raining and enabling passengers to move from one coach to another without danger of falling from the train. It can be divided to following types:
Iron vestibule diaphragm
Rubber vestibule diaphragm
Pucker vestibule diaphragm
With capacity of supply 30000 sets in past 11 years to CRRC, we has been manufacturing tubular diaphragms using elastomers that meet and exceed fire and smoke toxicity standards.
We can used digital simulation to analyze the configuration of railway cars, especially radius of turning circle to ensure diaphragms have the right dimensions and perform optimally.
Product specification
| Standard | TB/T3094-2015 eqv UIC |
| Item | Standard data(on test piece) |
| Hardness (Shore A) | 73±5 |
| Tensile strength(MPa) | ≥19 |
| Elongation(%) | ≥440 |
| Resistand to tearing(KN/M) | ≥20*2 |
|
Flexibility |
-30℃≥85% 20℃≥85% 70℃≥85% |
| After aging for 7 days at 70℃ | 0-10 shore A |
| Resistance to Abrasion | ≤0.3(cm3/1.61km) |
|
Resistance to Ozone |
crake length≤10mm*3 crake depth≤1mm*4 |
| Resistance to fire | DIN 5510-2 S1 |
| flexural property(5*104) | No crack |
| brittleness temperature | ≤-50 |
Structure
The main components of rubber gangway are steel frame, rubber sheet which consists of horizontal and vertical tube, inner&outer steel pressing plate and fixing bolts
Frame material:Q235 Thickness:.
Tube Width
It can be customizedThe width of our horizontal rubber is 1650mm, which allows 1200mm width of door.
Tube Height
It can be customized. The longest size of our vertical rubber can reach 2100mm.
