E2055 E2009 Railway Forging Parts 60Si2Mn Railway Elastic Bar
| Place of Origin | CHINA |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 1000 |
| Price | Ngotiable |
| Packaging Details | Export packaging |
| Delivery Time | Ngotiable |
| Payment Terms | L/C, T/T |
| Supply Ability | 50000 pcs per month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Railway Elastic Bar,rail Spring Clip | Material | 60Si2Mn |
|---|---|---|---|
| Dimensions | Customer's Drawing | Type | E1809, E1817, E2005, E2007, E2055,E2009 |
| Color | Red, Black, Or Custom | Package | Wooden Pallets Or Custom |
| Surface Treatment | Blackening, Painting | ||
| Highlight | E2009 Railway Forging Parts,E2055 Railway Forging Parts,60Si2Mn Railway Elastic Bar |
||
Product Description
Product Overview

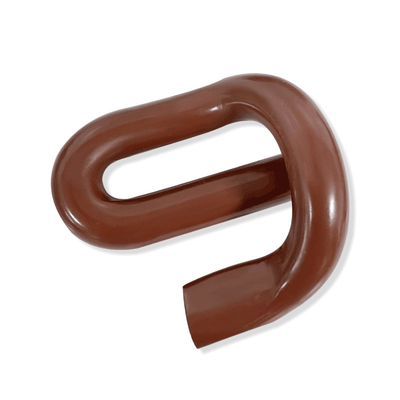

The Railway Forging Parts of rail elastic clips (also called rail clip, elastic rail clip )are used for fastening rails on both sides. The rail clips are usually made of forged spring steel, which are manufactured by hot forging process. The forged rail clips are considered to be better than other metal forming process due to most uniform microstructure.
The rail clip is a metal plate projecting over the base of a rail for bolting the rail to its support.
Rail clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. Usually rail clips are made of forged spring steel which is produced by hot forging process.
Through the bending and distortion of the elastic strip, the buckle pressure is generated to act on the track, effectively ensure the reliable connection between the rails for a long time, maintain the integrity of the track as far as possible, prevent the vertical and horizontal movement of the rail relative to the sleeper, and ensure the normal gauge, so as to ensure the running safety of rail vehicles.
Rail E-clips for any type of toe load and axle load requirements.
How rail clips works
Rail clips produce buckling force on the track through the bending and distortion of the rail clips, which effectively guarantees the reliable connection between the rails for a long time, maintains the integrity of the track as much as possible, prevents the rail from moving in the vertical and horizontal directions relative to the sleeper, and ensures the rail The distance is normal to ensure the safety of rail vehicles. In addition, because the train wheels and the rails are in rigid contact, vibration is unavoidable. The special elastic structure of rail clips also allows them to absorb the impact energy generated when vehicles pass by, and achieve the effect of shock absorption. Rail clips work under repeated alternating stresses. They bear various effects such as bending, torsion, fatigue and corrosion. When vehicles pass, they also bear extremely high instantaneous impact loads, so the performance requirements of rail clips are very strict.
Product Specification
| Product Name | Railway Elastic Bar,rail spring clip |
| Material | 60Si2Mn |
| Standard | GB/T1222 |
| Dimensions | Customer's drawing |
| Type | E1809, E1817, E2005, E2007, E2055,E2009 ect. |
| Application | Rail Fastening System |
| Color | Red, black, or custom |
| Surface treatment | Blackening, painting |
| Package | Plastic bags, wooden pallets or custom |
Advantage
- High strength and durability
- Good shock absorption elasticity
- Easy and quick installation and disassembly
- Not cause damage to the rail
- Safe elastic connection, which can fasten the steel rail continuously in vibration
Application
