Subway Type B Split Flexible Gangway

Place of Origin China
Brand Name HTR
Certification IRIS
Minimum Order Quantity 1pc
Price negotiable
Packaging Details carton box, wooden case /as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability 10,000 pcs/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Subway Type B Split Gangway Material Paulin; Aluminium Alloy
Dimensions 1300*900mm Or 1500*1900mm Waterproofing Leak-proof, Compliant With IEC61133
Support Method Self-supporting Fire Protection EN45545/BS6853/DIN5510 (optional)
Application Subway
Leave a Message
Product Description

Product Description

Product Introduction

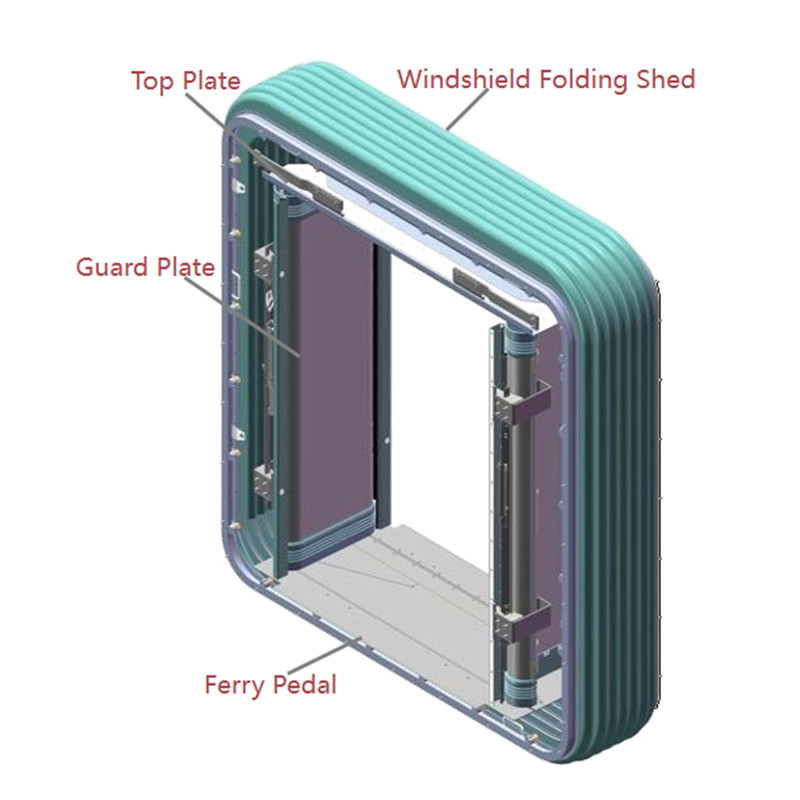

The main structure of the Subway Type B Gangway System consists of a folding roof, a one-piece guard plate, a roof panel, and a crossing board. The guard plate assembly includes a rotating mechanism and a cover plate. The rotating mechanism is installed on the end wall of the vehicle body via a mounting seat. Under the force of a spring inside the rotating mechanism, the protective plate extends and retracts to accommodate the movement of the vehicle body.

Specification
Product Performance
Reference Value
Curve Negotiation Capability
Radius 110m, S-curve
Passing Dimensions (Width * Height)
1300*900mm or 1500*1900mm
Distance Between Both Ends of the Car
520mm/660mm (end wall)
Fire Resistance
EN45545/BS6853/DIN5510 (optional)
Sound Insulation
≥than 36dB, 38dB, 40dB (optional)
Thermal Insulation
K ≤ 3W/(m·K)
Waterproofing
Leak-free, compliant with IEC61133
Airtightness
Pressure change from 3.6KPa to 1.35KPa, maintained for ≥100s
Support Method
Self-supporting
Operating Speed
Maximum 160 km/h

Subway Type B Split Flexible Gangway 0

Subway Type B Split Flexible Gangway 1

PRODUCT STRUCTURE

Subway Type B Split Flexible Gangway 2

PRODUCT INNOVATION

Subway Type B Split Flexible Gangway 3

Subway Type B Split Flexible Gangway 4
