Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels

  • Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels
  • Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels
  • Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels
Place of Origin China
Brand Name HTR
Certification IRIS
Minimum Order Quantity 1pc
Price negotiable
Packaging Details carton box, wooden case /as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability 10,000 pcs/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name EMU Gangway Material Paulin; Aluminium Alloy
Support Method Self-supporting Fire Protection EN45545/BS6853/DIN5510 (optional)
Application EMU High-speed Train Gangway Structure Olive-shaped, Double Bellows With Interior Panels
Weight 360kg Load Capacity Complies With AW3 & TB/T 3094-2015 Requirements
Leave a Message
Product Description

Product Description

Product Introduction
The double olive-shaped bellows (inner and outer layers) significantly improve sound and thermal insulation performance. Made of Hypalon rubber composite material, the bellows exhibit enhanced weather resistance and superior mechanical properties. The interior design enhances the aesthetic appeal of the gangway while providing passengers with a more comfortable travel experience.

Product Features
* Enhanced sound and thermal insulation performance
* Self-supporting, double-layer bellows with olive-shaped gangway system
* Features interior panels that align with cabin decor for improved aesthetics

Specification
Product Performance
Reference Values
Gangway Structure
Olive-shaped, double bellows with interior panels
Distance Between Carriage Ends
500mm
Clear Height
≥1900mm
Clear Width
≥1200mm
Service Life
Bellows service life: 12 years; Interior panels: 8-10 years; Metal components: 30 years
Sound Insulation
≥36dB(A)
Thermal Insulation
≤4.0W/(m²·K)
Load Capacity
Complies with AW3 & TB/T 3094-2015 requirements
Fire Protection
DIN5510-3
Weight
360kg

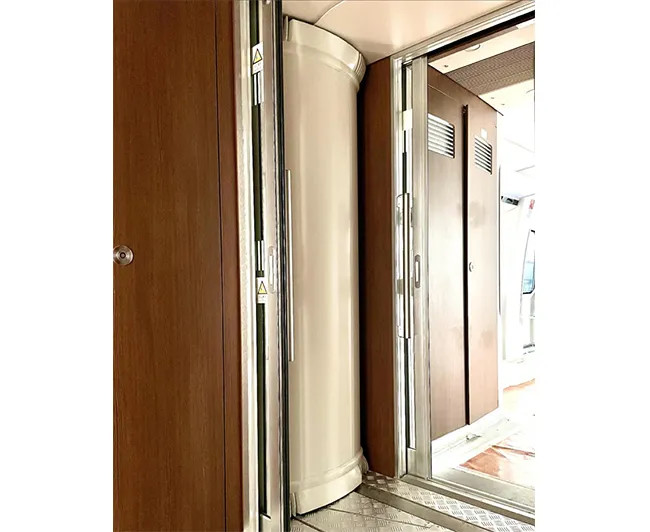

Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels 0

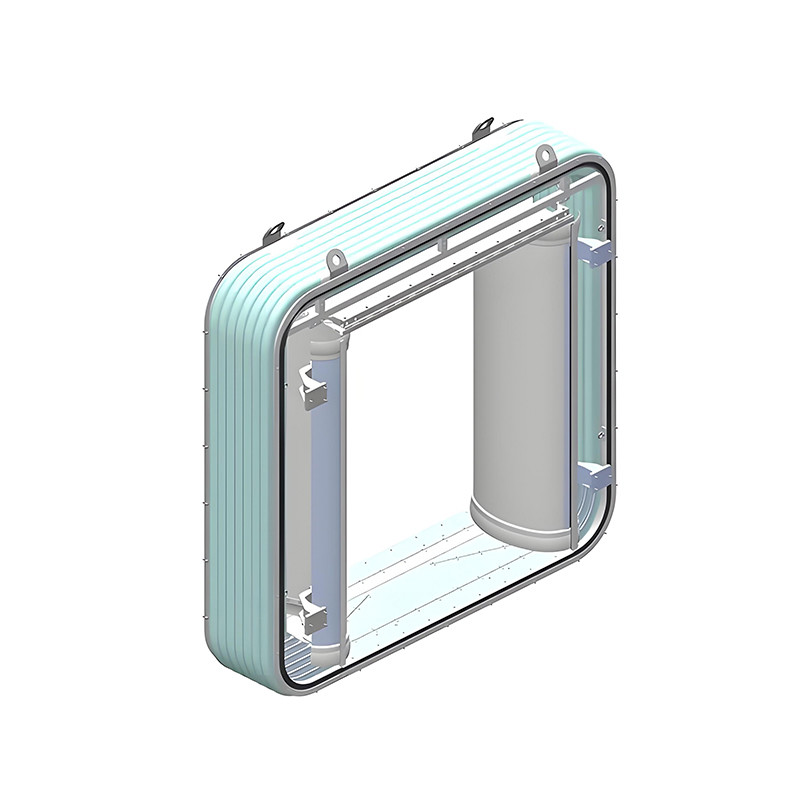

Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels 1
