Subway Type A Split Flexible Gangway End of Car System

  • Subway Type A Split Flexible Gangway End of Car System
  • Subway Type A Split Flexible Gangway End of Car System
  • Subway Type A Split Flexible Gangway End of Car System
  • Subway Type A Split Flexible Gangway End of Car System
  • Subway Type A Split Flexible Gangway End of Car System
Place of Origin China
Brand Name HTR
Certification IRIS
Minimum Order Quantity 1pc
Price negotiable
Packaging Details carton box, wooden case /as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability 10,000 pcs/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Subway Type A Split Gangway Material Paulin; Aluminium Alloy
Dimensions 1300*900mm Or 1500*1900mm Waterproofing Leak-proof, Compliant With IEC61133
Support Method Self-supporting Fire Protection EN45545/BS6853/DIN5510 (optional)
Application Subway
Highlight

Subway gangway flexible end system

,

Train gangway split type A

,

Flexible gangway car connection system
Leave a Message
Product Description

Product Description

Product Introduction
For subway gangway systems, the interior panel design provides passengers with a comfortable zone where aesthetically pleasing decorations create a relaxed and pleasant experience during brief journeys. The gangway system features quick disassembly and reconnection capabilities to car bodies, there by reducing operational costs and maintenance expenditures.

Specification
Product Performance
Reference Values
Curve Negotiation Capability
Radius 110m, S-curve
Passing Dimensions (Width * Height)
1300*900mm or 1500*1900mm
Distance Between Both Ends of the Car
920mm / 800mm
Fire Resistance
EN45545 / BS6853 / DIN5510 (Optional)
Sound Insulation
≥than 36dB, 38dB, 40dB (Optional)
Thermal Insulation
K ≤ 3W/(m·K)
Waterproofing
No leakage, compliant with IEC61133
Airtightness
Pressure change from 3.6KPa to 1.35KPa, maintained for ≥100s
Support Method
Coupler support
Operating Speed
Maximum 160 km/h

Subway Type A Split Flexible Gangway End of Car System 0

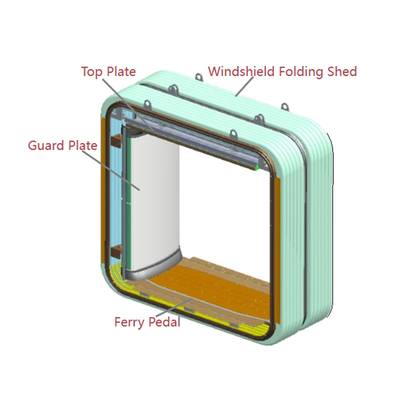

PRODUCT STRUCTURE

Subway Type A Split Flexible Gangway End of Car System 1

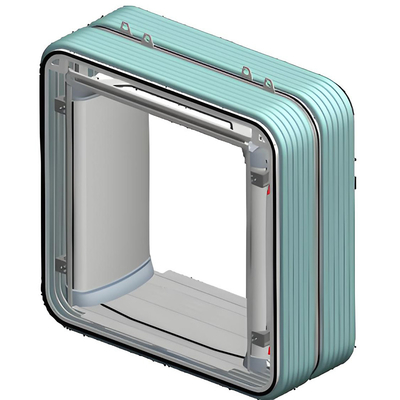

PRODUCT INNOVATION

Subway Type A Split Flexible Gangway End of Car System 2
