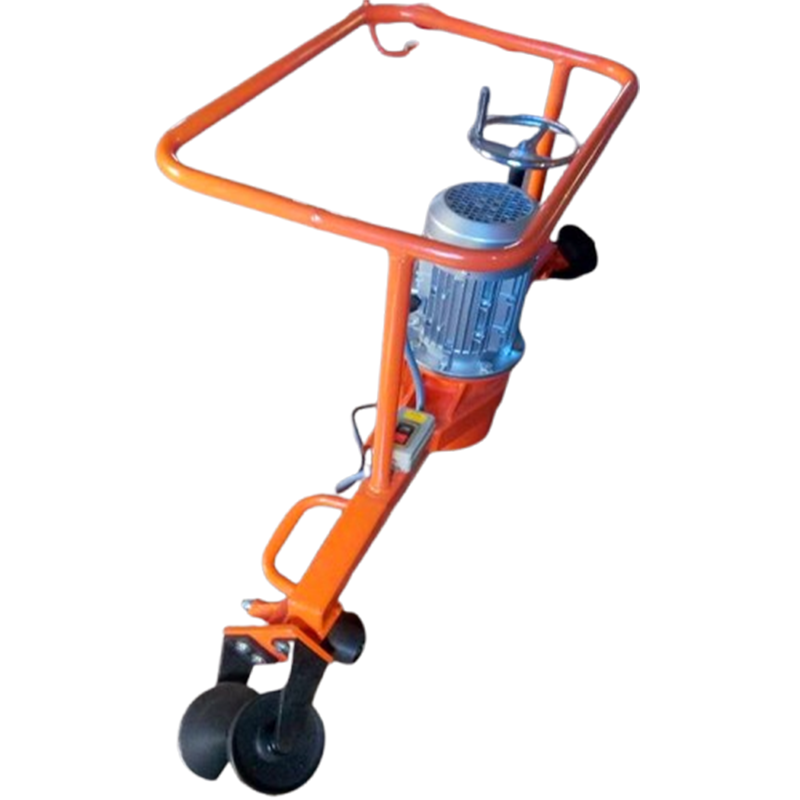

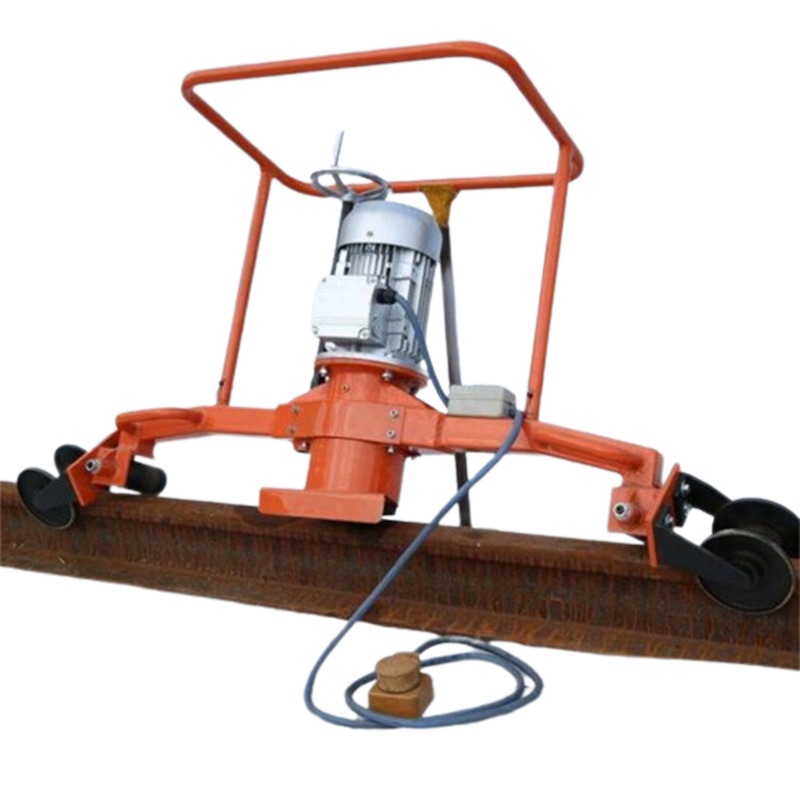

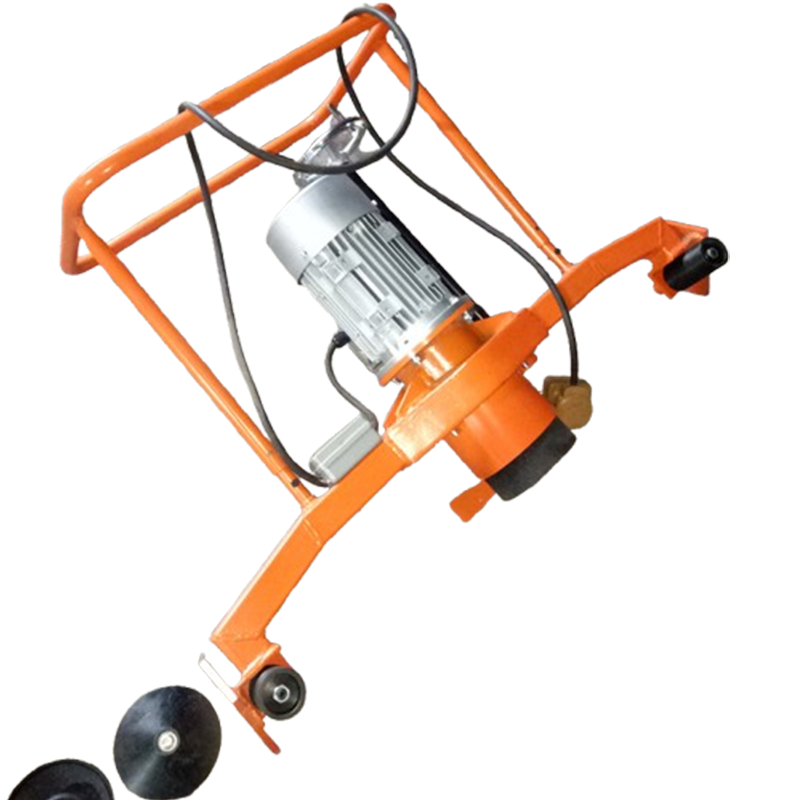

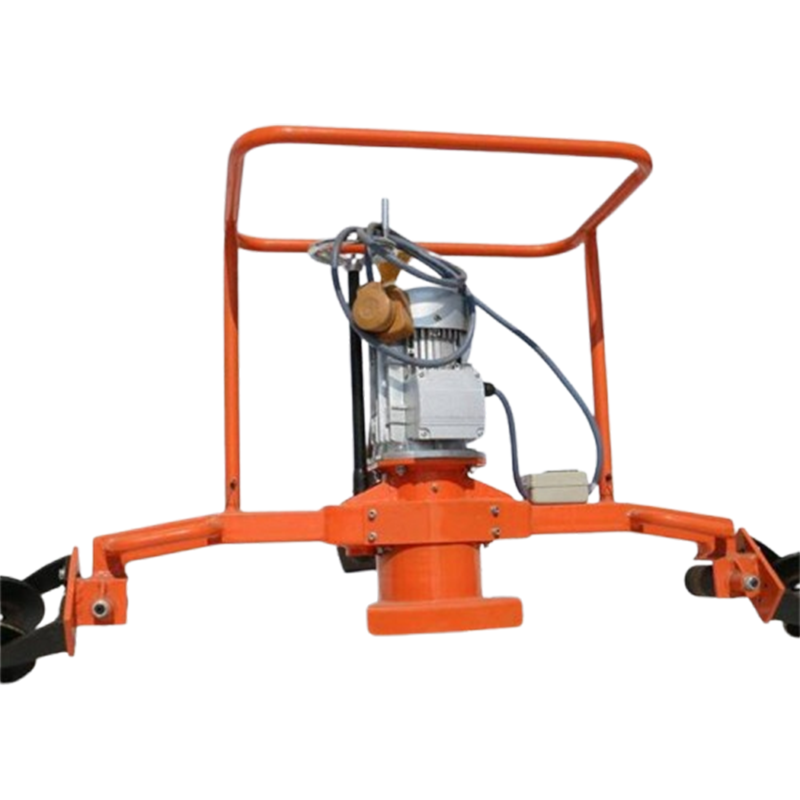

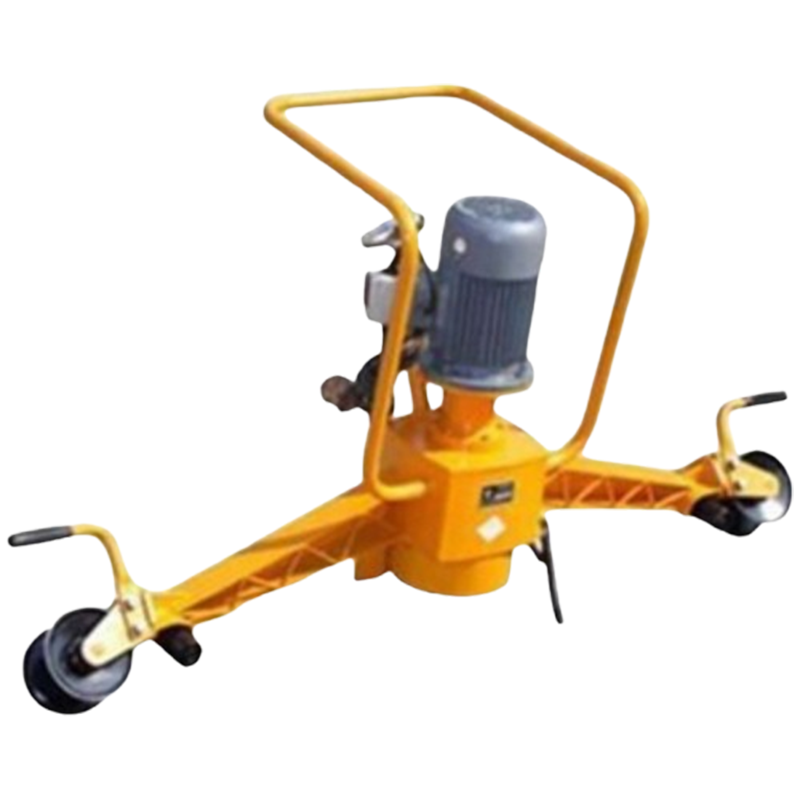

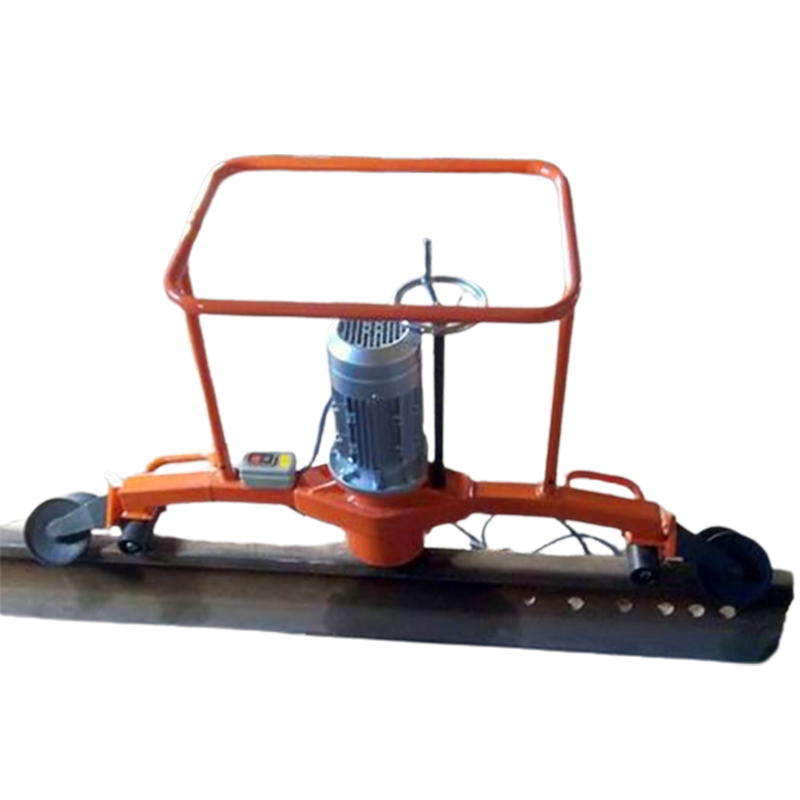

DGM-2.2 Rail Profile Grinder
| Place of Origin | CHINA |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 1000 |
| Price | Ngotiable |
| Packaging Details | Export packaging |
| Delivery Time | Ngotiable |
| Payment Terms | L/C,T/T |
| Supply Ability | 50000 pcs per month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Digital Track Gauge | Track Gauge | 1384-1470mm |
|---|---|---|---|
| Check Rail Gauge | 1364-1450mm | Back-to-back Distance | 1344-1430mm |
| Flangeway Clearance | 20-107mm | Cant | -200-+200mm |
| Display Screen | OLED | Power Voltage | DC3.4V~5.2V(Rechargeable Battery) |
| Working Temperature Range | -30℃～+55℃ | Insulation Performance | ＞1MΩ |
| Weight | ≤3kg | ||
| Highlight | rail profile grinder for railway tracks,DGM-2.2 rail grinder machine,rail track grinding tool with warranty |
||
Product Description
Product Description
This product is suitable for grinding 43kg/m-75kg/m rail welds, uneven joints, rail side fat edges, rail surface weld repairs, etc. It has the advantages of high operating efficiency, good grinding quality, simple operation, and convenient on and off the track. It is an essential tool for railway engineering overhaul, maintenance and emergency repair.
Product Features
· Efficient operation: It has high grinding efficiency and can quickly complete the grinding of rails.
· Easy operation: The equipment is lightweight, easy to operate, convenient to get on and off the track, and suitable for on-site operations.
· Versatility: It can grind the rail top and side at the same time, with flexible operation and can be adjusted from horizontal to vertical positions.
· Easy maintenance: The equipment has a simple structure and is easy to maintain. Regular injection of grease can keep it in good working condition.
|
Product Performance |
Reference Value |
|
Material |
Steel |
|
Motor power |
2.2kw |
|
Working voltage |
380V three-phase |
|
Color |
Yellow/Red |
|
Grinding wheel inclination |
90° |
|
Grinding wheel speed |
2860r/min |
|
Maximum feed |
70mm |
|
Grinding wheel size |
150*55*70 |
|
Roller span |
1000mm |
|
Dimension |
1200*420*900 |
|
Weight |
70kg |
