xPart Name | Secondary Vertical Oil Damper | Standard | TB/T1491 EN13802-2015 |
---|---|---|---|
Certificate | ISO 9001,CRCC, IRIS, EN15085-2 | Working Temperature | -40℃-+70℃ |
Size | Customized | Guarantee | 12 Months |
Highlight | Damper Railway Suspension System,CRCC Railway Suspension System,CRCC Railway vertical hydraulic damper |
Product Overview

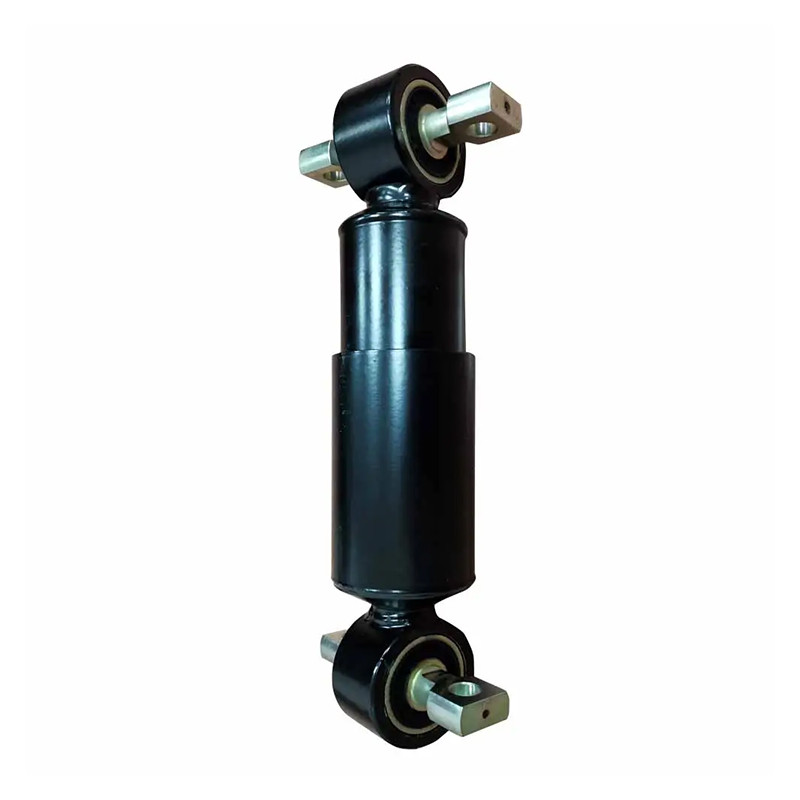

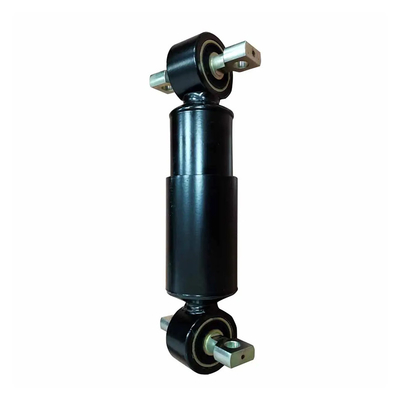

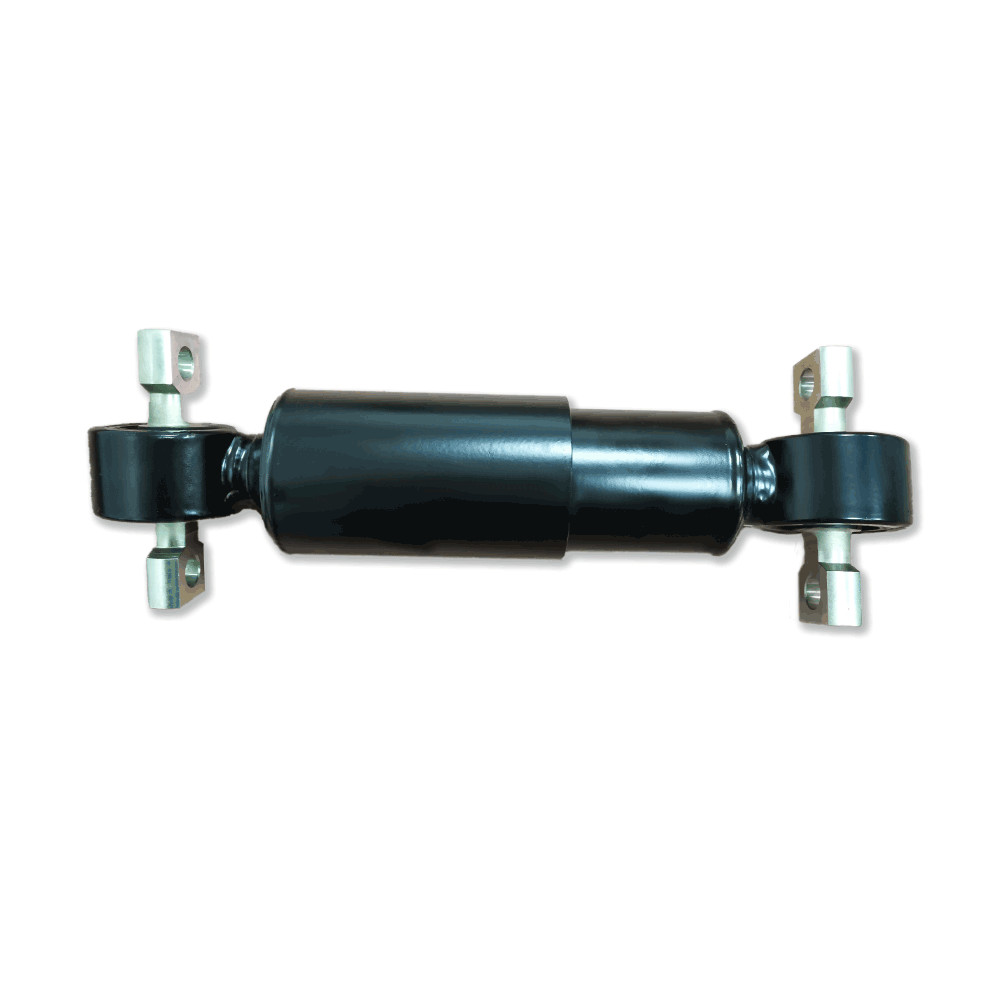

A hydraulic railway damper is a device designed to absorb and reduce shock impulses incurred when a railcar is in motion. Dampers also help reduce noise and track wear. They operate on diesel and electric locomotives, passenger mainline coaches, and diesel and electric multiple-unit trains. It can be divided into 4 categories. Primary Vertical damper, Secondary vertical/lateral damper,Yaw damper and Coupling damper. For here it is primary vertical damper(axle box damper),used to control vertical movement between axle box and bogie. I.E nodding vibration.
Product specification
Type | Secondary Vertical Oil damper of Suspension System |
Standard | TB/T1491 EN13802-2015 |
Certificate | ISO 9001,CRCC, IRIS, EN15085-2 |
Production ability | 10000 per month |
Material | steel and rubber |
Working temperature | -40℃-+70℃ |
Unsymmetry | ≤10% |
Size | Customized |
Design lifetime | 10 years or 2.4*106, which comes first |
Guarantee | 12 months |
Product advantage
· CRCC approved
· Meet TB/T1491-2015 and EN13802-2015
· Applied to train speed max to 160km/h
· More than 100 various size, and customzied is available.
· be able to withstand attack of sand, rain, snow, strong sunlight, corrosive air, salt atmosphere and ozone
· Good endurence to low frequency of 5*106and high frequency 6*106
Main Structure
1.rubber bush 2. Tube 3.Piston rod 4. Nut 5.Nut 6.Retainer 7.corrugated oil seal 8.Guide cover
9.Inner tube 10.Seat valve 11.Tube 12.o-seal 13.Piston 14.Piston ring 15.Bellow pot
Drawing of hydrauulic damper
Type
Lmin | Lmax | D1 | D2 | D3 | D4 | D5 | Thread |
280 | 380 | 95 | 83 | 73 | 84.5 | 40 | 20*1.5 |
398 | 583 | 95 | 83 | 73 | 84.5 | 41 | 20 |
398 | 583 | 95 | 83 | 73 | 84.5 | 41 | 20 |
321 | 441 | 95 | 83 | 73 | 84.5 | 41 | 20 |
321 | 441 | 95 | 83 | 73 | 84.5 | 41 | 20 |
315 | 450 | 95 | 83 | 73 | 84.5 | 41 | 20 |
330 | 480 | 95 | 83 | 73 | 84.5 | 41 | 20 |
330 | 480 | 95 | 83 | 73 | 84.5 | 41 | 20 |
330 | 480 | 95 | 83 | 73 | 84.5 | 41 | 20 |
330 | 480 | 95 | 83 | 73 | 84.5 | 41 | 20 |
330 | 480 | 95 | 83 | 73 | 84.5 | 41 | 20 |
330 | 480 | 95 | 83 | 73 | 84.5 | 41 | 20 |
398 | 583 | 95 | 83 | 73 | 84.5 | 41 | 20 |
413 | 573 | 95 | 83 | 73 | 84.5 | 41 | 20 |
413 | 573 | 95 | 83 | 73 | 84.5 | 41 | 20 |
292 | 412 | 95 | 83 | 73 | 70 | 29.8 | 16 |
330 | 480 | 95 | 83 | 73 | 84.5 | 41 | 20 |
315 | 450 | 95 | 83 | 73 | 84.5 | 41 | 20 |
Lmin | Lmax | D1 | D2 | L0 | d |
752 | 1287 | 95 | 83 | 58 | 24 |
430 | 630 | 95 | 83 | ||
350 | 530 | 80 | 70 | 108 | 14 |
350 | 550 | 80 | 70 | 108 | 14 |
410 | 590 | 95 | 83 | 108 | 14 |
325 | 435 | 95 | 83 | 140 | 18 |
430 | 590 | 95 | 83 | 120 | 18 |
430 | 590 | 95 | 83 | 120 | 18 |
430 | 590 | 95 | 83 | 120 | 18 |
388 | 553 | 95 | 83 | 109 | 34 |
390 | 550 | 95 | 83 | 120 | 18 |
390 | 550 | 95 | 83 | 120 | 18 |
390 | 550 | 95 | 83 | 120 | 18 |
366 | 469 | 95 | 83 | 96 | 18 |
357 | 527 | 96 | 83 | 108 | 14 |
400 | 585 | 95 | 83 | 96 | |
356 | 491 | 80 | 70 | 92 | 14 |
402 | 592 | 95 | 83 | 108 | 14 |
580 | 880 | 120 | 108 | 96 | M16 |
395 | 580 | 95 | 83 | 125 | 14 |
370 | 540 | 95 | 83 | 93 | 32.5 |
Connecting method
Application
Related products
There are other 3 categories as below:
Primay oil damper
it consists of vertical and lateral oil damper, which aims to control nodding vibration and bouncing vibration between carbody and bogie.
Yaw damper
Yaw dampers are a special feature of rail vehicles. They control the sine wave effects of the bogie, increasing safety at medium and high speeds.
Coupling damper
A coupling damper improves the quality and precision of your braking when towing by assisting with the gradual applying of the brakes both on and off.
