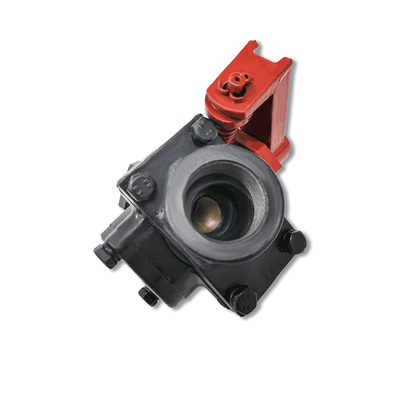

EN 14601-2011 Production Standard Cast Iron Angle Cock For Railway
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Certification | CRCC,UIC |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Export packaging |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50000 pcs per month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Railway Angle Cock | Material | Cast Iron |
|---|---|---|---|
| Dimensions | G1 1/4 | Production Standard | EN 14601-2011 |
| Colour | Black, Yellow, Red Or Custom | Application | Railway Air Brake System |
| Highlight | Railway Cast Iron Angle Cock,EN 14601-2011 Angle Cock |
||
Product Description
Left cast iron angle cock for railway with UIC standard
Angle cock are used at the the end of brake pipe on each vehicle to maintain flow of air in the air brake system during running.It comprises a valve movable between fully open and fully closed positions that brakes were ineffective due to between the locomotives and the first car of the train.
1. HOUSING S/A 1.1 HOSING 1.2 BUSH
2. SEALING 3. EXHAUST PLUG 4. SPHERICAL SEGMENT PLUG 5. LOCKING SCREW S/A 5.1 LOCKING SCREW 5.1 PIN 6. SEALING RING 7. O RING 8. FLANGE 9. RIVETING PIN 10 HANDE 11.PIN 12.WASHER 13. COMPERSSION SPRING 14.DOWEL PIN 15. HEX.HD.NUT(M10) 16. SPRING WASHER
17. HEX.HD.BOLT(M10×40)
Product Specification
| Railway angle cock | Railway angle cock,train cut off cock |
| Dimensions | G1 1/4,G1 |
| Production Standard | EN 14601-2011 |
| Colour | Black, Yellow, Red or Custom |
| Working pressure | -40℃~+60℃ |
| Working pressure | 1.1 Mpa |
Application
