Double Layer Insulating Train Car Openable Window 35kPa Safe Pressure
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 100pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C, T/T, Western Union, Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Double Layer Insulating Glass Fix Window | Standard | TB/T 3107-2011 |
|---|---|---|---|
| Application | Tram, Light Rail, High-speed Rail, Urban Rail | Storage Temperature | ﹣40℃ To 60 ℃ |
| Components | Aluminum Profile, Tempered Insulating Glass, Sealing Joint Strip Etc | Safe Pressure Difference | P3≥35 KPa |
| Highlight | Double Layer Insulating Train Car Window,Train Car Window 35kPa,outside train window 35kPa |
||
Product Description
Railway Coach Interiors Train Openable Window
Product overview

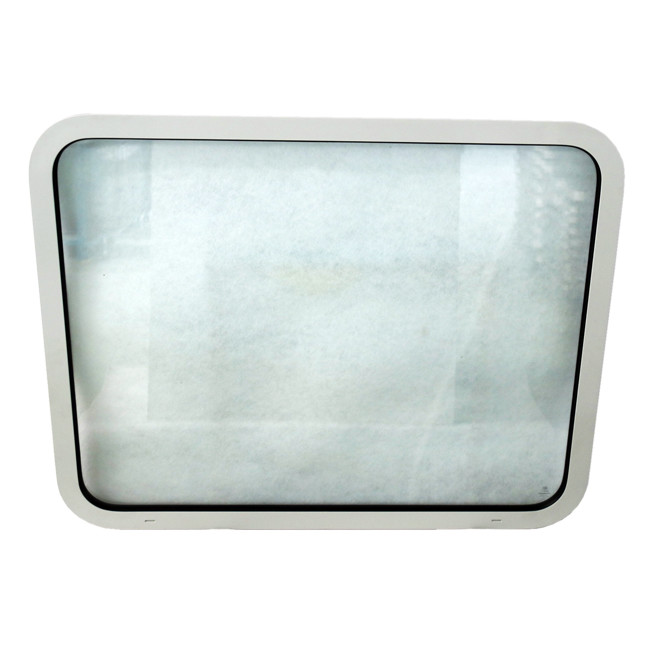

Fixed window is consisted of glass and a window frame. The window glass is bonded to the window frame by adhesive glue, and the window frame is bonded to the car sound by adhesive glue.
The window glass is double layer insulating glass, which has good heat insulation and sound insulation performance.
Product specification
| S.No. | Item | Value | |
| 1 | Product name | Fix window | |
| 2 | Standard | TB/T 3107-2011 | |
| 3 | Altitude | ≤2,500m | |
| 4 | Application | Tram, light rail, high-speed rail, urban rail | |
| 5 | Working temperature | non-alpine regions | ﹣25℃ to 40℃ |
| Alpine region | ﹣40℃ to 50℃ | ||
| 6 | Storage temperature | ﹣40℃ to 60 ℃ | |
| 7 | Components | Aluminum profile, tempered insulating glass, sealing joint strip etc | |
| 8 | Rainproof performance | Carry out the rain test, there should be no leakage. | |
| 9 | Water tightness | When the amount of water sprayed is 3 L/(m2·rain), the leakage pressure difference △P≥350 Pa. | |
| 10 | Wind pressure resistance | Deformation pressure difference | P1≥3 kPa； |
| Safe pressure difference | P3≥3 5 kPa. | ||
