ISO9001 Wagon Railway Braking System Automatic Derailment Brake
| Place of Origin | CHINA |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 500PCS |
| Price | Ngotiable |
| Packaging Details | Export packaging |
| Delivery Time | Ngotiable |
| Payment Terms | L/C, T/T |
| Supply Ability | 50000 pcs per month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Railway Wagon Automatic Derailment Brake | Dimensions | Customized |
|---|---|---|---|
| Colour | Yellow Or Customized | Working Temperature | -25℃-+65℃ |
| Application | Railway Wagons Or Rolling Stock | Certificate | ISO9001 |
| Package | Export Package | ||
| Highlight | ISO9001 Wagon Railway Braking System,Railway Braking System automatic derailment brake,ISO9001 train wagon parts |
||
Product Description

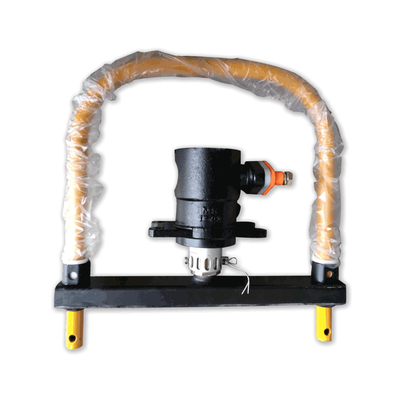

Railway wagon automatic derailment brake
The railway derailment brake device is mainly composed of automatic brake valve for railway freight car derailment, ball valve, tee and pipeline. The automatic braking device for railway wagon derailment is to add two branches to the main air pipe of the original air brake system of the railway wagon. When the railway wagon has a derailment accident, the brake valve stem is interrupted and the brake main pipe is connected to the atmosphere , Causing emergency braking of the train.
In order to effectively reduce the loss caused by derailment, a derailment brake device was developed. The device adopts a mechanical action mode to enable the brake pipe to communicate with the atmosphere in time when the vehicle is derailed, thereby causing the train to generate emergency braking. Avoid the expansion of derailment accidents.
| Product Name | Railway Wagon Automatic Derailment Brake |
| Dimensions | Customized |
| Colour | Yellow or customized |
| Working Temperature | -25℃-+65℃ |
| Application | Railway Wagons or Rolling Stock |
| Certificate | ISO9001 |
| Package | Export Package |
The derailment automatic brake device consists of derailment brake valve and pull ring. The derailment brake valve includes brake valve rod, actuating rod, spring piece, valve body and lock nut.
The pull ring consists of top beam (including top beam, limit cylinder, sheath and adjusting rod), spacer sleeve and pull ring. The end of the brake valve rod penetrates into the hole of the actuating rod, and there is a gap of 2 mm ± 0.5 mm between the end of the brake valve rod and the upper and lower parts of the hole respectively.
The actuating rod is supported on the valve body by two spring pieces symmetrically placed at the top and is pre tightened by the lock nut. The acting rod, locking nut, sheath and adjusting rod are connected by pins.
The adjusting rod and the top beam are welded. The top beam composition, the spacer sleeve and the pull ring are pin connected.
Advantage
· Increased safety for goods wagons, Coach, Rolling Stock persons and environment
· Reduce damage caused by derailment
· Issue of an immediate braking if an axle becomes derailed
· Low running costs
· High reliability
· Good corrosion resistance
Application
· Railway Wagons
· Railway Coach
· Rolling Stock
· ect.
