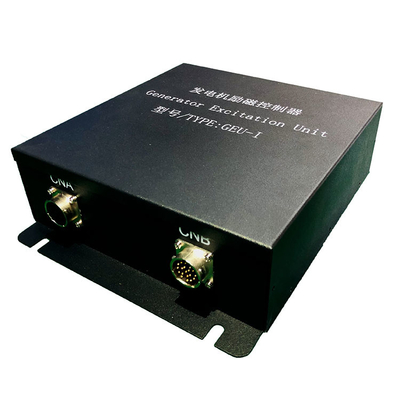

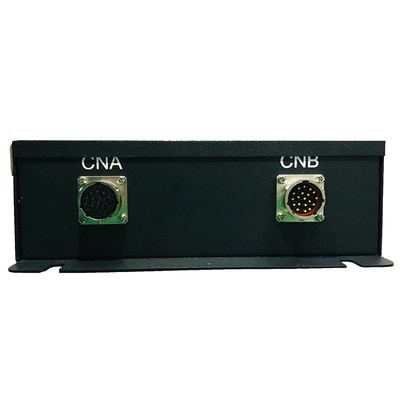

DC24V Excitation Controller Railway Related Equipment 20mA Output
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 1 set |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 30-60 , days, depends on QTY |
| Payment Terms | L/C, T/T, Western Union, Paypal |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | DC24V Excitation Controller | Storage Temperature | Room Temperature |
|---|---|---|---|
| Working Temperature | ﹣40℃ To 85℃ | Dimension | 243*247*80mm |
| Max. Output | 10A | Hz | 600 |
| Input Voltage | AC220V | Output Current | 20mA |
| Highlight | Excitation Controller Railway Related Equipment,Railway Related Equipment 20mA,Excitation Controller Railway electrical equipment |
||
Product Description
Railway electrical equipment DC24V Excitation Controller For Locomotive Spare Parts
Product overview
The main function of the excitation controller is to enable the diesel engine to achieve constant power within the full speed range, significantly improve the traction performance of the locomotive, and can also replace the original voltage regulator, stepper motor drive power supply, transition device, resistance brake controller, etc. , which greatly simplifies the locomotive system. In this way, the entire train can still run at a constant speed when road conditions and vehicle loads are constantly changing. It had been exported to Bangladesh and New Zealand.
Product specification
| S.No. | Item | Value |
| 1 | Working voltage | DC24V |
| 2 | Storage temperature | Room temperature |
| 3 | Working temperature | ﹣40℃ to 85℃ |
| 4 | Dimension | 243*247*80mm |
| 5 | Max. output | 10A |
| 6 | Hz | 600 |
| 7 | Input voltage | AC220V |
| 8 | Output current | 20mA |
| 9 | Ripple voltage | ≤1% |
| 10 | Load regulation | Standard value 0.1% |
| 11 | Voltage regulation | Standard value 0.1% |
Product advantages
Secure interlock function
Output voltage is continuously adjustable
High stability
Notes:
1. Read and understand the wiring schematic diagram, and connect the external lead wires according to the terminal wiring diagram.
2. When the connecting wire is connected to the terminal of the controller, the wire lugs or loops must be welded to ensure the contact area and good contact.
3. Pay special attention to the correctness of wiring.
