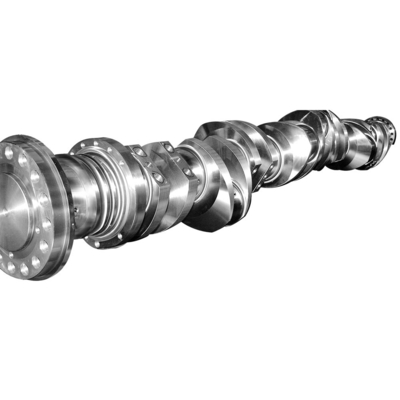

16PA4 Railway Forging Parts 42CrMo4 EMD Railroad Crankshaft
| Place of Origin | CHINA |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 10 PCS |
| Price | Negotiable |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 16PA4 Crankshaft | Applied Locos | EMD |
|---|---|---|---|
| Material | 42CrMo4 | Weight | 985KG |
| Roughless | Ra 0.6 | Flaw Detection | MT |
| Highlight | 16PA4 Railway Forging Parts,Railway Forging Parts EMD Crankshaft,EMD Railroad Crankshaft |
||
Product Description
Product Overview
A crankshaft is an essential part of the power transmission system. In which, the reciprocating movement of the piston is converted into the rotating movement by using the connecting rod.
A crankshaft consists of crankpins, crank webs (crank arms or cheeks), balancing weights, and main journals. The large end of the connecting rod is attached to the crankpin of the crankshaft.
- Crankpin
- Main journals
- Crank web
- Counterweights
- Thrust washers
- Oil passage and oil seals
- Flywheel mounting flange
Product Specification
| Name | 16PA4 Crankshaft | |
| Material | 42CrMo4 | |
| Hardness | Main bearing | 52-57HRC |
| Crankpin | 52-57HRC | |
| Roughness | Ra 0.6 | |
| Parallelism | ≤0.01/60 | |
| Journal Width | 70+0.05 | |
| Couplant | 30# oil | |
A crankshaft is usually manufactured of alloy steel by casting or forging process and is machined and grounded to give suitable journals for the connecting rod and main bearing.
It must be strong enough to take the thrust of the pistons during the power strokes without excessive distortion. Also, it must be carefully balanced to eliminate undue vibration resulting from the weight of the offset cranks.
