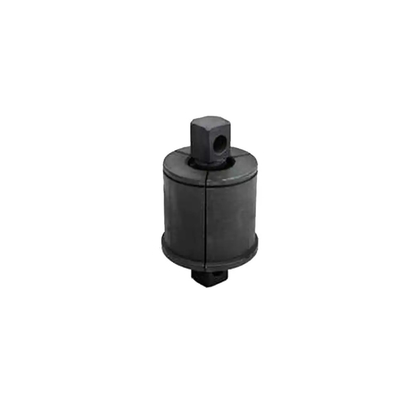

Railway Train Bogie Rubber Metal Spherical Bearings Node
| Place of Origin | CHINA |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 50 |
| Price | Negotiable |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Rubber Metal Spherical Bearing | Process | Vulcanization |
|---|---|---|---|
| Certification | ISO | Application | Shock Absorber Part |
| Highlight | Rubber Metal Spherical Bearings Node,Railway Train Bogie Bearings Node |
||
Product Description
Product Features and Applications:
Our company has developed a series of spherical joint products, which are widely used in locomotives, urban rail subways, and high-speed train sets. These products are primarily utilized in various components of railway vehicles, including drive systems, traction units, axle box positioning, motor suspension, gearbox suspension, and anti-snake damping systems.
|
ФD(mm) |
90 | 90 | 100 | 104 | 127 |
| Фd(mm) | 40 | 28.6 | 53 | 38 | 50 |
| L(mm) | 44 | 76 | 50 | 82.5 | 104.8 |
| Radial Stiffness(kN/mm) | 14 | 92.8 | 50 | 88 | 88 |
| Radial Load(kN) | 30 | 57.7 | 40 | 71.2 | 110.8 |
| Torsional Stiffness(kN/°) | 3 | 3.8 | 3.6 | 4.0 | 6.8 |
| Torsional Angle(°) | ±6 | ±8 | ±8 | ±8 | ±10 |
| Deflection Stiffness(kN/°) | 3 | 3.8 | 3.6 | 4.0 | 6.8 |
| Deflection Angle(°) | ±6 | ±8 | ±8 | ±8 | ±10 |
Main feature:
1. The metal steel sleeve, core shaft, and rubber are integrally bonded through vulcanization. The steel sleeve is available in both solid and split types.
2. Offers a variety of structural options to meet different requirements for radial, axial, and torsional rigidity.
3. Various pre-stress designs and manufacturing methods significantly enhance the fatigue life of the product.
4. Achieves wear resistance during operation and maintenance-free characteristics.
5. The outer diameter of the product is precisely tailored according to the installation holes, ensuring a snug fit during installation and easy replacement.
6. Exposed metal parts can be electroplated, blackened, phosphatized, or covered with other special coatings as required.
