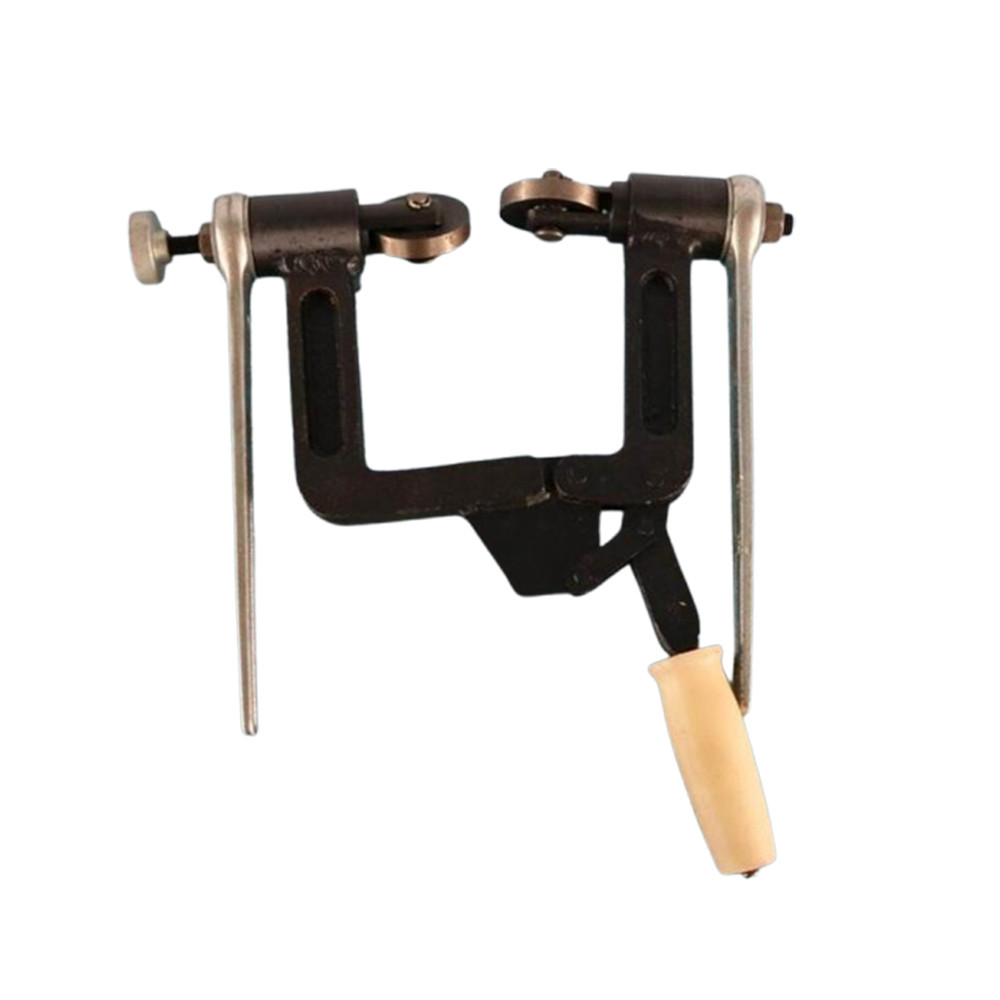

Reliable Rail Tool DJQ-2 Mechanical Double Sided Railway Chamfer
| Place of Origin | CHINA |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 1000 |
| Price | Ngotiable |
| Packaging Details | Export packaging |
| Delivery Time | Ngotiable |
| Payment Terms | L/C, T/T |
| Supply Ability | 50000 pcs per month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Rail Chamfer | Material | Steel |
|---|---|---|---|
| Dimensions | 180*50*1906 | Large Chamfer Diameter | 32 |
| Chamfer Large Cutting Torque | Tmax=10N M | Hand Lever Big Move Power | Fmax=55N(L=180) |
| Work Efficiency | One Chamfer /10 S | Weight | 1.5kg |
| Highlight | Double-sided Railway Chamfer,Reliable Rail Tool DJQ-2,Mechanical Double sided Railway Chamfer |
||
Product Description
Rail chamfer, also called railway rail chamfer, railway chamfer, according to the single side is divided into unilateral rail chamfer and bilateral rail chamfer. The double-sided chamfer is used to chamfer the hole in the waist of the railway rail. Bilateral chamfer its structure: It has a portal frame, consisting of the left bracket and the right bracket hinged by a set of four-link mechanism, the upper end of the locking lever is equipped with a handle, the left axle sleeve at the lower end of the left bracket is equipped with a left axle, the right axle is equipped with a disc blade at the right end, the left axle is equipped with a ratchet wrench at the left end, the right axle is equipped with a right axle sleeve at the lower end of the right bracket, the right axle is equipped with a compression spring on the right axle, the right axle is equipped with a disk blade at the left end, and the right axle is equipped with a disk blade at the left end. The right end of the right shaft is equipped with a ratchet wrench. The double-sided chamfer has the advantages of simple structure, convenient use, high working efficiency, disc-shaped blade, sharp and wear-resistant blade on the whole circumference, and long service life.
Product Introduction
1.It is composed of a door frame, a handle, a left and right shaft, a disc-shaped blade, a ratchet wrench and a compression spring.
1.It is composed of a door frame, a handle, a left and right shaft, a disc-shaped blade, a ratchet wrench and a compression spring.
2.The structure is simple, easy to use, and the blade is disc-shaped.
3.A tool for removing stress concentrations at sharp corners after rail drilling.
4.Chamfer the hole in the waist of the railway rail.
3.A tool for removing stress concentrations at sharp corners after rail drilling.
4.Chamfer the hole in the waist of the railway rail.
| Type | Rail Chamfer |
| Material | Steel |
| Dimensions (L x W x H) (mm) | 180*50*1906 |
| Brand Name | XR |
| Large chamfer diameter | 32 |
| Chamfer large cutting torque | Tmax=10N m |
| Hand lever big move power | Fmax=55N(L=180) |
| Work efficiency | One chamfer /10 s |
| Weight | 1.5kg |
