Train Locomotive Measuring Pressure HTS-80Z-1 Dual-needle Pressure Gauge
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Model Number | HTS-80Z-1 |
| Minimum Order Quantity | 10pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Range | 0 ~ 1600 KPa | Accuracy Class | Class 1.0 |
|---|---|---|---|
| Operating Temperature | -40°C To +70°C, With Relative Humidity Not Exceeding 95% | Temperature Influence | When Ambient Temperature Deviates From 20°C ± 5°C, Additional Error ≤ 0.4%/10°C |
| Illumination Voltage | DC 24V ±20% | Dielectric Strength | 1500V / 50Hz, Duration 1 Minute |
| Highlight | HTS-80Z-1 Dual-needle Pressure Gauge,Locomotive Measuring Pressure Gauge,HTS-80Z-1 Pressure Gauge |
||
Product Description
Products Description

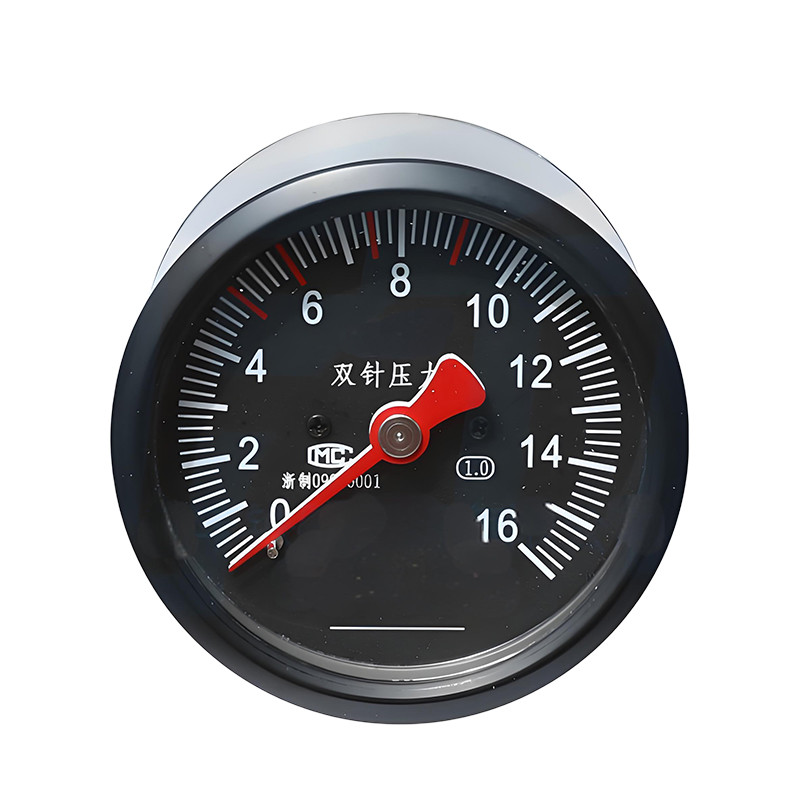

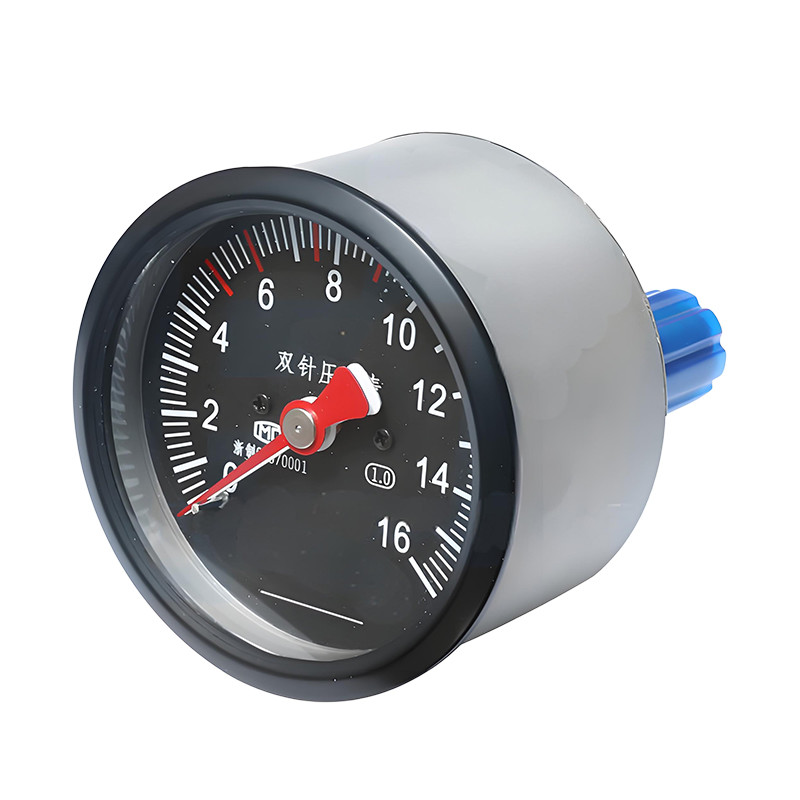

The dual-needle pressure gauge is primarily used for measuring pressure in locomotive air compressors, hydraulic systems, or air reservoirs. Its working principle is based on the deformation of a Bourdon tube under the action of medium pressure. This deformation is transmitted and amplified through a mechanical linkage, which drives the pointer to deflect along the dial scale, indicating the measured pressure value.

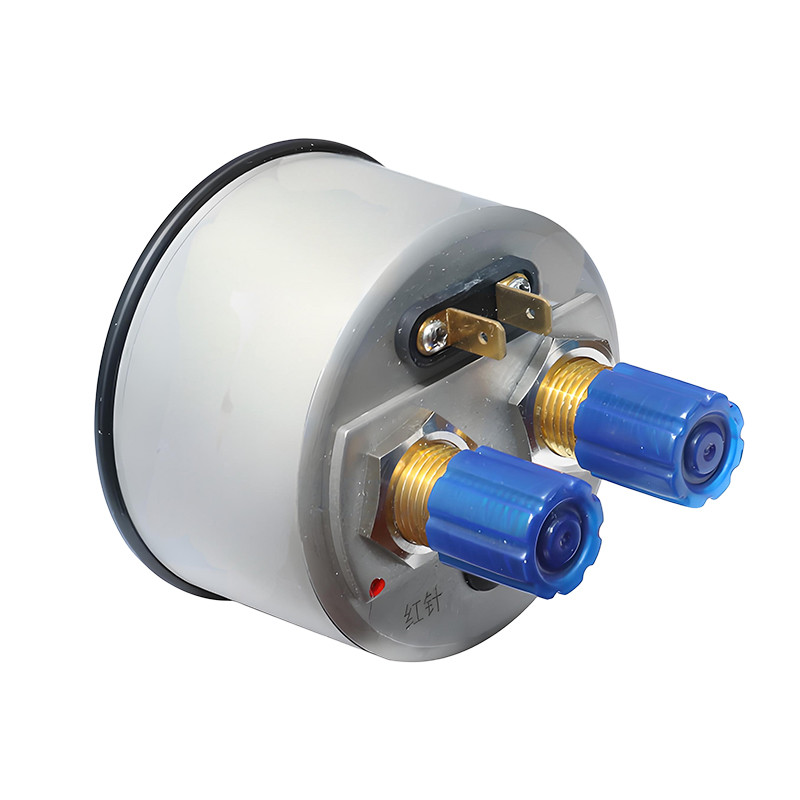

This pressure gauge features an axial structure and is capable of measuring two identical or different pressures simultaneously. It is equipped with a soft LED ring light positioned at the upper part of the dial, providing gentle illumination to facilitate clear reading during night-time operation.
Specification
|
Item |
Specification |
|
Measuring Range |
0 ~ 1600 kPa |
|
Accuracy Class |
Class 1.0 |
|
Operating Temperature |
-40°C to +70°C, with relative humidity not exceeding 95% |
|
Temperature Influence |
When ambient temperature deviates from 20°C ±5°C, additional error ≤ 0.4%/10°C |
|
Illumination Voltage |
DC 24V ±20% |
|
Dielectric Strength |
1500V / 50Hz, duration 1 minute |
|
Standard Compliance |
Complies with GB/T 1226-2010 (General Pressure Gauge Standard) |
