Railway Vehicle Locomotive Instrumentation HTS8/9a Single Needle Speedometer
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Model Number | HTS8/9a |
| Minimum Order Quantity | 10pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Accuracy | ±1.5% | Internal Illumination | LED Lighting, 24VDC Or 110VDC |
|---|---|---|---|
| Operating Environment | -25°C To +50°C, Relative Humidity Not Exceeding 95% | Insulation Strength | 1000V, 50Hz AC, Duration 1 Minute |
| Vibration Resistance | Class B | Dielectric Strength | 1500V / 50Hz, Duration 1 Minute |
| Highlight | HTS8/9a Single needle Speedometer,Single needle Speedometer |
||
Product Description
Products Description

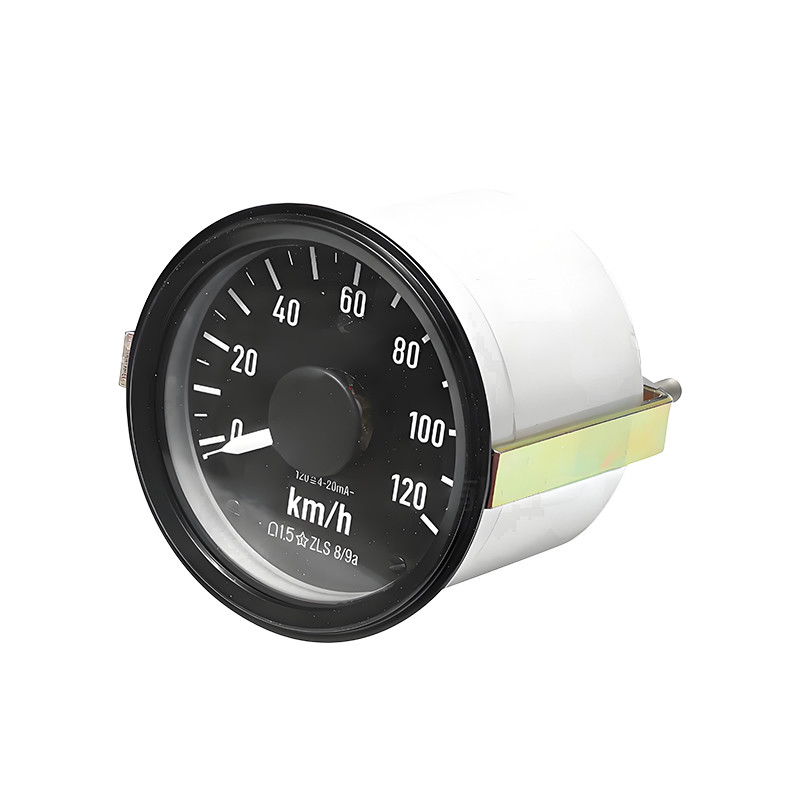

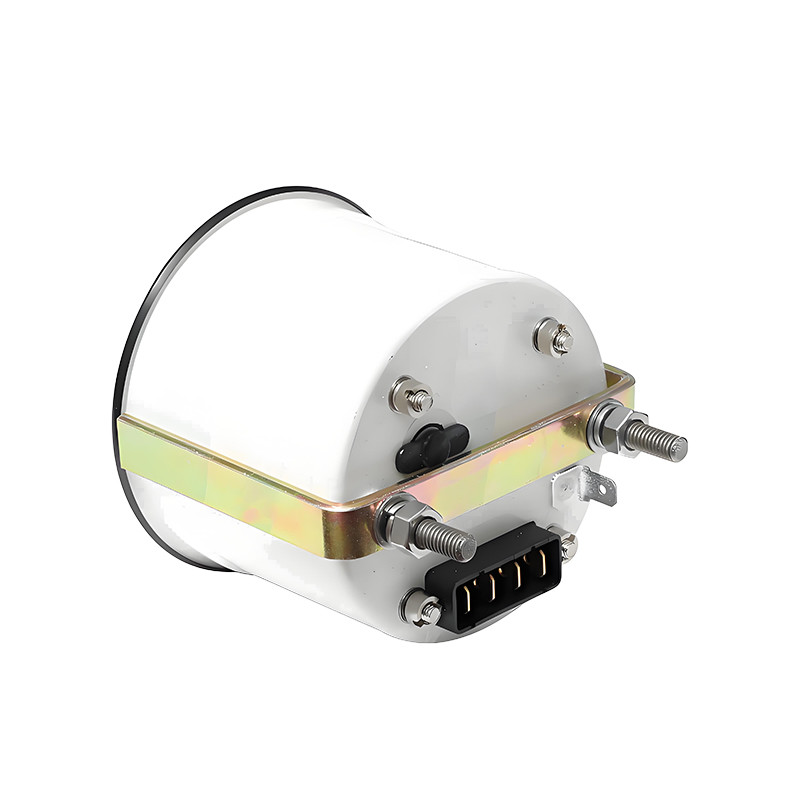

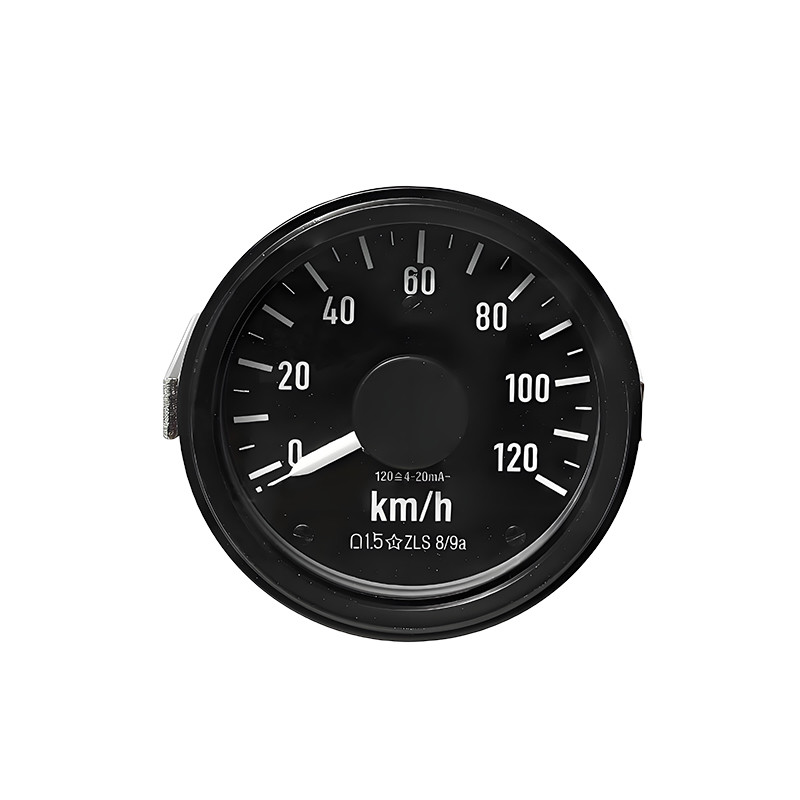

The speedometer consists of a movement mechanism, odometer, and casing. It features a robust structure, excellent shock resistance, and long service life. This instrument is used to indicate locomotive or EMU operating parameters such as speed, voltage, and current. It is widely applied across various metro and urban rail transit systems.
Specification
|
Item |
Specification |
|
Accuracy |
±1.5% |
|
Internal Illumination |
LED lighting, 24VDC or 110VDC |
|
Operating Environment |
-25°C to +50°C, relative humidity not exceeding 95% |
|
Insulation Strength |
1000V, 50Hz AC, duration 1 minute |
|
Vibration Resistance |
Class B (TB/T3058) |
|
Protection Rating |
Front panel: IP54, Connector: IP40 |
|
Weight |
Not more than 0.8 kg |
|
Connector |
0.8 × 6.3 plug-in terminal |
