IP54 Protection Rating Train Locomotive Equipment HT-807 Mechanical Tachometer for Industrial
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Model Number | HT-807 |
| Minimum Order Quantity | 10pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Range | Customizable (Typical: 0–3000 RPM Or As Required) | Accuracy | ±1.5% Of Full Scale |
|---|---|---|---|
| Working Temperature | -20°C To +50°C | Relative Humidity | ≤85% (Non-Condensing) |
| Protection Rating | IP54 | ||
| Highlight | IP54 Mechanical Tachometer,Industrial Mechanical Tachometer,Train Locomotive Mechanical Tachometer |
||
Product Description
Products Description

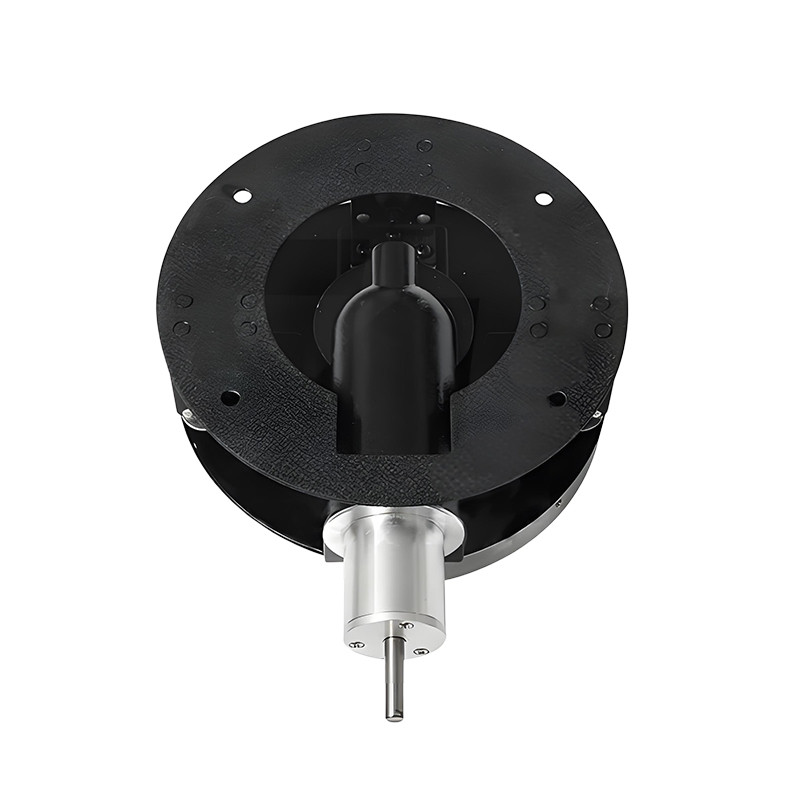

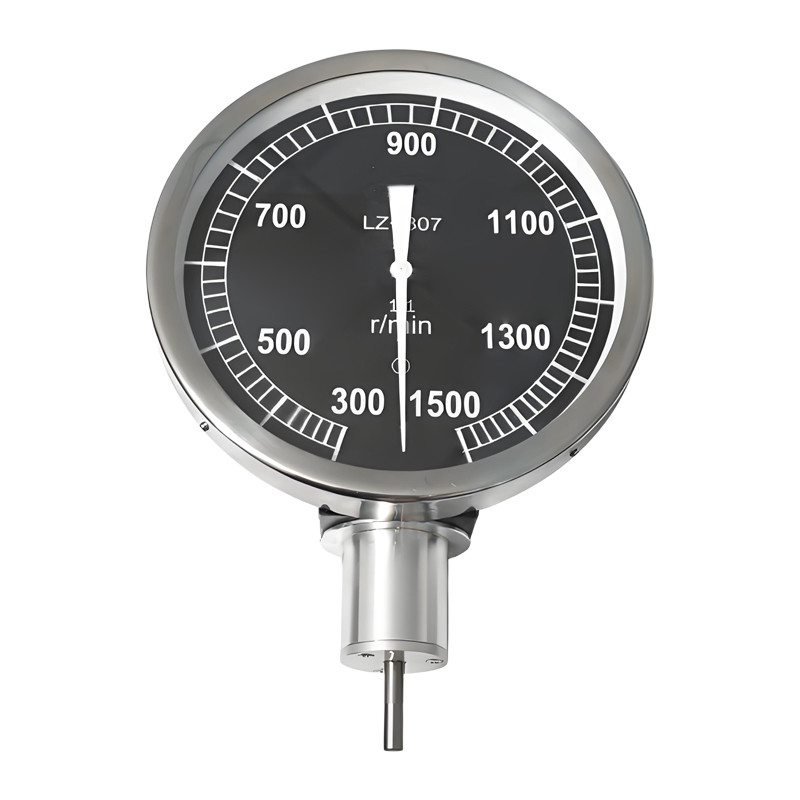

The HT-807 is a mechanical tachometer designed for real-time indication of rotational speed in locomotives, industrial equipment, or heavy machinery. It operates without requiring external power, relying on direct mechanical drive to display RPM via an analog pointer. With its rugged construction, high vibration resistance, and long service life, the HT -807 is suitable for harsh operating environments and widely applied in railway and industrial control systems.
Specification
|
Item |
Specification |
|
Measuring Range |
Customizable (Typical: 0–3000 RPM or as required) |
|
Accuracy |
±1.5% of Full Scale |
|
Working Temperature |
-20°C to +50°C |
|
Relative Humidity |
≤85% (Non-Condensing) |
|
Temperature Influence |
When ambient temperature varies from 20°C to -20~+50°C, additional error does |
|
Mounting Method |
Panel Mounting or Flange Mounting (Customizable) |
|
Vibration Resistance |
Meets General Mechanical Vibration Standards for Industrial Instruments |
|
Protection Rating |
IP54 (Front Panel, Optional Customization) |
|
Applications |
Locomotives, Rail Vehicles, Industrial Machinery, and Other Rotating Systems |
