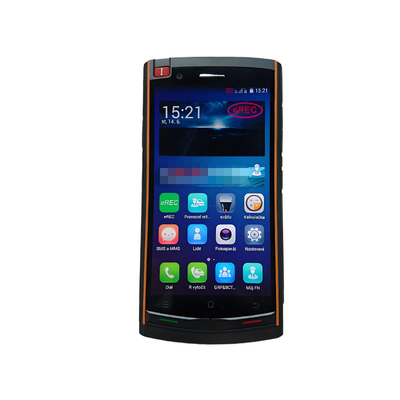

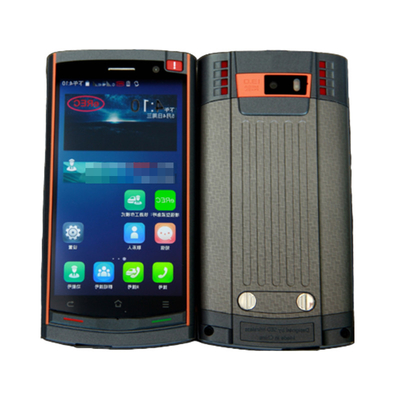

Compact 220g HTRH-100R GSM-R Digital Mobile Communication Handheld Terminal With 16GB NAND Flash
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Model Number | HTRH-100R |
| Minimum Order Quantity | 100pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimensions | 145mm*76mm*14.6mm | Screen Size | 5 Inches |
|---|---|---|---|
| Resolution | 1920*1080 | Pixel Density | 432 Ppi |
| PSRAM | 2GB | NAND Flash | 16GB |
| Weight | 220g | ||
| Highlight | Compact Mobile Communication Handheld Terminal,220g Mobile Communication Handheld Terminal |
||
Product Description
HTRH-100R Technical Advantages
●Supports GSM-R/LTE dual-mode, dual-SIM, dual-standby.
●Equipped with testing functions such as network detection, signaling tracing, frequency scanning, and log recording.
●Bundled with a powerful PC-based testing software suite.
●Includes communication interfaces to support secondary development of test software on a PC.
●Android-based customizable design tailored for railway applications.
●Physical keypad operable with gloves.
●Emergency calls can be initiated via a dedicated physical button.
●Supports group calls and point-to-point calls.
●Dedicated PTT (Push-to-Talk) key.
●Dual-microphone noise reduction technology.
●Ruggedized design with anti-slip features, compliant with IP54 standard for dust and water resistance.
●"Working Alone" alert function.
●SIM card lock functionality.
●Cell lock and cell force functions.
●Bluetooth-enabled.
Product Technical Indicators
|
Feature |
Details |
|
Phone Type |
GSM-R Smart Device |
|
Form Factor |
Bar-type full-touch smartphone |
|
Supported Language |
English, German, Chinese and Customizable |
|
Antenna Type |
Built-in |
|
Weight |
220g |
|
Dimensions |
145mm × 76mm × 14.6mm |
|
Network Type |
Dual SIM, Dual Standby |
|
Supported Frequency Bands |
- 2G: GSM 900/1800 |
|
Hardware Platform |
Quad-core 1.4GHz |
|
PSRAM |
2GB |
|
NAND Flash |
16GB |
|
Expandable Storage |
Micro-SD, up to 32GB |
|
Operating System |
Android OS 6.0.1 |
|
Target Users |
Railway administrators, station and onboard staff, field personnel |
|
Operating Environment |
- Temperature: -20℃ to +50℃- Humidity: 20%–95% |
|
Certifications |
CE, RoHS, PAHs, REACH, UIC EIRENE FRS/SRS |
|
Display |
- Screen Size: 5 inches |
