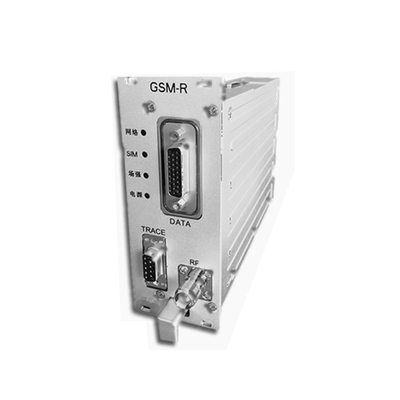

HTRL-72 GSM-R Onboard Terminal Average Input Current 500mA Three-Level Interference Rejection Average suppression 40dB
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Model Number | HTRL-72 |
| Minimum Order Quantity | 100pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimensions | 188.2 × 106 × 42.5 Mm | Weight | 895g |
|---|---|---|---|
| Voltage | 12V DC | Average Input Current | < 500mA |
| Maximum Input Current | 3A | Operating Temperature Range | -40°C To +105°C |
| Receiver Sensitivity | -107dBm | Three-Level Interference Rejection | Average Suppression > 40dB |
| Highlight | Three-Level Interference GSM-R Onboard Terminal,500mA GSM-R Onboard Terminal,GSM-R Onboard Terminal |
||
Product Description
Interfaces
● 48-pin Backplane Power Connector
● 26-pin Application Device Connector
● 9-pin RS232 Maintenance Port
● TNC ‘RX/TX’ RF Connector
● 4 LED Status Indicators
● Micro 3.0V / 1.8V SIM Card Reader
● Status Indicators: Power, Network, Field, SIM
System/Standards
● Supports GSM-R frequency bands in China, Europe, India, Australia, and other regions
● Complies with China Railway CIR 2.0 and 3.0 standards
● GSM Phase 2 / Phase 2+
● Mobile Station Class B Supported
● Output Power: 1W @ 900 MHz, 1W @ 1800 MHz
Technical Data
|
Feature |
Details |
|
Dimensions |
188.2 × 106 × 42.5 mm |
|
Weight |
895g |
|
Voltage |
12V DC |
|
Average Input Current |
< 500mA |
|
Maximum Input Current |
3A |
|
Operating Temperature Range |
-40°C to +105°C |
|
Receiver Sensitivity |
-107dBm |
|
Three-Level Interference Rejection |
Average suppression > 40dB |
