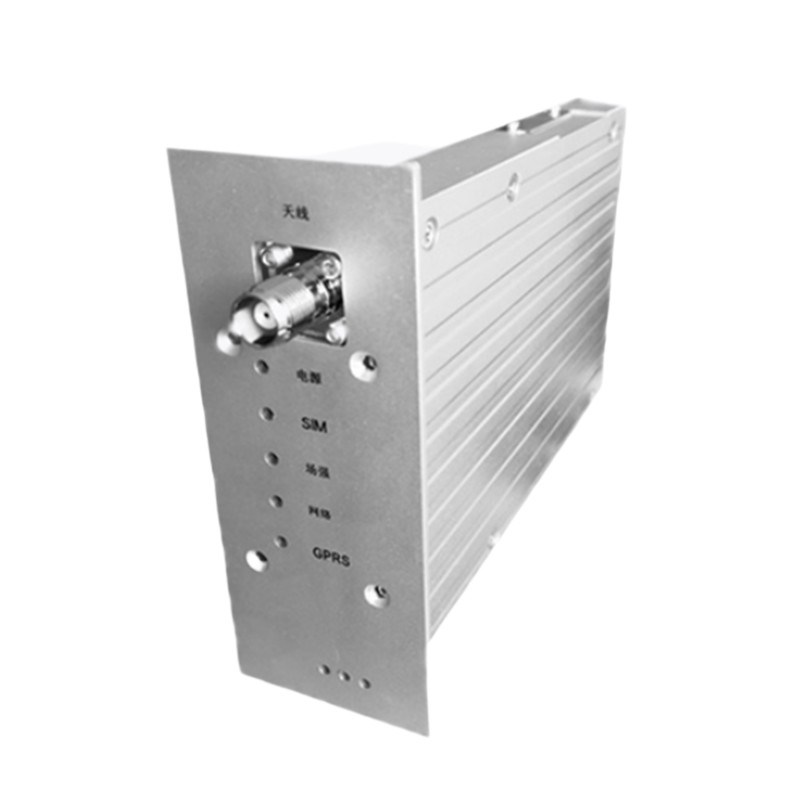

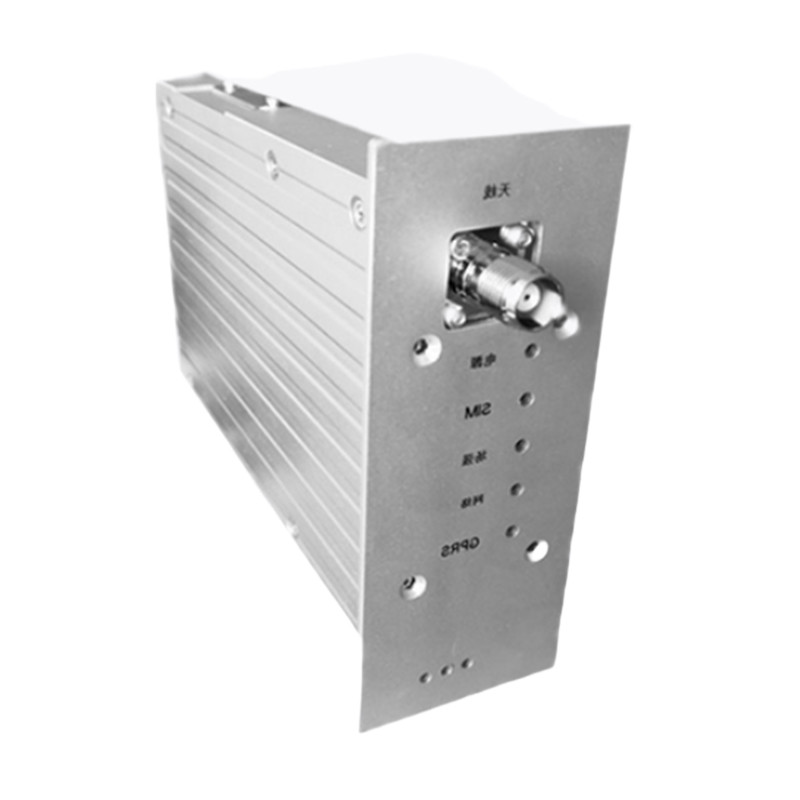

Highly Sensitive 651g HTRL-70 GSM-R Onboard Terminal With -107dBm Receiver Sensitivity
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Model Number | HTRL-70 |
| Minimum Order Quantity | 100pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimensions | 170.4mm × 108mm × 35.2mm | Weight | 651g |
|---|---|---|---|
| Voltage | 6.5–50V DC | Average Input Current | < 500mA |
| Maximum Input Current | 3A | Operating Temperature Range | -40°C To +105°C |
| Receiver Sensitivity | -107dBm | Three-Level Interference Rejection | Average Suppression > 40dB |
| Highlight | HTRL-70 GSM-R Onboard Terminal,GSM-R Onboard Terminal,-107dBm GSM-R Onboard Terminal |
||
Product Description
Interfaces
● 96-pin DIN 41612 backplane connector
● Service & Maintenance Port: USB mini-B
● TNC ‘RX/TX’ Wireless Interface
● 5 LED Status Indicators
● Micro 3.0V/1.8V SIM Reader
● Status Indicators: Power, Network, Field, SIM, GPRS
System/Standards
● Supports multiple regions, including China, Europe, India, and Australia GSM-R frequency bands
● Supports Chinese Railway CIR 2.0 and 3.0 standards
● GSM Phase 2 / Phase 2+
● GPRS multi-slot class 8 (8 slots), class 10 (2 uplink)
● Mobile Station Class B supported
● Output Power: 1W @ 900 MHz, 1W @ 1800 MHz
● AT command control via RS232 or USB interface
Voice Standards
● 3 Codec Options: HR, FR, EFR
● Non-ASCII Applications: Supports AMR
Data Services
● GPRS Class 8 (8 slots), Class 10 (2 uplink)
● Supports PBCCH
● Coding Schemes: CS1–CS4
● CSD Data Transmission: Transparent and Non-transparent Modes
● Built-in PPP Protocol for GPRS Data Transmission
● Fax: Group 3, Class 2
● Supported Network Protocols: TCP, UDP, HTTP, FTP, SMTP, POP3
Supplementary Services
● Calling Line Identification Presentation (CLIP) and Connected Line Identification Presentation (COLP)
● Call Forwarding (CF), Call Waiting (CW), Call Hold (HOLD)
● Multiparty (MPTY), Call Barring
● Non-standard Value-Added Services (USSD)
● User-to-User Signaling Type 1 (UUS1)
● Enhanced Multi-Level Precedence and Preemption (eMLPP)
● Closed User Group (CUG)
Railway Group Communication Functions
● VGCS (Voice Group Call Service)
● VBS (Voice Broadcast Service)
● eMLPP (Enhanced Multi-Level Precedence and Preemption)
● Supports FN (Functional Number)
● Supports PFN (Presentation Functional Number)
● REC (Railway Emergency Call)
Technical Data
|
Feature |
Details |
|
Dimensions |
170.4mm × 108mm × 35.2mm |
|
Weight |
651g |
|
Voltage |
6.5–50V DC |
|
Average Input Current |
< 500mA |
|
Maximum Input Current |
3A |
|
Operating Temperature Range |
-40°C to +105°C |
|
Receiver Sensitivity |
-107dBm |
|
Three-Level Interference Rejection |
Average suppression > 40dB |
