Train Control System Cable Connection Railway Trackside Component Balise
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 100pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Balise | Size | Reduced Size According To Subset-036 |
|---|---|---|---|
| Voltage | 6.5–50V DC | Dimensions | 450*320*55 Mm (65 Mm Max) |
| Weight | 5.2 Kg | Debris Class | Class A According To Subset-036 |
| Temperature Range | -40°c / +70°c Operative | Protection Degree | IP68 |
| Telegram Configuration | Via Air-Gap With Sigma Configuration Tool | Balise Silencing | Via Dedicated Metallic Shield |
| Cable Connection | Metal Connector, Bayonet Coupling Mil-C-5015 | Max Allowed Cable Length | Certified Up To 500 M; Tested Up To 5,000 M |
| Highlight | Train Control System Cable,Balise Train Control System,Trackside Component Train Control System |
||
Product Description
Product Description

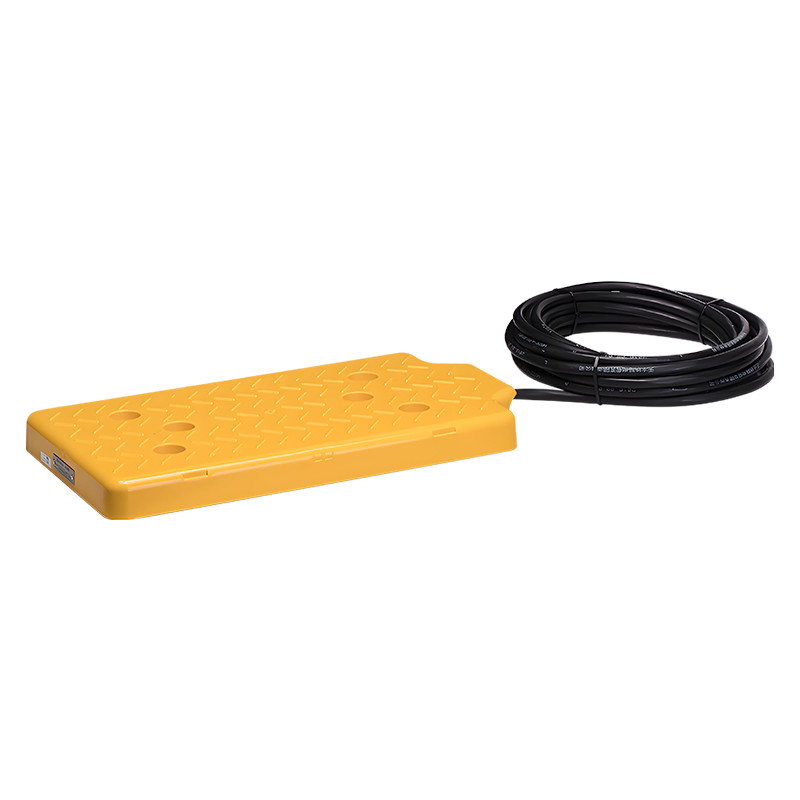

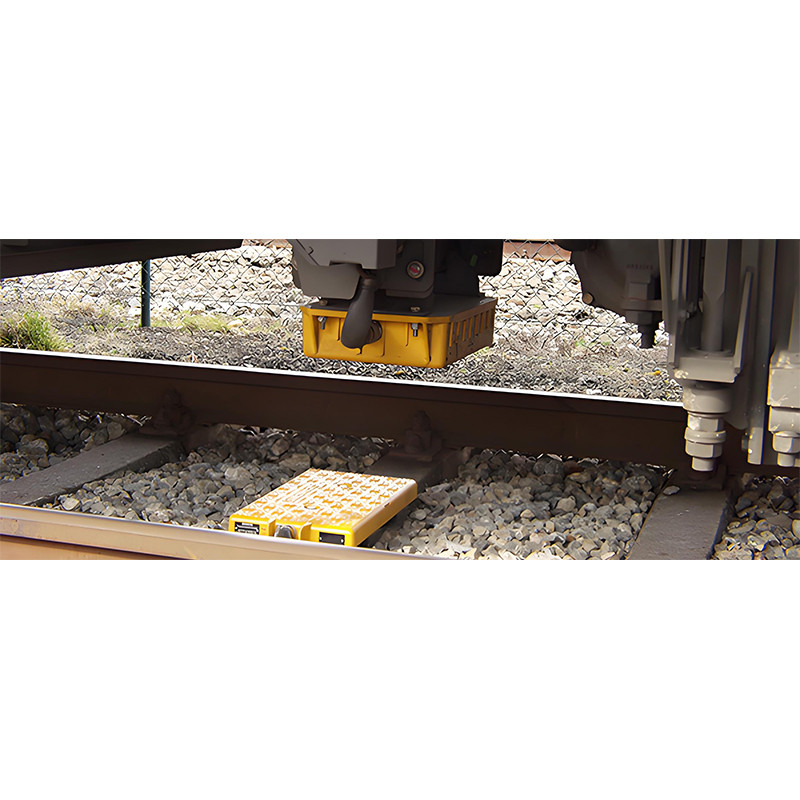

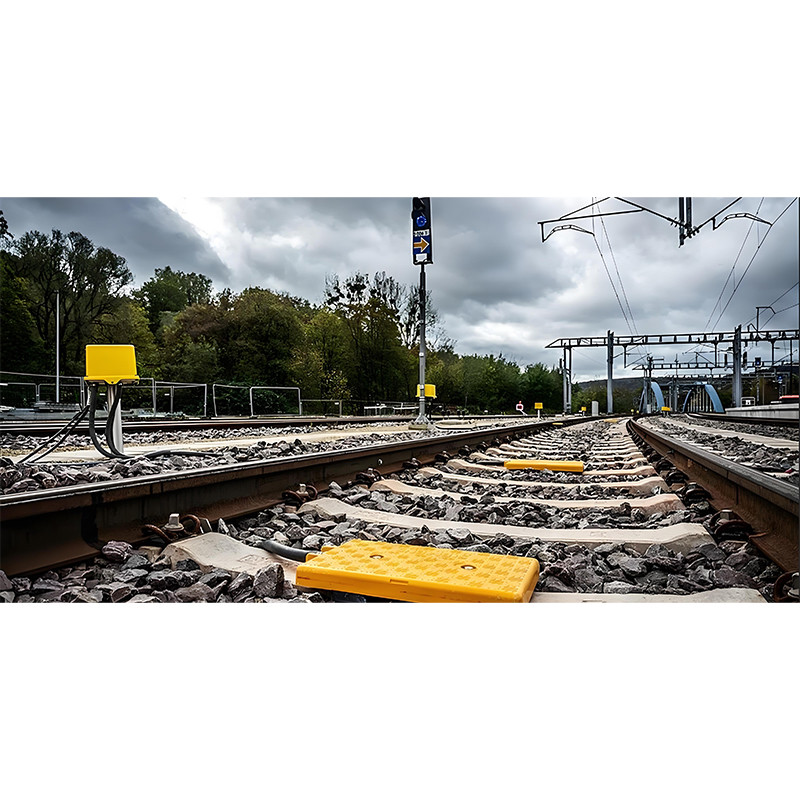

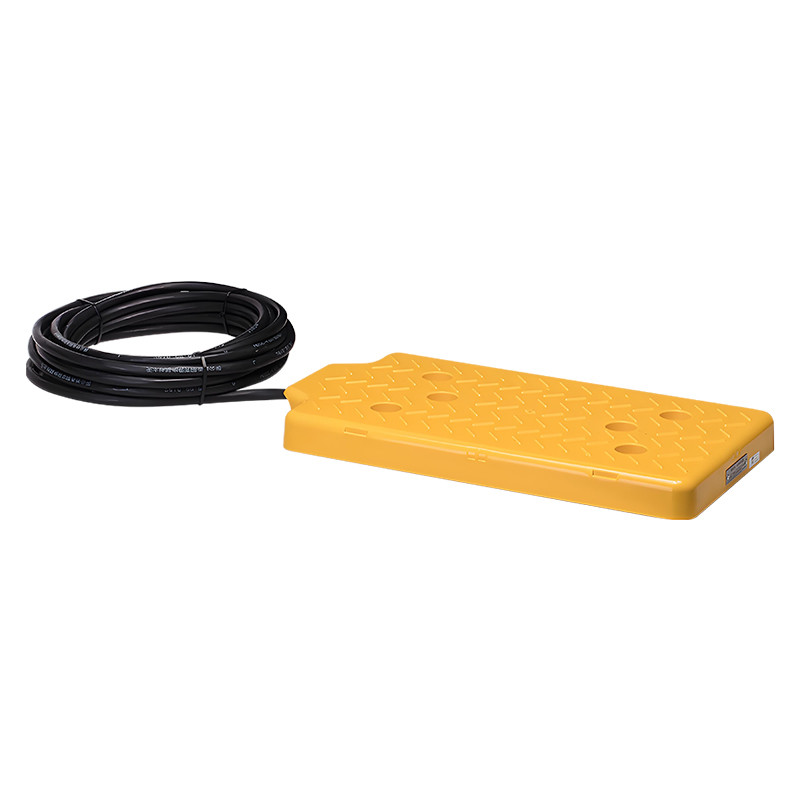

The balise is a key trackside component of the train control system, typically installed at the center of the track. It receives power signals from the Balise Transmission Module (BTM) antenna and communicates with the BTM using magnetic induction to transmit telegrams. Xinrail Tech offers two types of balise products: switchable balises and unswitchable balises.
· The switchable balise receives real-time telegrams from the Lineside Electronic Unit (LEU) and relays them to the onboard equipment. In the event of communication failure with the LEU, it automatically transmits a pre-configured default telegram stored internally.
· The unswitchable balise, by contrast, transmits a fixed telegram stored in its memory, without receiving updates from the LEU.
Certifications
· Comply with ERTMS/ETCS Subset-036/Subset-085
· SIL4 certificate from Ricardo Certification
· SIL4 certificate from Ricardo Certification
Specification
| Specification | Description |
| Size | Reduced size according to Subset-036 |
| Dimensions | 450*320*55 mm (65 mm max) |
| Weight | 5.2 Kg |
| Debris Class | Class A according to Subset-036 |
| Temperature Range | -40°C / +70°C Operative |
| Protection Degree | IP68 |
| Telegram Configuration | Via air-gap with Sigma Configuration Tool |
| Balise Silencing | Via dedicated metallic shield |
| Cable Connection | Metal connector, bayonet coupling MIL-C-5015 |
| Max Allowed Cable Length | Certified up to 500 m; tested up to 5,000 m with standard LEU |
