Track Occupancy Detection System HTJZ-A1 Railway Axle Counting System Outdoor Equipment
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Model Number | HTJZ-A1 |
| Minimum Order Quantity | 100pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Railway Axle Counting System Outdoor Equipment | Material | Metal |
|---|---|---|---|
| Protection | IP66/IP68 | Part | Sensor/Trackside Electronic Unit |
| Minimal Board Types | Magnetic Head Board | ||
| Highlight | HTJZ-A1 Railway Axle Counting System,Outdoor Track Occupancy Detection System,Axle Counting Track Occupancy Detection System |
||
Product Description
Track Occupancy Detection System HTJZ-A1 Railway Axle Counting System Outdoor Equipment
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Railway Axle Counting System Outdoor Equipment |
| Material | Metal |
| Protection | IP66/IP68 |
| Part | Sensor/Trackside Electronic Unit |
| Minimal Board Types | Magnetic Head Board |
System Overview
The HTJZ-A1 Axle Counting System is a fail-safe track occupancy detection system designed to accurately determine whether a track section is occupied or clear. The system comprises an indoor central processing unit and outdoor axle counting points, providing reliable input for railway signal control systems through precise wheel axle counting.
Technical Advantages
- Simplified Structure: Distributed architecture with modular control for streamlined system design
- Fewer Boards: Minimal board types and reduced quantity for lower complexity and easier inventory
- Flexible Configuration: Adaptable software and hardware for diverse application needs
- Easy Installation: Clamp-based mounting reduces labor and installation time
- Convenient Maintenance: Precise fault localization and quick board replacement
- Minimal Fault Impact: Distributed architecture limits faults to individual sections
- Network Communication: Built-in interfaces reduce relay wiring needs

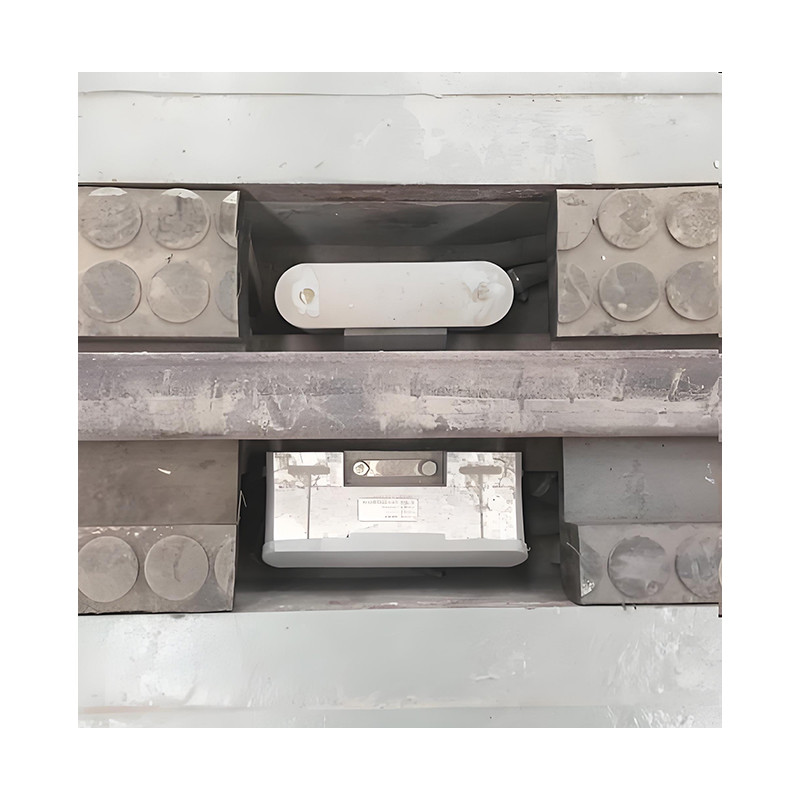

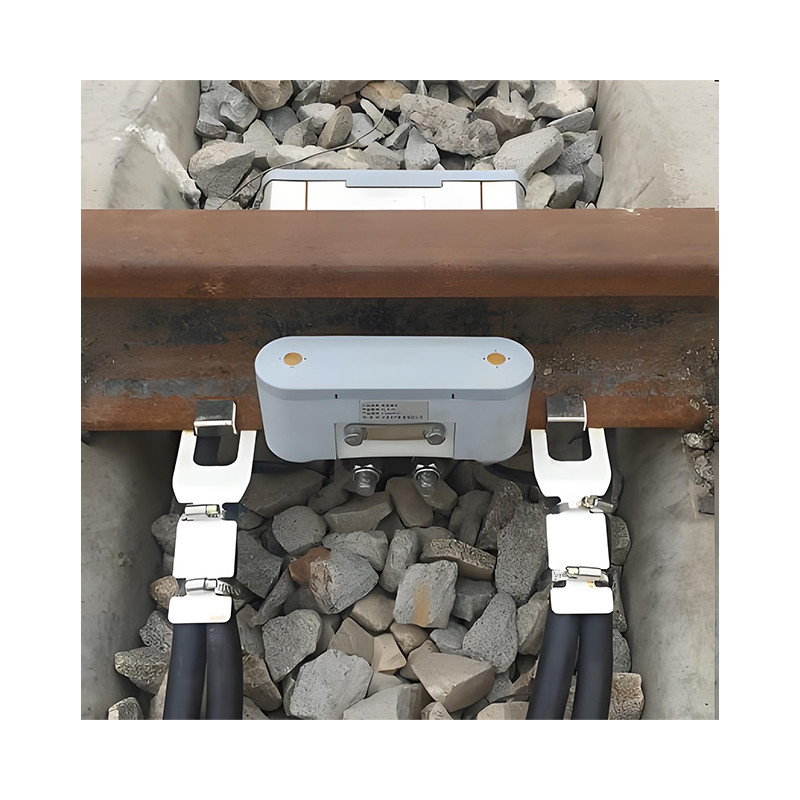

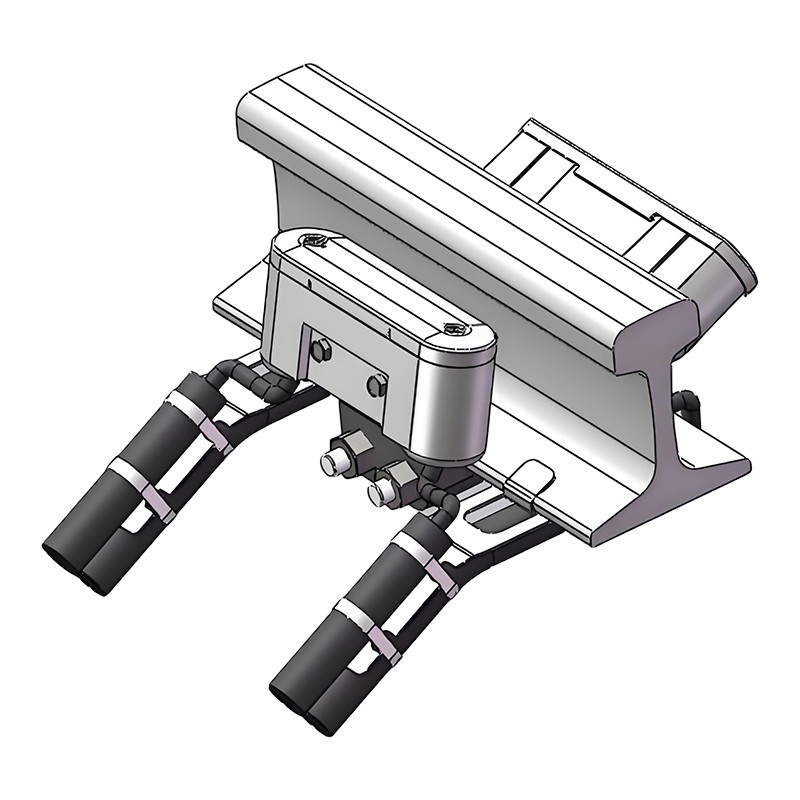

HTJZ-A1 Magnetic Head Sensor
The sensor consists of a transmitting head and receiving head mounted on the rail with clamping fixtures. The transmitting head is positioned on the rail's outer side while the receiving head is installed on the inner side. Featuring a fully encapsulated design with IP68 protection against dust and water ingress.
HTJZ-A1 Magnetic Head Sensor

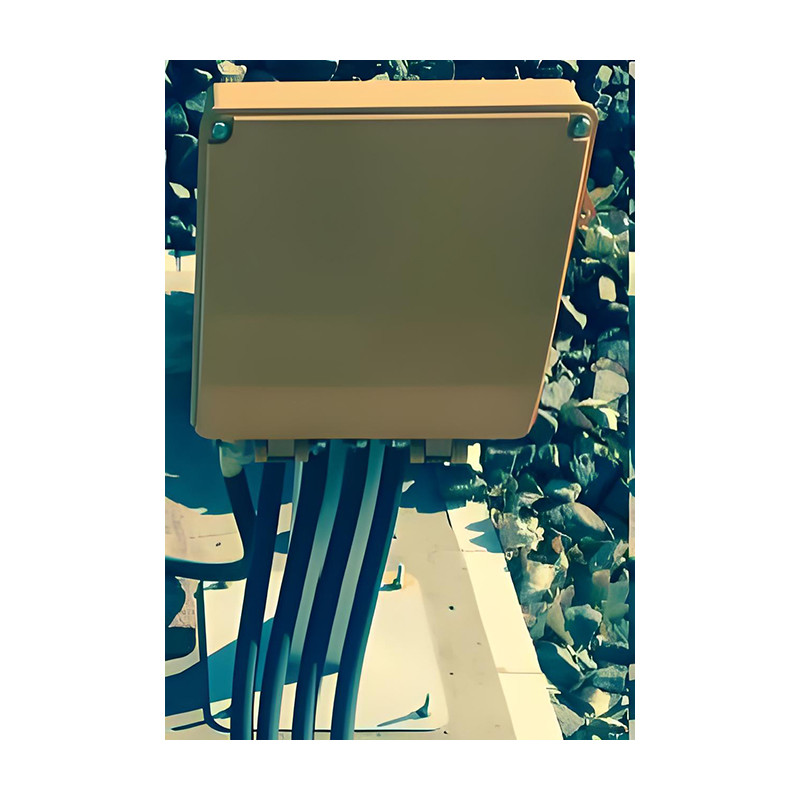

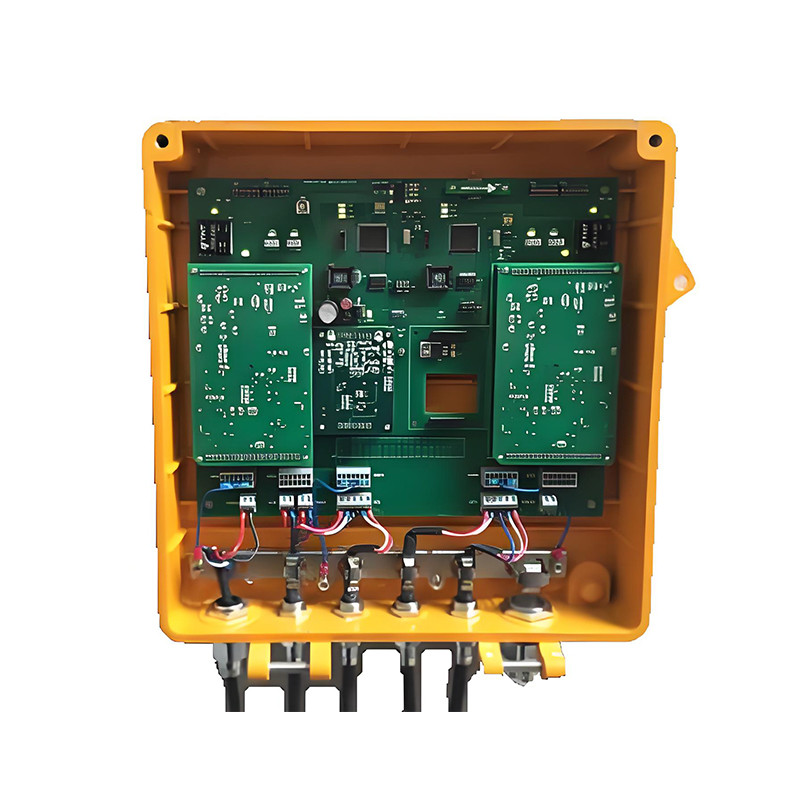

Trackside Electronic Unit
The unit comprises a magnetic head board and protective enclosure, mounted on ground or wall using brackets. The modular single-board design is housed in an aluminum alloy enclosure with gasket seals, providing IP66-rated protection against environmental elements.
Trackside Electronic Unit
