HTJZ-A1/A2 Railway Axle Counting Host Metal Material 2250mm*600mm*800mm Dimensions for Accurate Counting
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Model Number | HTJZ-A1/A2 |
| Minimum Order Quantity | 100pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Railway Axle Counting Host | Material | Metal |
|---|---|---|---|
| Dimensions | 2250mm*600mm*800mm | Axle Counter | 2-4 Core Wires |
| Highlight | Accurate Railway Axle Counting Host,Metal Material Railway Axle Counting Host,HTJZ-A1 Railway Axle Counting Host |
||
Product Description
HTJZ-A1/A2 Railway Axle Counting Host
Product Overview

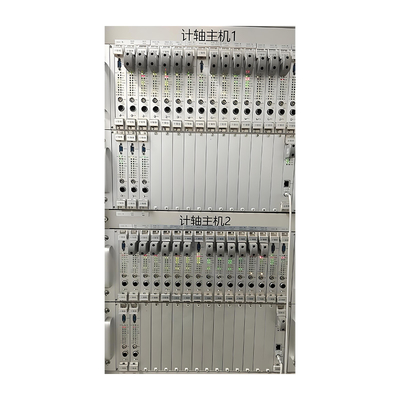

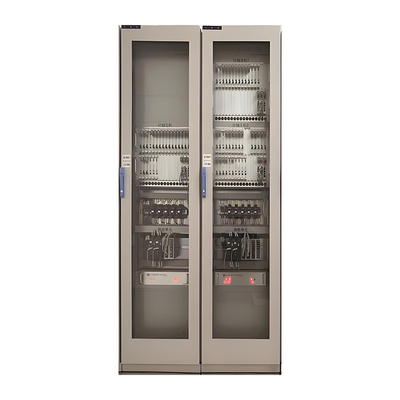

The axle counting cabinet houses the main axle counting unit and is designed for indoor installation in equipment rooms. This system consists of axle counting boards and diagnostic boards that monitor track section status and interface with computer-based interlocking systems.
Key Specifications
| Attribute | Value |
|---|---|
| Product Name | Railway Axle Counting Host |
| Material | Metal |
| Dimensions | 2250mm × 600mm × 800mm |
| Axle Counter | 2-4 Core Wires |
Technical Advantages
- Single host unit manages up to 31 track sections
- One cabinet accommodates two host units (62 track sections)
- Each track section configurable with 16 outdoor axle counting points
- Hot-swappable host unit boards for maintenance
- 2-core or 4-core wire connections between host and outdoor counters
- Star topology for all connections
- Customizable cabinet dimensions and specifications available
Power Specifications
| Power Type | Current Requirement | Power Supply Target |
|---|---|---|
| AC 220V Power 1 | 3A | Indoor axle counting host |
| AC 220V Power 2 | 3A | Indoor axle counting host |
| DC 120V Power 1 | 5A | Outdoor axle counting points (A1 only) |
| DC 120V Power 2 | 5A | Outdoor axle counting points (A1 only) |
| DC 24V Power | 2A | Track relays and reset input |
