Railway On-board Gateway Coupling HTRGW1000 Railway Vehicle TCN Gateway
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Model Number | HTRGW1000 |
| Minimum Order Quantity | 100pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimensions | 199*133*185mm | Material | Metal |
|---|---|---|---|
| Standard | EN 50155 - IEC 60571 - IEC 61375 | Power | 24 VDC |
| Power Consumption | 10W | Operating Temperature | According To Class Tx EN 50155 IEC 60571 |
| Protection | IP20 | ||
| Highlight | On-board Gateway Coupling,Railway On-board Gateway Coupling,HTRGW1000 Gateway Coupling |
||
Product Description
Railway On-board Gateway Coupling HTRGW1000 Railway Vehicle TCN Gateway
Product Specifications
| Attribute | Value |
|---|---|
| Dimensions | 199×133×185mm |
| Material | Metal |
| Standard | EN 50155 - IEC 60571 - IEC 61375 |
| Power | 24 VDC |
| Power Consumption | 10W |
| Operating Temperature | According to Class Tx EN 50155 IEC 60571 |
| Protection | IP20 |
Product Description

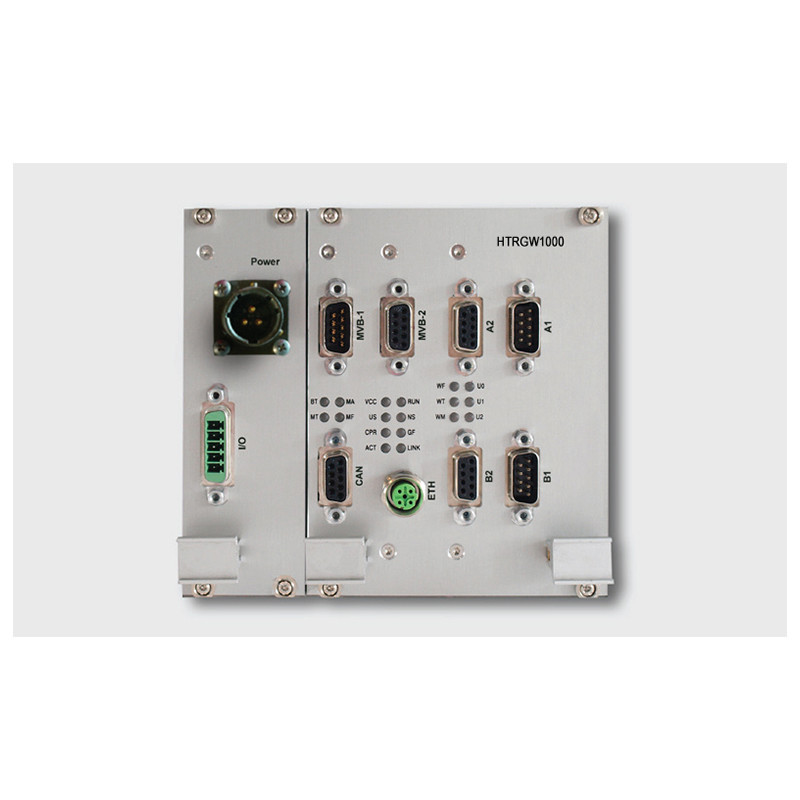

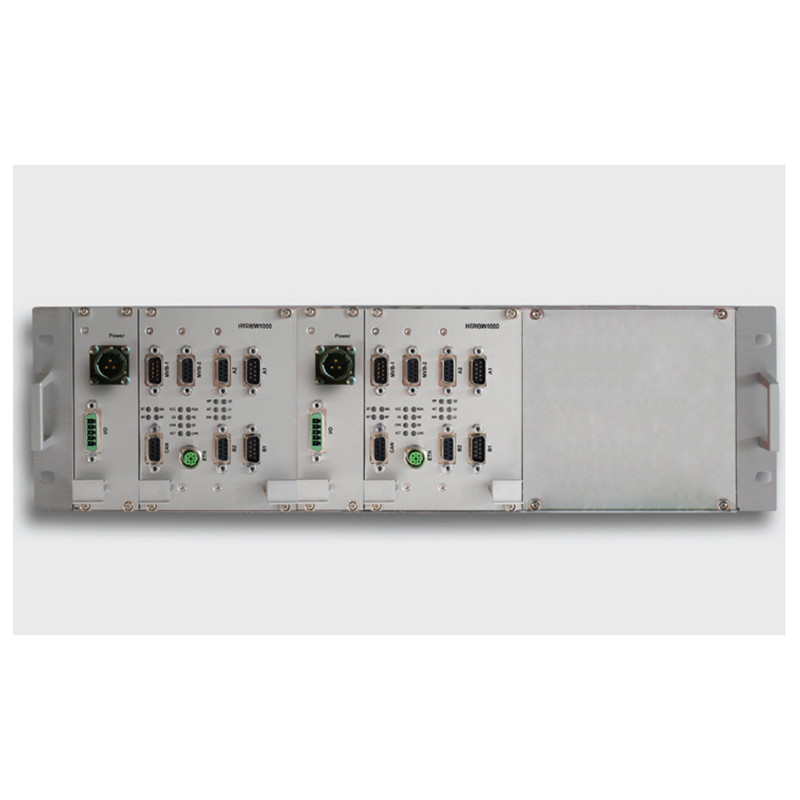

The HTRGW1000 is a railway on-board gateway coupling compliant with IEC 61375 and UIC 556 leaflet standards. Enclosed in a compact 3U sub-rack, this gateway enables the creation of redundant TCN nodes when two units are coupled via the serial interface. All features including traffic data and redundancies are programmable through XML files.

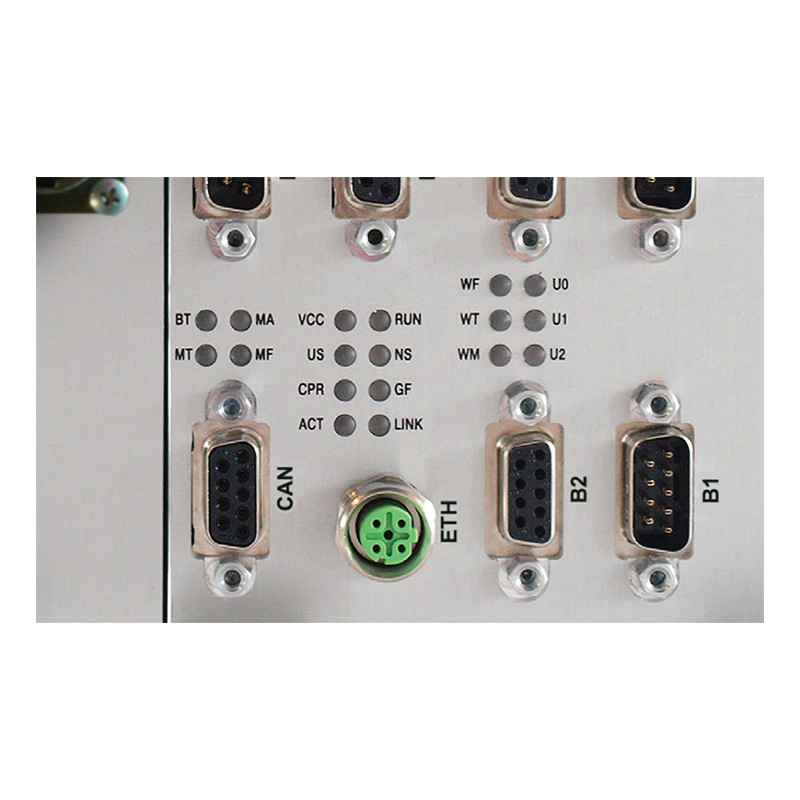

Key Components
- 1 Ethernet 10/100 Base-T (2nd optional)
- 1 WTB full redundant with fritting function
- 1 MVB bus full redundant EMD (ESD or OGF available on request)
- 1 isolated CAN bus
- 1 isolated RS232/485/422 (optional)
- 2 Digital Inputs
- 1 Digital Output
Primary Functions
- Process and message data exchange on MVB and WTB buses (RTP stack protocol)
- WTB network inauguration handling (WTB Link Layer)
- MVB management (Bus administrator)
- Process Data Marshaling (data import/export between WTB and MVB)
- Train Network Manager (Agent and Manager)
- Mapping Server 12 (UIC 556 4th Ed.)
Technical Specifications
| Feature | Description |
|---|---|
| Standard | EN 50155 - IEC 60571 - IEC 61375 |
| Power | 24 Vdc (37.5 Vdc, 72 Vdc and 110 Vdc available) |
| Power Consumption | 10W |
| Operating Temperature | According to Class TX EN 50155 IEC 60571 |
| Dimension | 199 × 133 × 185mm |
| Protection | IP20 |
| System Features | Microprocessor dual core ARM Cortex A9 + internal FPGA 512 MB DDR3 32 MB NOR Flash SD Card Up to 16 Gb (optional) |
