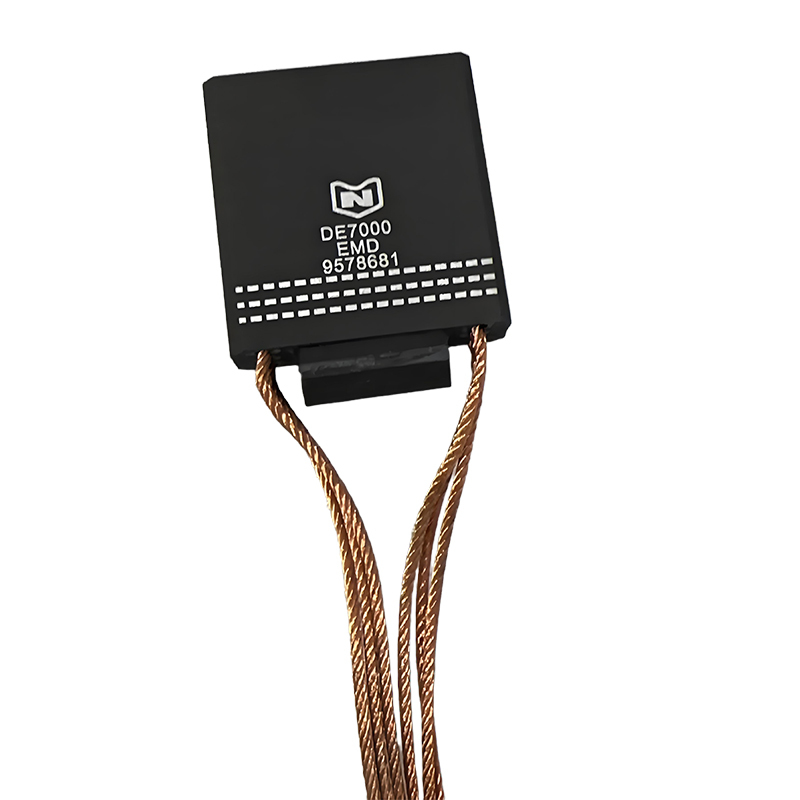

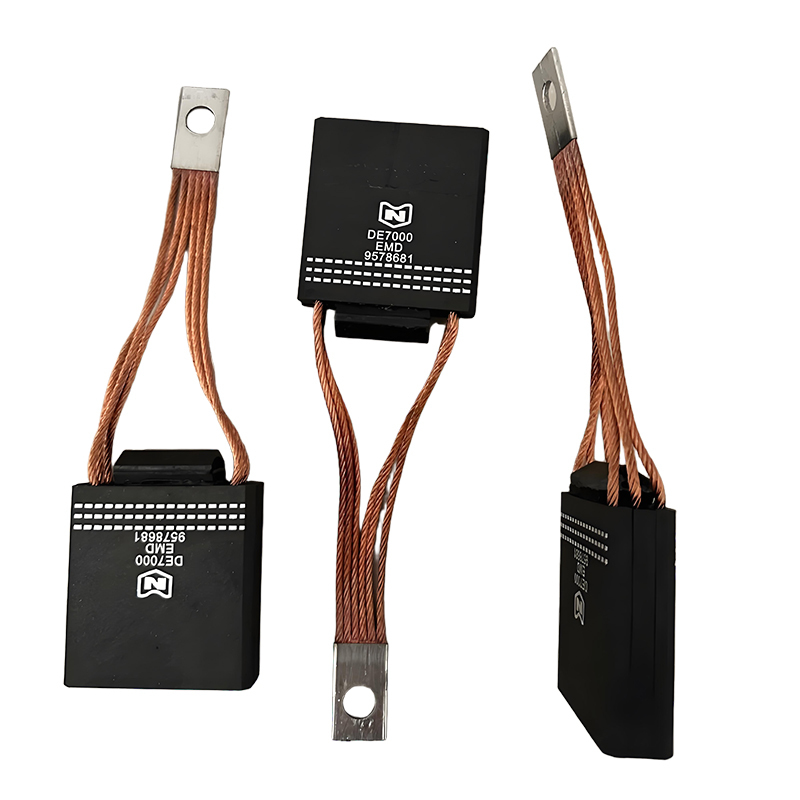

Railway Locomotive Carbon Brush for DE-7000 EMD 9578681 Model
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 50 |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 374 | Resistivity | 48 UΩ M |
|---|---|---|---|
| Transverse Strength | 38 Mpa | Shore Hardness | 83 Mpa |
| Density | 1.71 G/cm^3 | Contact Vol Drop | 0.8 (V) |
| Coeff Of Friction | 0.1 | Current Density | 15.5 A/cm^2 |
| Max Surface Speed | 51 M/s | Dimensions | Customer's Drawings |
| Compatible Model | DE-7000 EMD 9578681 | Brush Type | Carbon Brush |
| Application | Railway Locomotive | Power Transmission | Efficient |
| Wear Resistance | High | ||
| Highlight | Railway locomotive carbon brush,EMD 9578681 carbon brush,DE-7000 locomotive spare parts |
||
Product Description
Railway Rolling Stock Vehicle Use Carbon Brush
Product Overview
Motor carbon brushes, made of graphite or metal composites, conduct current between the rotor and stator via sliding contact with commutators/slip rings. They ensure power transmission while reducing wear on critical components, acting as replaceable parts in DC or wound-rotor motors.
This high-quality carbon brush is designed for use in the DE-7000 EMD 9578681 model, ensuring compatibility and optimal performance for railway locomotive applications.
Key Features
- High Wear Resistance: Durable graphite material for long service life
- Excellent Conductivity: Low-resistance design ensures efficient power transmission
- Low Spark & Noise: Smooth operation with minimal electrical interference
Technical Specifications
| Attribute | Value |
|---|---|
| Type | Carbon Brush |
| Material | 374 |
| Dimensions (L x W x H) (mm) | Customer's drawings |
| Application | Railway Locomotive |
| Resistivity | 48 uΩ m |
| Transverse Strength | 38 Mpa |
| Shore Hardness | 83 Mpa |
| Density | 1.71 g/cm³ |
| Contact Vol Drop | 0.8 (V) |
| Coeff of Friction | 0.1 |
| Current Density | 15.5 A/cm² |
| Normal Max. Surface Speed | 51 m/s |
Product Images
