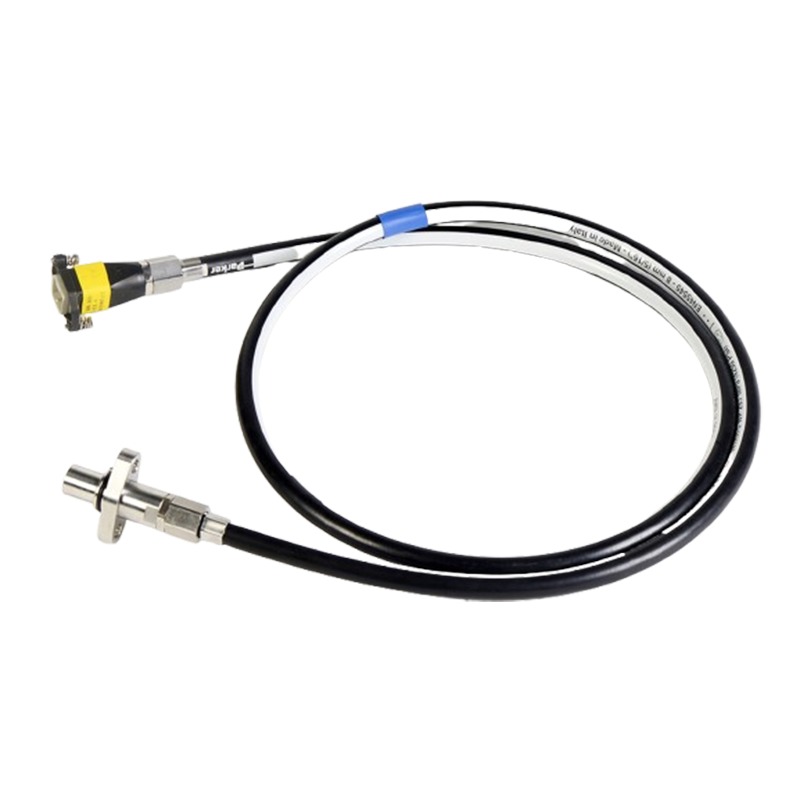

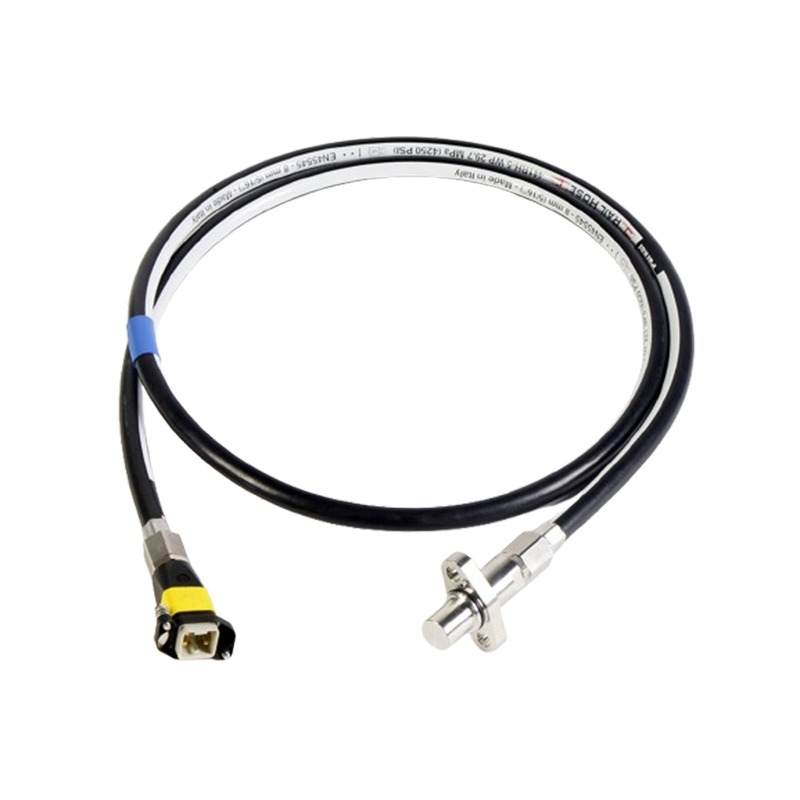

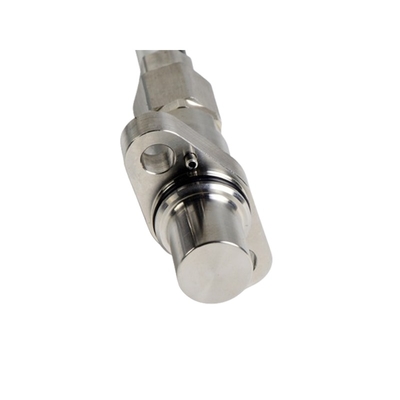

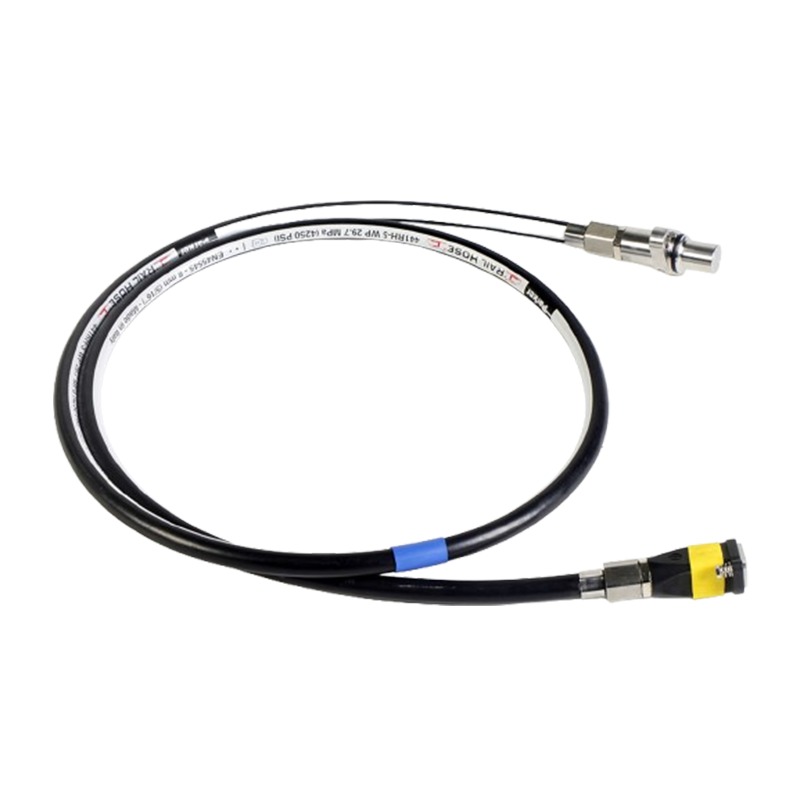

ISO9001 Certified Customizable Hall Speed Sensor
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | HTR |
| Certification | ISO9001 |
| Minimum Order Quantity | 10 |
| Price | Ngotiable |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Metal | Operating Air Gap | 1 ± 0.5 Mm |
|---|---|---|---|
| Altitude | ≤1500m | Relative Humidity | ≤95% (monthly Average Minimum Temperature Of 25℃) |
| Operating Temperature | -40℃ To +120℃ | Vibration & Shock | Complies With IEC 61373:2010 For Category 3 Axle-mounted Applications |
| Protection Rating | IP68 (5 Bar, 2 Hours) | Operating Voltage | 8V To 30V DC |
| Rated Voltage | DC 15V | Speed Measurement Range | 0 To 20 KHz |
| Output Waveform | Square Wave, With Slew Rate (2m Cable) ≥ 3.5 V/μs | Duty Cycle | (50 ± 10)% |
| Phase Shift | 90° ± 18° | High-Level Output | ≥ Ub - 2.0 V |
| Low-Level Output | ≤ 1.2 V | ||
| Highlight | Hall speed sensor for cars,ISO9001 certified car speed sensor,Customizable hall effect sensor |
||
You can tick the products you need and communicate with us in the message board.
Product Description

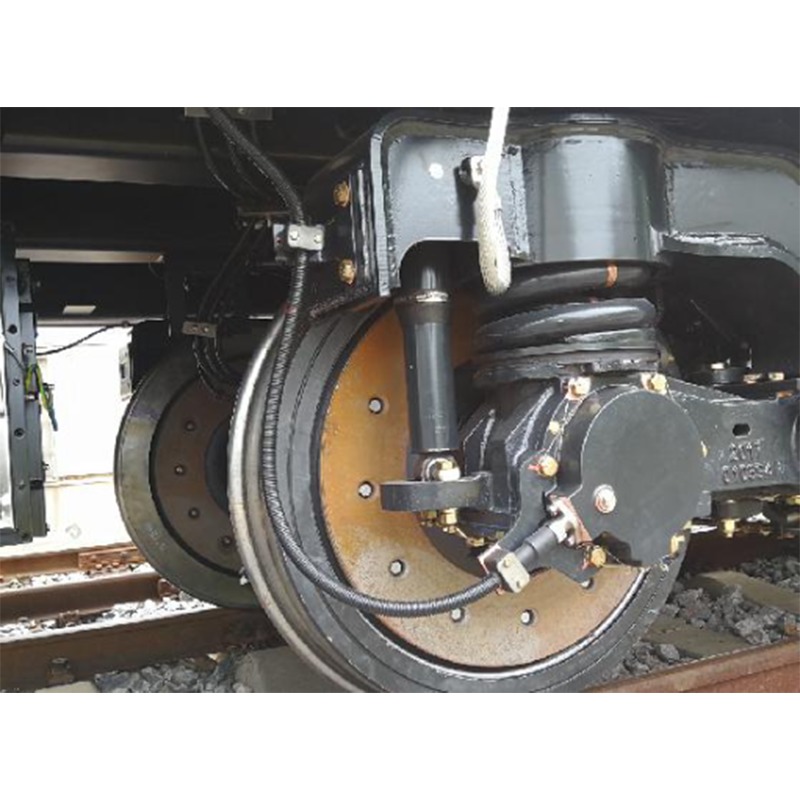

The Hall-type speed sensor uses magnetic induction to measure speed contactlessly. It is wear-resistant, highly accurate, and highly anti-interference. It can adapt to the harsh environment of rail transit and is used in key parts such as axles and motors to ensure safe and reliable operation.
Product Features
· Non-contact measurement – Operates via magnetic field sensing, eliminating mechanical wear for extended service life.
· High-precision response – Detects minute speed variations with real-time signal output for critical control systems.
· Robust environmental resilience – Withstands extreme temperatures, vibration, and moisture in demanding rail operating conditions.
· EMC-compliant reliability – Provides stable output with superior electromagnetic interference (EMI) immunity for fail-safe operation.
|
Product Performance |
Reference Value |
|
Altitude |
≤1500m |
|
Relative Humidity |
≤95% (monthly average minimum temperature of 25℃) |
|
Operating Temperature |
-40℃ to +120℃ |
|
Vibration & Shock |
Complies with IEC 61373:2010 for Category 3 axle-mounted applications |
|
Protection Rating |
IP68 (5 bar, 2 hours) |
|
Power Supply (Vcc):
|
Operating Voltage Range: Us = 8V to 30V DC |
|
Rated Voltage: DC 15V |
|
|
Speed Measurement Range |
0 to 20 kHz |
|
Operating Air Gap |
1 ± 0.5 mm |
|
Number of Output Channels |
customized |
|
Output Waveform |
Square wave, with slew rate (2m cable) ≥ 3.5 V/μs |
|
Duty Cycle |
(50 ± 10)% |
|
Phase Shift (between channels) |
90° ± 18° |
|
High-Level Output |
≥ Ub – 2.0 V |
|
Low-Level Output |
≤ 1.2 V |
|
No-Load Current Consumption |
≤ 40 mA |
|
Operating Air Gap |
1 ± 0.5 mm |
