Fiberglass Train Carriage Curtains with Aluminium Alloy Frame EN 45545-2
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 100 |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Fiberglass + Aluminium Alloy | Fire Safety | EN 45545-2 HL2 |
|---|---|---|---|
| Light Transmission | <10% | UV Blocking | ≥ 70% |
| Temperature Resistance | -25 °C To +70 °C | UV Resistance | ≥ 500 Hours Exposure |
| Humidity Resistance | Up To 95% RH | Vibration Resistance | IEC 61373-2010 |
| Fabric Material | Fiberglass | Toxicity/Smoke | Low Smoke Emission, Halogen-free |
| Operation Type | Side-guided | End Fittings | Aluminium Or Stainless Steel |
| Roller Tube | Aluminium Alloy | Life Cycle | ≥ 20,000 Cycles |
| Cleaning Resistance | Alcohol-based And Mild Detergent Cleaners | ||
| Highlight | Fiberglass train carriage curtains,Aluminium alloy frame curtains,EN 45545-2 compliant railway curtains |
||
Product Description
Train Carriage Fiberglass Fabric Aluminium Alloy Window Frame Curtains
Product Specifications
| Attribute | Value |
|---|---|
| Type | Curtains |
| Material | Fiberglass + Aluminium alloy |
| Dimensions (L x W x H) (mm) | As per drawing |
| Fire Safety | EN 45545-2 HL2 |
| Blackout Type | <10% light transmission |
| UV Blocking | ≥ 70% UV protection |
| Temperature Resistance | -25 °C to +70 °C |
| UV Resistance | No fading after ≥ 500 hours exposure |
| Humidity Resistance | Up to 95% RH |
Key Features
- Custom fitment: Precisely tailored to window frame dimensions
- Integrated mounting: Concealed when rolled up for sleek appearance
- Vibration resistant: Engineered to withstand train vibration & shock (IEC 61373-2010 compliant)
Material & Construction Details
| Component | Specification |
|---|---|
| Fabric | Fiberglass |
| Fire Safety | EN 45545-2 HL2 compliant |
| Toxicity/Smoke | Low smoke emission, halogen-free |
| Operation | Side-guided mechanism |
| End Fittings | Aluminium or Stainless Steel |
| Roller Tube | Aluminium alloy |
| Brackets | Powder-coated steel or aluminium |
| Pull Mechanism | Pull strap, bead chain, or handle options |
| Life Cycle | ≥ 20,000 up/down cycles without failure |
Environmental Durability
| Feature | Performance |
|---|---|
| Temperature Resistance | -25 °C to +70 °C (no deformation) |
| Humidity Resistance | Up to 95% RH |
| UV Resistance | No fading after ≥ 500 hours exposure |
| Cleaning | Resistant to alcohol-based and mild detergent cleaners |

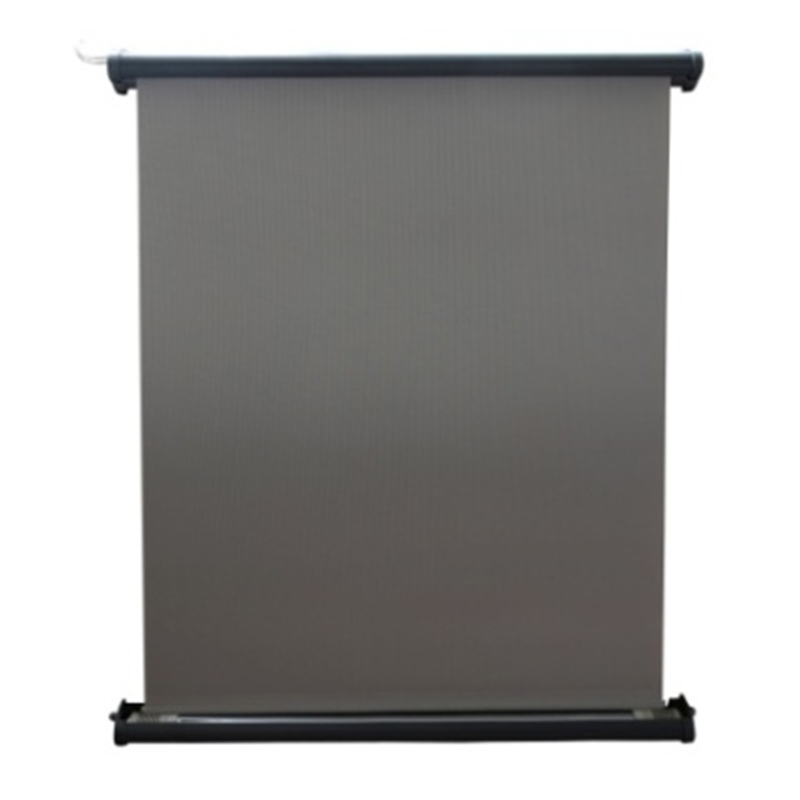

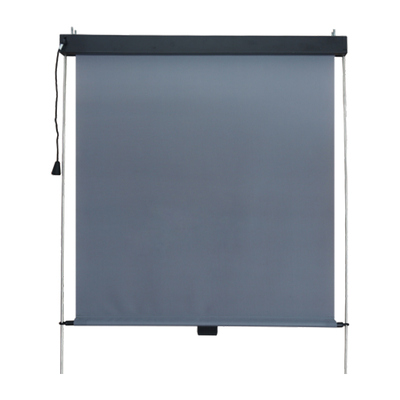

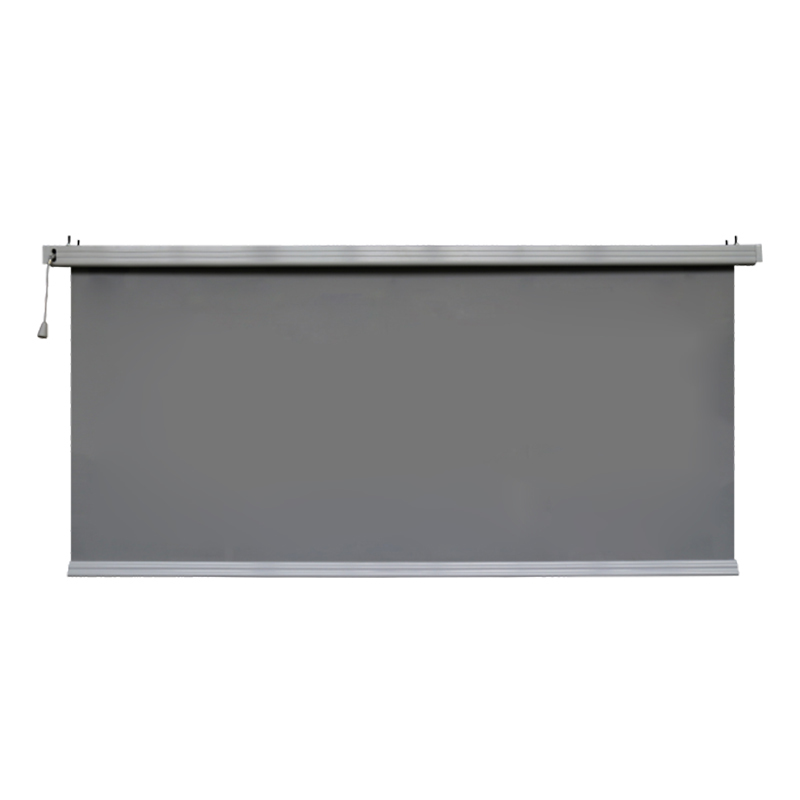

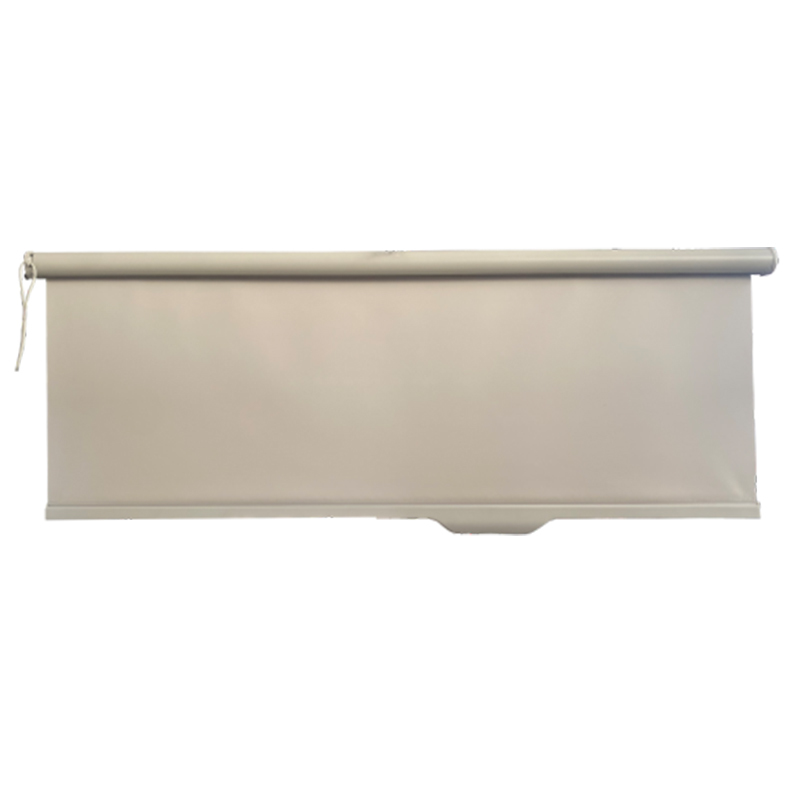

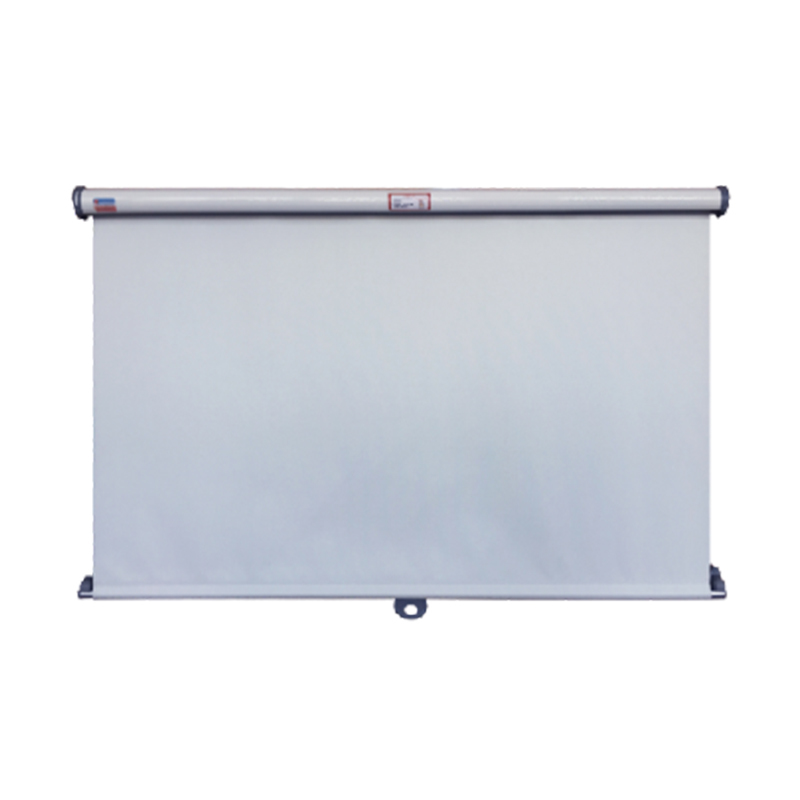

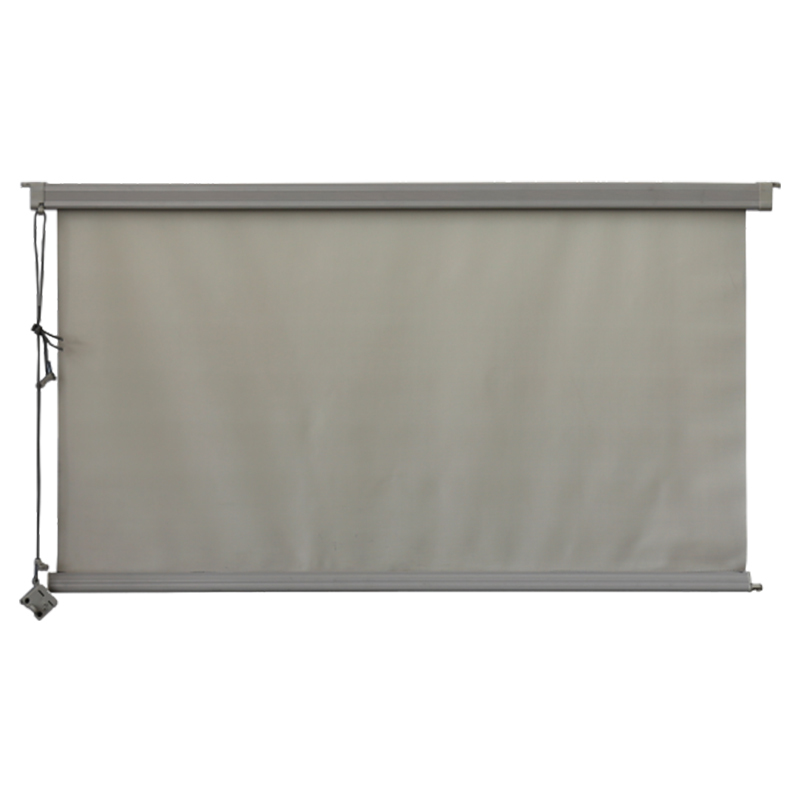

Product Images
