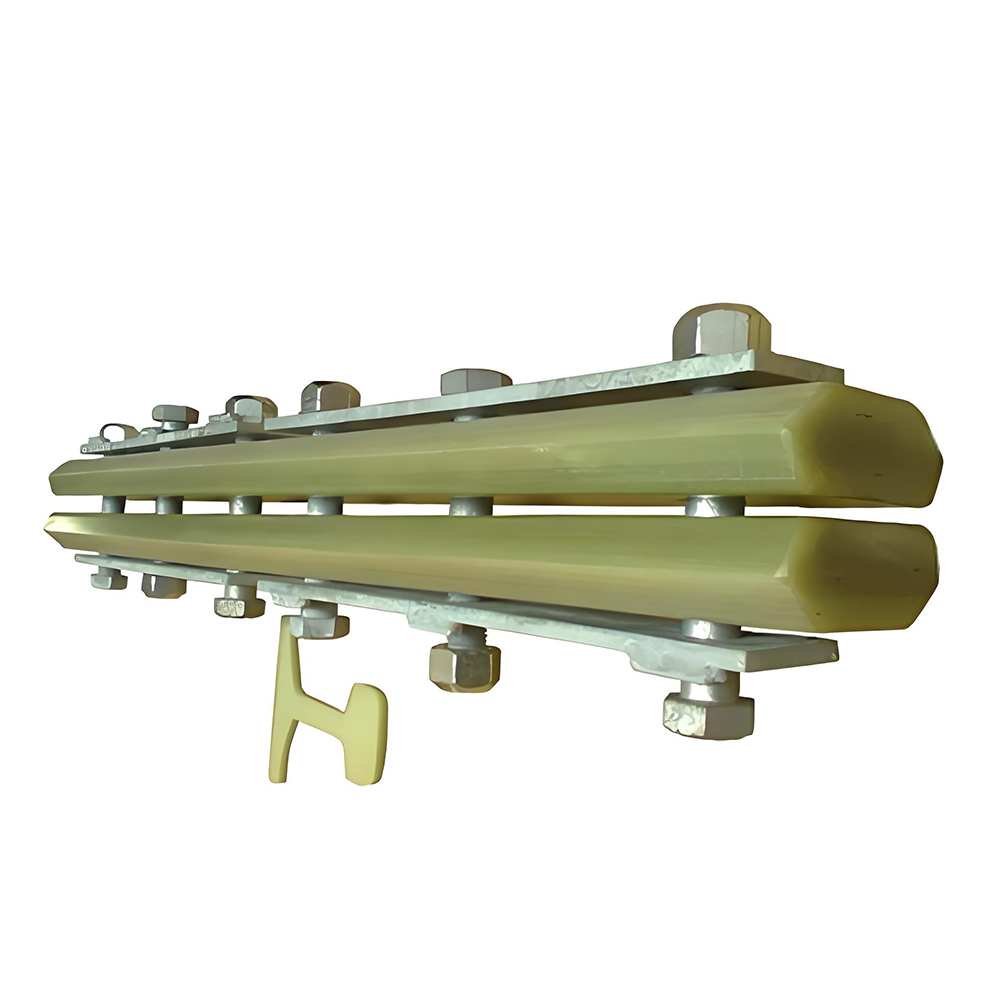

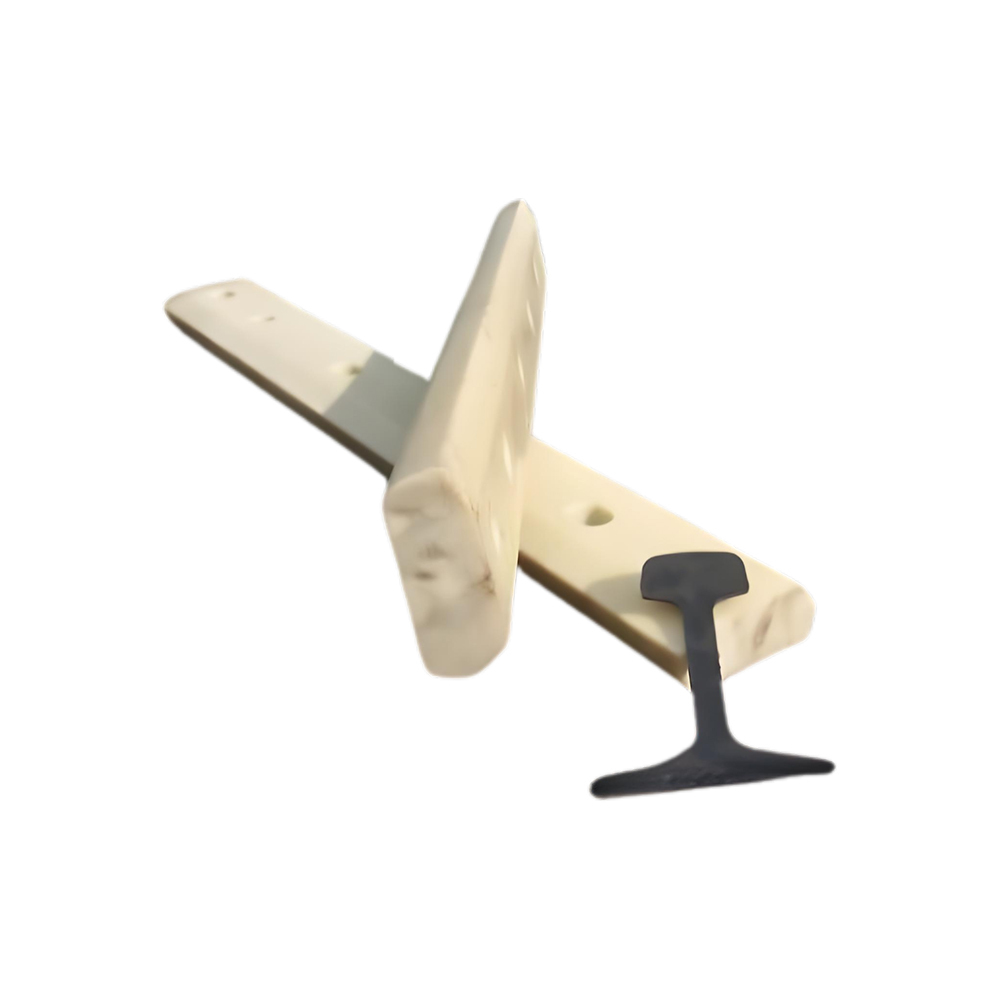

High Strength Electrical Resistance Insulated Rail Joint Fish Plate
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 100 |
| Price | Ngotiable |
| Packaging Details | Export packaging |
| Delivery Time | Ngotiable |
| Payment Terms | L/C,T/T,D/A,Western Union |
| Supply Ability | 50000 pcs per month |
Product Details
| Material | Polyurethane, Glass Fiber | Fiber Content | ≥65 M-% |
|---|---|---|---|
| Flexural Modulus | ≥25000 N/mm2 | Water Absorption | <0.05 % |
| Tensile Strength | ≥1653 KN | Bending Strength | ≥156.85 KN |
| Electrical Insulation | >550 MΩ | Impact Resistance | ≥135 KJ/m2 |
| Dimensions | Customized | Rail Reference | 60E1 (UIC60) |
| Installation Type | No Chemicals | ||
| Highlight | insulated rail joint fish plate,high strength rail joint,electrical resistance fish plate |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Product Description

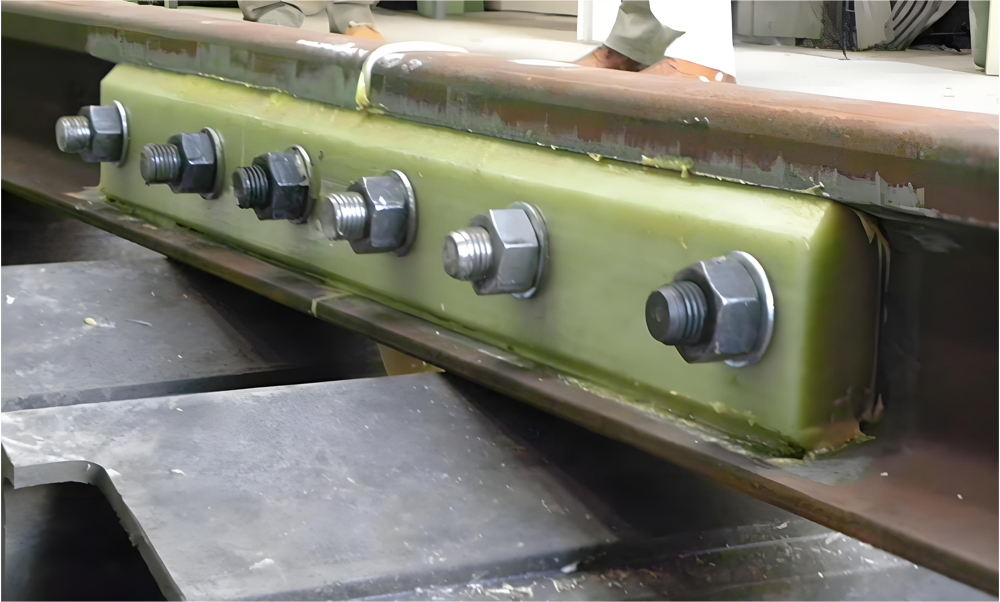

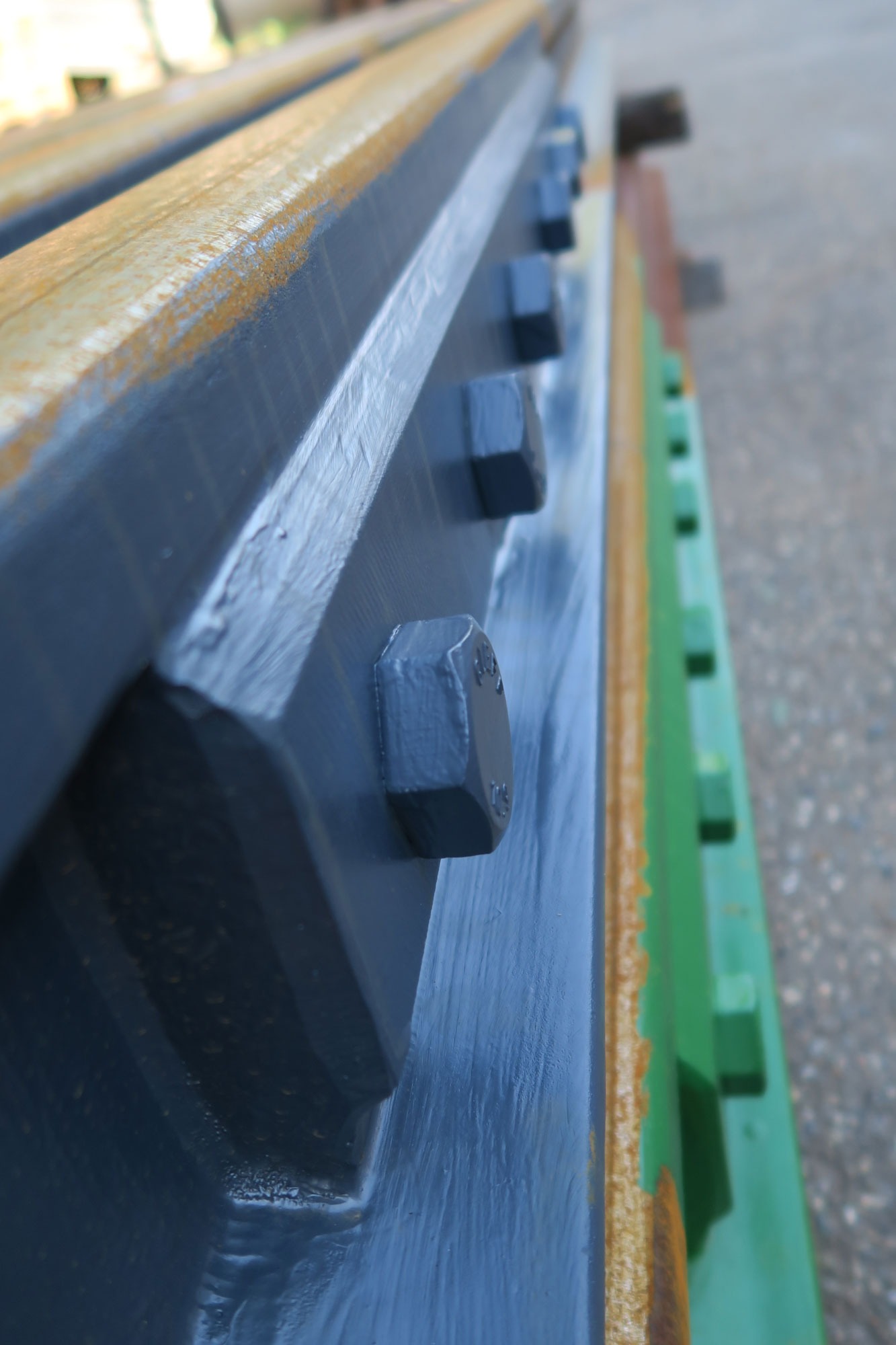

Bonded insulated rail joints offer the highest possible electrical insulation properties and are practically fail-safe due to their design and materials. With exceptional mechanical strength and fatigue resistance, along with resistance to environmental effects like UV radiation, heat, moisture, and impurities, they are an ideal solution for both continuous welded rail (CWR) and jointed tracks. The rail joint design is simple, using a minimal number of parts. This allows for easy and fast installation without the need for handling chemicals, detergents, or welding.
Key Features
Key Features
- Fail-safe Functionality: Our rail joints offer the highest electrical insulation properties, ensuring virtually fail-safe performance in railway signaling systems.
- Mechanical Strength: Comparable to steel and wooden joints, our fishplates are robust and durable, capable of withstanding environmental factors such as UV radiation, heat, moisture, and impurities.
- Easy Installation: The simple design with minimal parts allows for quick and hassle-free installation, eliminating the need for chemicals, welding, or detergents.
- Easy Replacement: Simple and fast replacement of existing joints (special repair joints are also available).
- Cost Savings: The efficient installation process and durable materials result in significant total cost savings over the product's lifespan.
- No Chemicals: Our rail joints require no glues or chemicals for installation or maintenance.

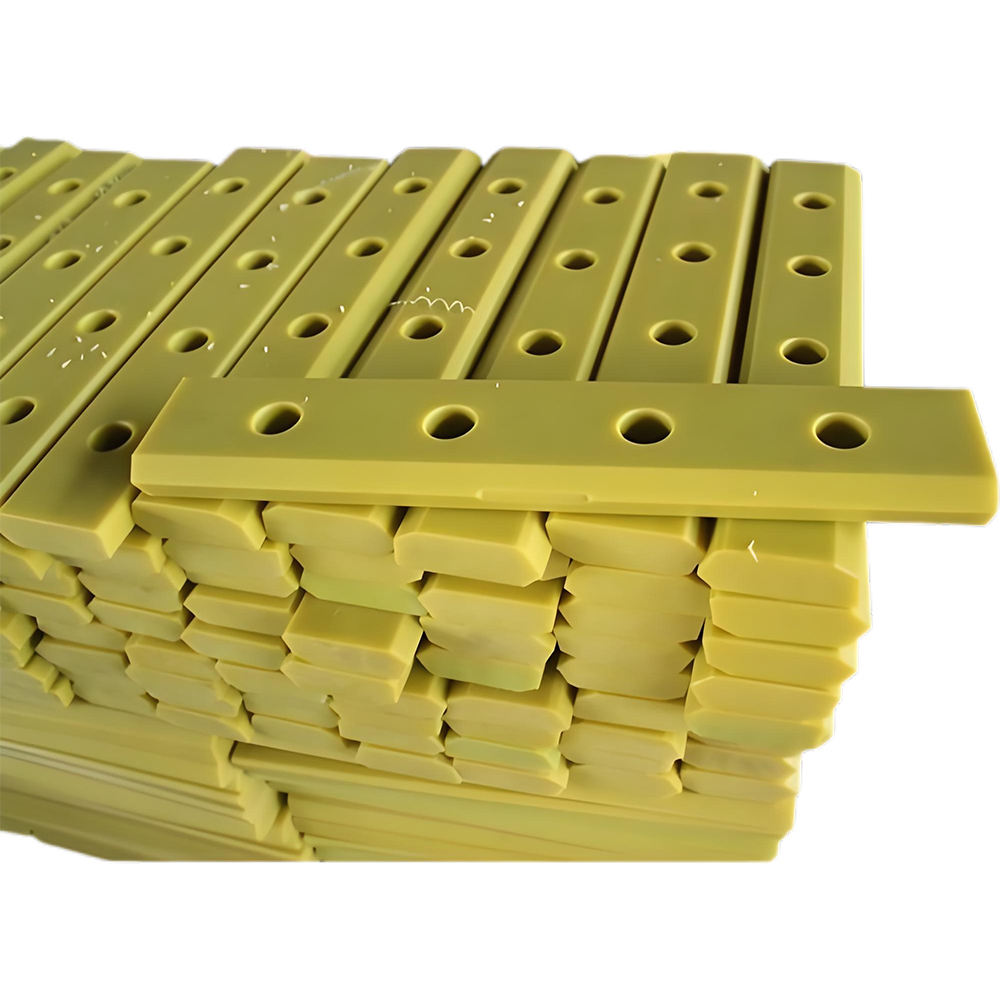

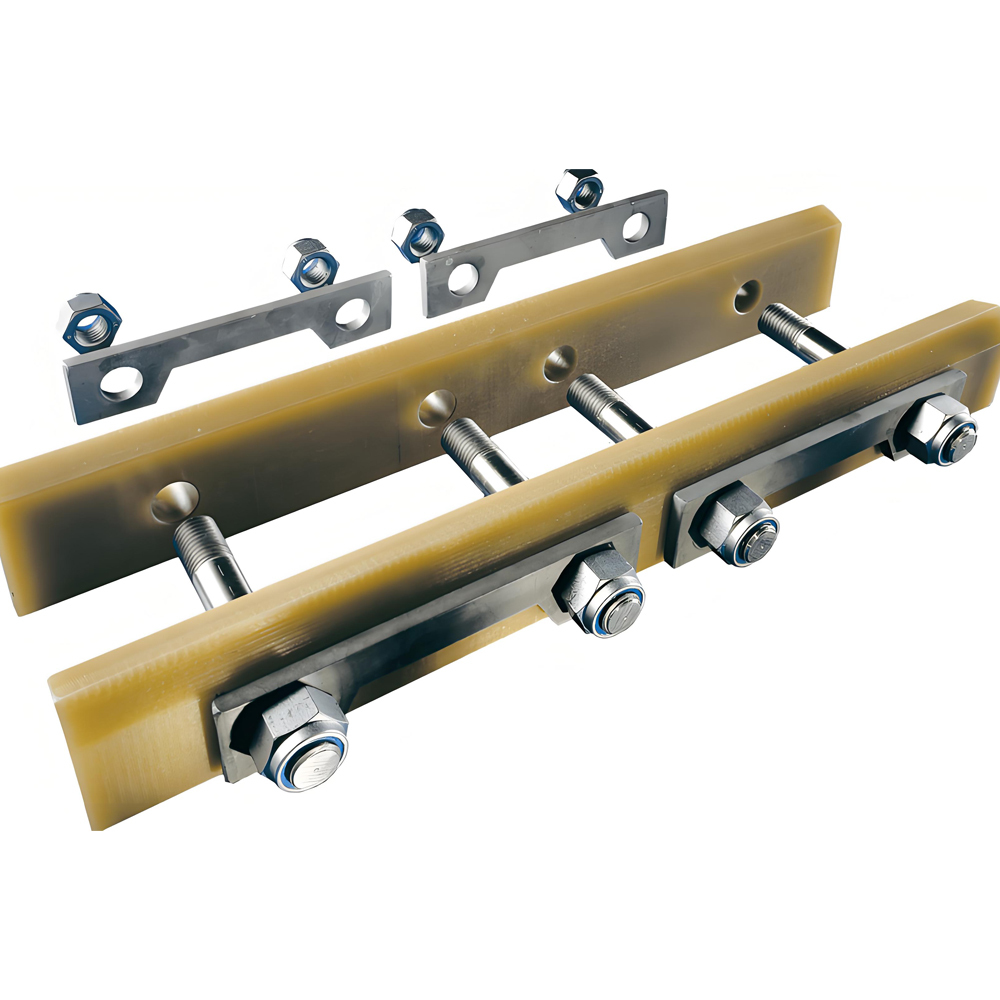

- Customization: We offer individual fishplates and endplates, as well as complete kits with metal fixing parts, all customizable to meet specific requirements.
Product Performance
Reference Value
Standard
Chinese Standard
Tensile Strength
≥1000MPA
Break Elongation
≥1%
Bending Strength
≥1080MPA
Compression Strength
≥500MPA
Shear Strength
≥160MPA
Impact Strength
≥480kJ/m2
Fiber Content
≥75%
Drying Regime Insulating Property
＞20MΩ
Dampness Insulating Property
＞1000Ω
