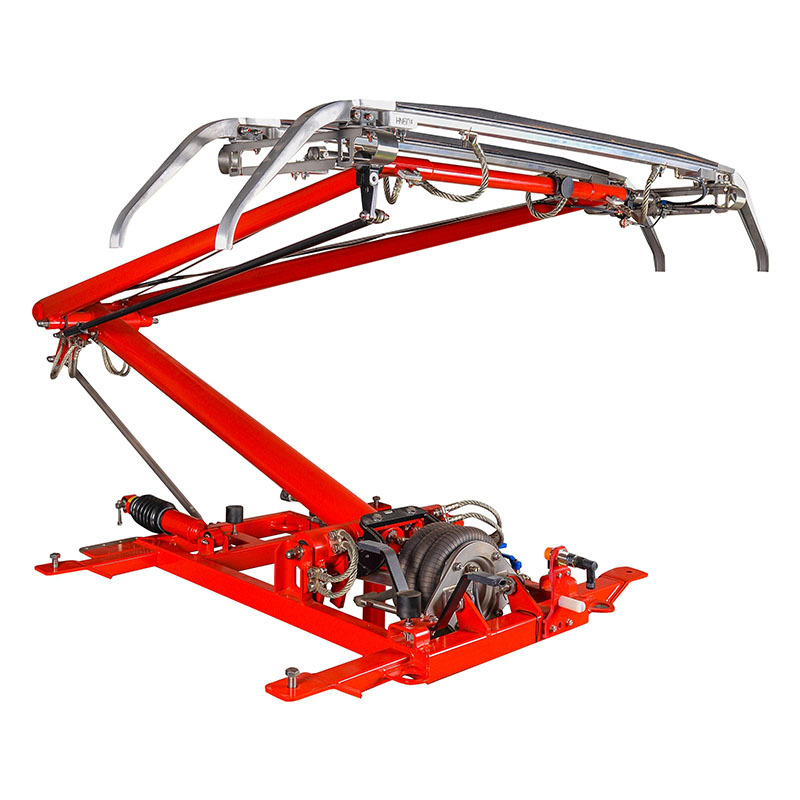

HTR160C Train Locomotive Pantograph
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 100pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ambient Temperature | -25°C ~ +70°C | Storage Temperature | -40°C ~ +70°C |
|---|---|---|---|
| Design Speed | 120 Km/h | Rated Pneumatic Pressure | 400 KPa |
| Protection Grade | IP00 | Rated Voltage | 1500 VDC |
| Rated Operating Current | 1700 A | Maximum Current | 2400 A |
| Maximum Parking Current | 460 A | Static Contact Force | 120 ± 10 N |
| Raising Time | ≤ 8 S | Electrical Insulation Distance | 280 ± 5 Mm |
| Highlight | HTR160C locomotive pantograph,train pantograph spare part,locomotive pantograph with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Product Description
The HTR160C type pantograph is a single-arm, pneumatically operated current collector designed for metro or light rail vehicles to collect current from the overhead contact line.
This model features a low minimum operating height, wide working range, lightweight structure, and easy maintenance.
It suitable for metro or light rail vehicles operating under a 1500VDC overhead line voltage.
|
Parameter |
Value |
|
Ambient Temperature |
-25°C ~ +70°C |
|
Storage Temperature |
-40°C ~ +70°C |
|
Design Speed |
120 km/h |
|
Rated Pneumatic Pressure |
400 KPa |
|
Protection Grade |
IP00 |
|
Rated Voltage |
1500 VDC |
|
Rated Operating Current |
1700 A |
|
Maximum Current |
2400 A |
|
Maximum Parking Current |
460 A |
|
Static Contact Force |
120 ± 10 N |
|
Raising Time |
≤ 8 s |
|
Electrical Insulation Distance |
280 ± 5 mm |
|
Lowered Height |
340 mm (including insulator) |
|
Minimum Operating Height |
430 mm (including insulator) |
|
Maximum Operating Height |
2450 mm (including insulator) |
