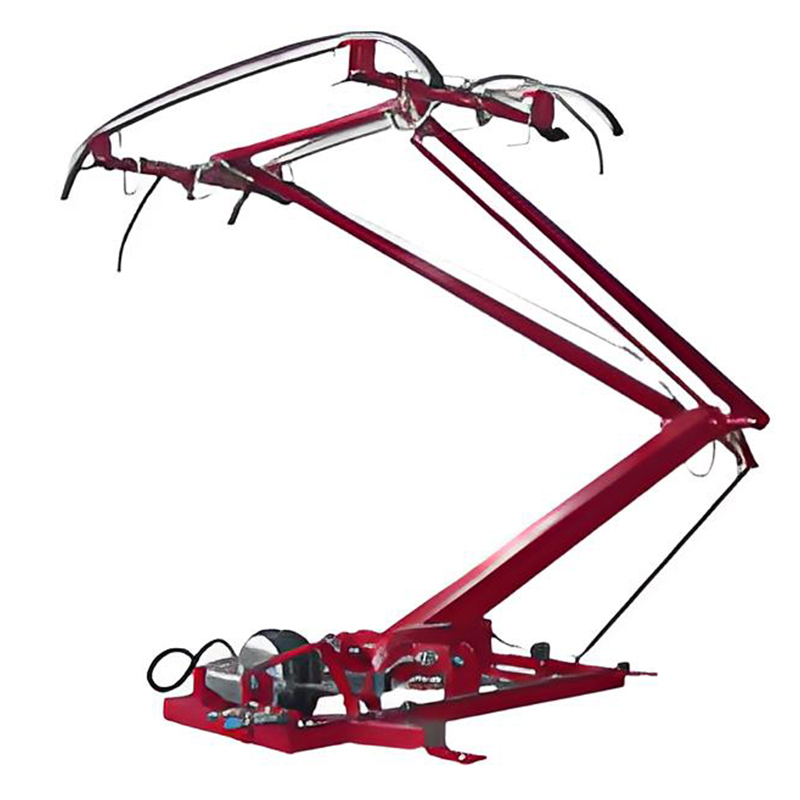

HTR250 Train Locomotive Pantograph
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 100pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Design Speed | 250 Km/h | Power Transmission (Standard) | 25 KV / 1000 A |
|---|---|---|---|
| Static Contact Force | 70 N, Adjustable | Dynamic Contact Force Adjustment | Aerodynamic Fins (if Required) |
| Raising Mechanism | Pneumatic | Input Compressed Air Pressure | 4–10 Bar |
| Weight | 115 Kg | ||
| Highlight | HTR250 locomotive pantograph,train pantograph spare part,locomotive pantograph with warranty |
||
Product Description
Product Description
This pantograph features a lightweight design, with certain components made from titanium alloy. Its aerodynamic performance at high speeds is enhanced through the addition of deflectors and aerodynamic fins.
It is designed for use on the domestically developed 200 km/h EMUs based on the "Hexie" series platform. Since the commercial launch of China's high-speed rail services, this pantograph has achieved outstanding operational success.
|
Parameter |
Value |
|
Design Speed |
250 km/h |
|
Power Transmission (Standard) |
25 kV / 1000 A |
|
Static Contact Force |
70 N, adjustable |
|
Dynamic Contact Force Adjustment |
Aerodynamic fins (if required) |
|
Raising Mechanism |
Pneumatic |
|
Input Compressed Air Pressure |
4–10 bar |
|
Nominal Operating Pressure at 70 N Contact Force |
Approx. 3.3 bar |
|
Free Vertical Movement of Pantograph Head |
60 mm (vertical displacement) |
|
Weight |
115 kg |
