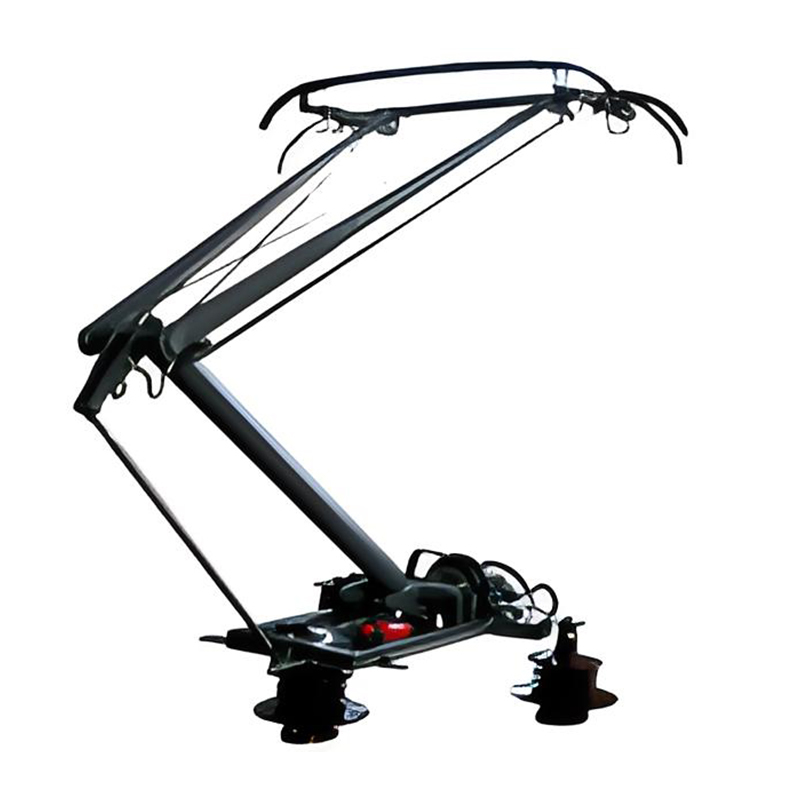

HTR200 Train Locomotive Pantograph
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 100pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Design Speed | 200 Km/h | Power Transmission (Standard) | 25 KV / 1000 A |
|---|---|---|---|
| Static Contact Force | 70 N, Adjustable | Raising Mechanism | Pneumatic |
| Input Compressed Air Pressure | 4–10 Bar | Weight | 130 Kg |
| Highlight | HTR200 locomotive pantograph,train pantograph spare part,locomotive pantograph with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Product Description
This pantograph model is used on all types of DC electric locomotives, as well as on AC electric locomotives of the "Hexie" series produced by CRRC Datong and Dalian plants.
Its airbag-based lifting mechanism ensures excellent control and contact performance, while the ADD (Automatic Drop Device) enables rapid pantograph lowering in the event of a catenary fault, protecting the overhead line. Currently, this product is widely applied to various passenger and freight locomotives operating at speeds below 200 km/h.
|
Parameter |
Value |
|
Design Speed |
200 km/h |
|
Power Transmission (Standard) |
25 kV / 1000 A |
|
Static Contact Force |
70 N, adjustable |
|
Dynamic Contact Force Adjustment |
Aerodynamic fins (if required) |
|
Raising Mechanism |
Pneumatic |
|
Input Compressed Air Pressure |
4–10 bar |
|
Nominal Operating Pressure at 70 N Contact Force |
Approx. 3.5 bar |
|
Free Vertical Movement of Pantograph Head |
60 mm (vertical displacement) |
|
Weight |
130 kg (excluding insulators) |
