12.1-inch EN50155 Certified Intelligent Display Locomotive DMI Device with 1.8GHz Quad-Core ARM Cortex-A53 + M4 Processor
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Certification | EN50155, EN45545, GB/T 25119, etc. |
| Model Number | HTSIDT2-2tqme |
| Minimum Order Quantity | 100pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Performance | 1.8GHz Quad-core ARM Cortex-A53 + M4 Processor, 2GB LPDDR4, 8GB EMMC Storage | Size | 12.1-inch |
|---|---|---|---|
| Resolution | 1024×768 | Maximum Brightness | Not Less Than 700cd/m² |
| Display Type | TFT-LCD | Backlight Type | LED |
| Ethernet | 2*LANs | MVB | 2*MVB EMD |
| Software | Linux+QT | Operating Temperature | -25℃ ~ +70℃, Up To 85 ℃ For 10 Min |
| Storage Temperature | -40℃ ~ +85℃ | Industrial Standards | EN50155, EN45545, GB/T 25119, Etc. |
| Highlight | 12.1-inch Railway Display Panel,1.8GHz quad-core ARM Cortex-A53 + M4 processor Train Monitoring Display,EN50155 certified Intelligent Display Locomotive DMI Device |
||
Product Description

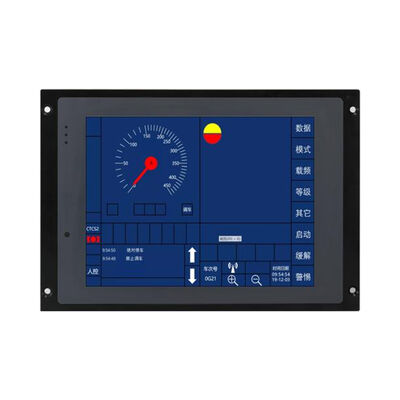

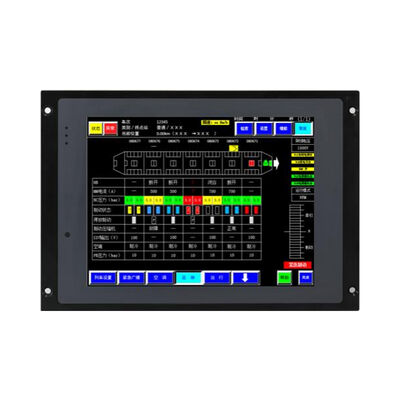

HTSIDT2-2tqme Intelligent Display Locomotive DMI Device
The HTSIDT2-2tqme is an advanced display unit designed for railway system monitoring, capable of displaying train operational status and vehicle parameter information while integrating with Passenger Information System (PIS). It receives data from communication bus lines and displays various system information using numbers, text, symbols, graphics, units, curves, and tables, with audio prompts delivered via external speakers or built-in buzzer.
Key Features

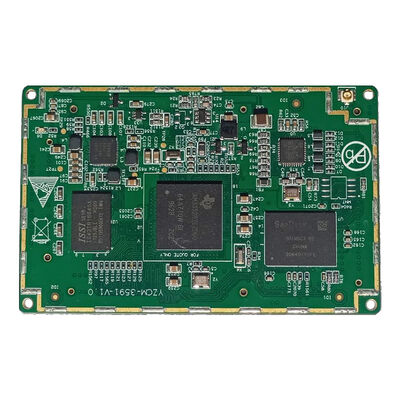

- Performance: 1.8GHz quad-core ARM Cortex-A53 + M4 processor, 2GB LPDDR4, 8GB eMMC storage
- Display: 12.1-inch TFT-LCD with 1024×768 resolution and brightness ≥700cd/m²
- Input Method: Capacitive touch interface
- Communication Interfaces: 2 x MVB (EMD), 2 x Ethernet, RS232/RS485
- Software Platform: LINUX/QNX + QT framework
- Main Functions: Temperature management, status indication, image generation, touch control, total communication, brightness adjustment, wireless upgrade, and voice playback
Technical Specifications
| System | Hardware Platform: I.MX6 series, I.MX8 series, AM335X series, Intel Atom series Memory/Storage: RAM 1-8GB optional, Flash 2-16GB optional Operating System: LINUX, QNX, Windows |
|---|---|
| Power Supply | Input Voltage: 16V - 100V Rated Power: ≤30W (non-heating state) Fuse: Built-in DC fuse |
| Display | Size: 6.5", 7", 8.4", 10.4", 15.6", 17.3", 21.5" Resolution: 640×480, 800×600, 1024×768, 1920×1080 optional Brightness: Adjustable 0-800cd/m² Backlight Type: LED Display Type: TFT-LCD Display Standard: Class I (ISO9241-307) |
| Input Methods | Button Input: Supports up to 80 key inputs with backlight function Touch Input: Resistive, Capacitive |
| Communication Interfaces | Train Bus: Ethernet, CAN, MVB, Profibus, HDLC Serial Port: RS422/RS485/RS232 configurable Maintenance Port: Ethernet, USB |
| Other Interfaces | Audio Input: Two-channel audio output or 2×16W speakers Video Input: Supports up to 12 channels; IP video, FBAS analog input Wireless Function: Supports software wireless upgrade |
| System Auxiliary Control Unit | Indicator Lights: Red, yellow, blue 3-color LED output; yellow LED indicates system status Internal Temperature Monitoring: Real-time monitoring via sensor; automatic heater activation below -30°C; power shutdown above 90°C Ambient Light Detection: Built-in sensor for automatic display backlight adjustment Voltage Detection: Monitors multiple internal voltages Buzzer: Controls buzzer output, sound pressure ≥105 dBA Address Coding: Reads display address code, range 0-7 Key Backlight: Reads key value and controls key backlight |
| Operating Environment | Operating Temperature: -40°C to +70°C, short-term (10 min) up to +85°C Storage Temperature: -40°C to +85°C Protection Rating: IP65 Standards Compliance: EN50155, EN45545, GB/T 25119, etc. |
Product Advantages
- Proprietary Core Technology, Highly Customizable Services: Backed by proprietary technologies, we deliver comprehensive customization services throughout your project lifecycle—from concept and design planning through validation, system integration, and mass production. We support hardware design, software development, vehicle integration, product testing, application support, and full-solution evaluation, ensuring smooth delivery with reduced risk and rework.
- Superior Cost Control and Seamless Replacement: HTR displays can directly replace existing third-party driver display units without changes to the locomotive's electrical system or operating logic, minimizing retrofit workload and downtime. We ensure long-term availability across the product lifecycle, with new developments maintaining backward compatibility for easier maintenance and upgrades. Compared with European brands, total project cost and maintenance expenses can be reduced by approximately 50%.
- Multiple Main Processor Platforms for Diverse Applications: We offer a broad selection of main processor platforms including Intel E3800, TI335X, NXP i.MX8, and ROCKCHIP RK3588, enabling optimal choice based on performance, interfaces, power budget, and system architecture. Multiple customized designs can be built on the same platform, ensuring configuration and functional compatibility across different display models—simplifying fleet deployment and long-term maintenance.
- Built-in Auxiliary Control Unit for Higher Reliability: An independent MCU is integrated into the display, decoupled from the main CPU to manage peripheral auxiliary functions and significantly enhance overall reliability and functional safety redundancy. It controls indicator lights, buttons, and buzzer, and supports internal temperature monitoring, ambient light sensing, and multi-channel external voltage monitoring for stable and predictable operation.
- Ambient Light Sensor for Automatic Brightness Adjustment: An integrated ambient light sensor enables real-time reading of external brightness and can be configured to automatically adjust display luminance and keypad backlight, ensuring excellent readability in tunnels, nighttime operation, and strong sunlight—reducing driver visual fatigue.
- High Reliability and Protection Rating for Harsh Environments: HTR driver displays provide up to IP65 protection on the front panel, offering strong resistance to dust and water jet cleaning—well suited for harsh rail operating and maintenance conditions. Key components are selected with high-reliability criteria to achieve high MTBF and minimize lifecycle cost through reduced failures and maintenance.
