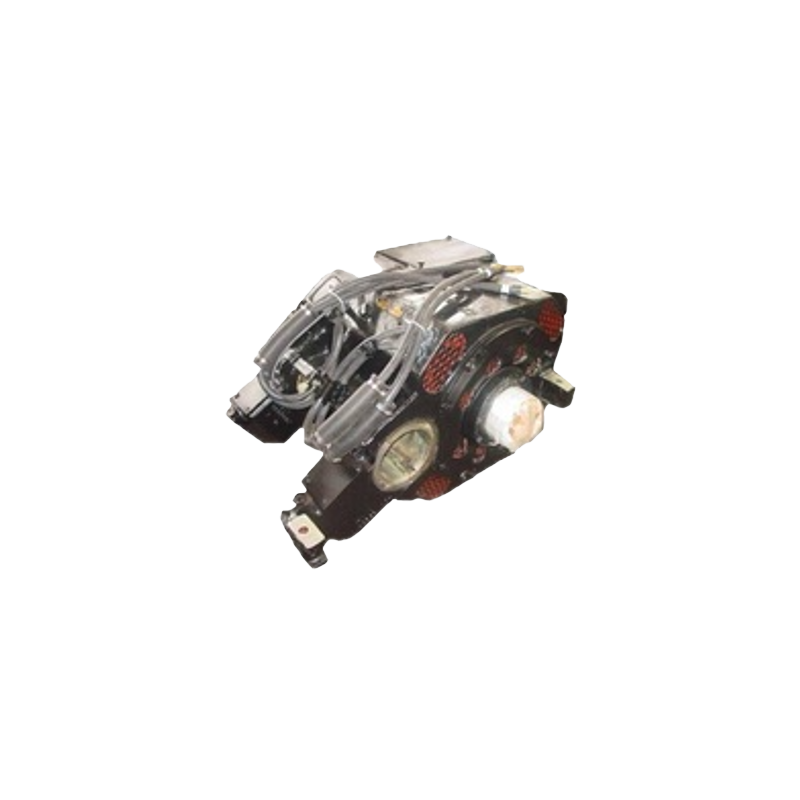

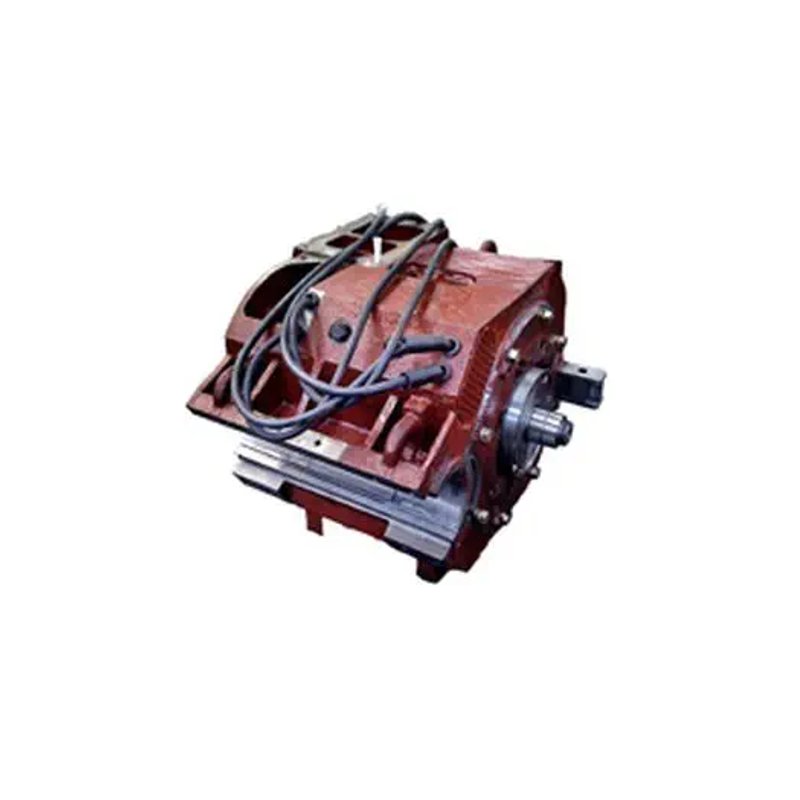

Railway Application Traction Motor YZ141 series
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Model Number | YZ141 |
| Minimum Order Quantity | 10pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Product Details
| Rated Power | 291 KW | Rated Voltage | 625 V DC |
|---|---|---|---|
| Rated Current | 520 A | Max Current | 650 A |
| Rated Speed | 534 R/min | Max Speed | 2268 R/min |
| Max Constant Power Voltage | 1000 V DC | Rated Efficiency | 0.91 |
| Cooling Air Flow | 70 M³/min | Suspension Type | Axle-hung Sliding Bearing |
| Excitation Mode | Series Wound | ||
| Highlight | Railway traction motor YZ141 series,Locomotive spare parts traction motor,YZ141 series railway motor |
||
Product Description
Product Introduction
YZ141 series DC traction motor is customized for overseas narrow-gauge diesel locomotives, fully interchangeable with D29 & D31 series motors for global railway maintenance replacement. It adopts sliding axle-hung bearing structure and wave armature winding with steel wire binding, delivering stable high torque and excellent commutation performance under heavy haul conditions. Equipped with H-class insulation and forced air cooling, it resists high temperature, heavy dust and strong vibration in tropical mining & railway environments. Compact layout allows convenient on-board inspection and overhaul. Complete motors and all spare parts are available for export locomotive repair.
Technical Parameter
| Item | Value |
| Rated Power | 291 kW |
| Rated Voltage | 625 V DC |
| Rated Current | 520 A |
| Max Current | 650 A |
| Rated Speed | 534 r/min |
| Max Speed | 2268 r/min |
| Max Constant Power Voltage | 1000 V DC |
| Rated Efficiency | 0.91 |
| Cooling Air Flow | 70 m³/min |
| Suspension Type | Axle-hung Sliding Bearing |
| Excitation Mode | Series Wound |
