C450HRC50420 Electro Hydrodynamic Transmission Retarder

Place of Origin China
Brand Name HTR
Model Number C450HRC50420
Minimum Order Quantity 10pcs
Price negotiable
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Hydrodynamic Transmission Dimensions 1228*766*1416 Mm
Structure Type Fixed-axis Type, Front And Rear Output Control Type Electro-hydraulic Control (Voltage 24V)
Total Mechanical Transmission Efficiency 0.92 Shifting Pressure 15~18 Bar
Oil Level Indicator (Low Level) 60 L Oil Level Indicator (High Level) 80 L
Initial Reference Oil Filling Volume 90 L Weight Approx. 2100 Kg (Dry)
Leave a Message
Product Description

Products Description

A hydrodynamic retarder is integrated in the transmission. Retarder, also known as a hydraulic deceleration device, uses liquid damping to produce a braking effect. It is used in vehicles during long downslopes.


Specification

Structure Type
Fixed-axis Type, Front and Rear Output
Control Type
Electro-hydraulic Control (voltage 24V)
Total Mechanical Transmission Efficiency
0.92
Shifting Pressure
15~18 Bar
Oil Level Indicator (Low Level)
60 L
Oil Level Indicator (High Level)
80 L
Initial Reference Oil Filling Volume
90 L (Can be adjusted according to the arrangement of oil pipes and cooler capacity)
Outline Dimensions
1228*766*1416 mm
Weight
Approx. 2100 KG (Dry)

Main Parameters

1) Effective diameter of circulation circle: D = 450mm
2) Maximum torque ratio: K₀ = 2.51
3) Maximum efficiency: ηₘₐₓ ≥ 0.875
4) Allowed Maximum Input Speed/Power/Torque: 2100 rpm / 600 kW / 5000 N.m
5) Power Take-Off (PTO) for Hydraulic System Pump Installation:
Number of PTO
2
Allowed Speed/Torque (Per PTO)
2800rpm /1500N.m
Drive Ratio
1.102:1 (Decreasing speed)
Rotation Direction (Towards the Pump Installation Port On The Torque Converter)
Left Hand Pump (Counter-clockwise)
Interface
SAEC Installation Flange, 14 Teeth, Diametral Pitch 12/24, 6-M12 Thread
6) Oil pump of transmission
Installed Position
Two PTO Ports for Self Use
Displacement
100/63ml/r, Duplex Pump
Allowed Speed
2800rpm
Working Conditions
Allow Continuous Operation at 120℃ Oil Temperature

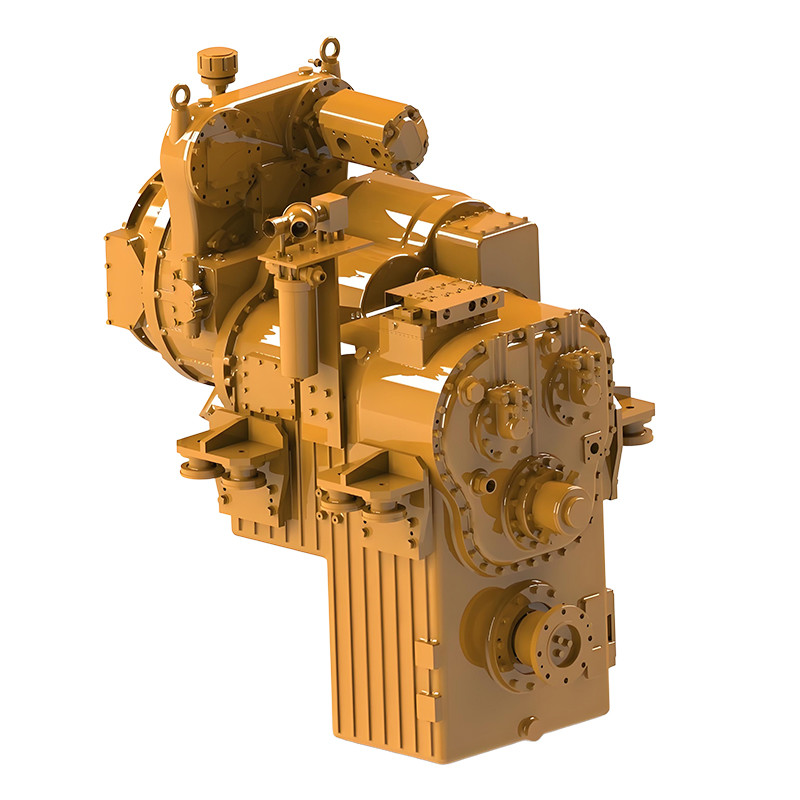

C450HRC50420 Electro Hydrodynamic Transmission Retarder 0

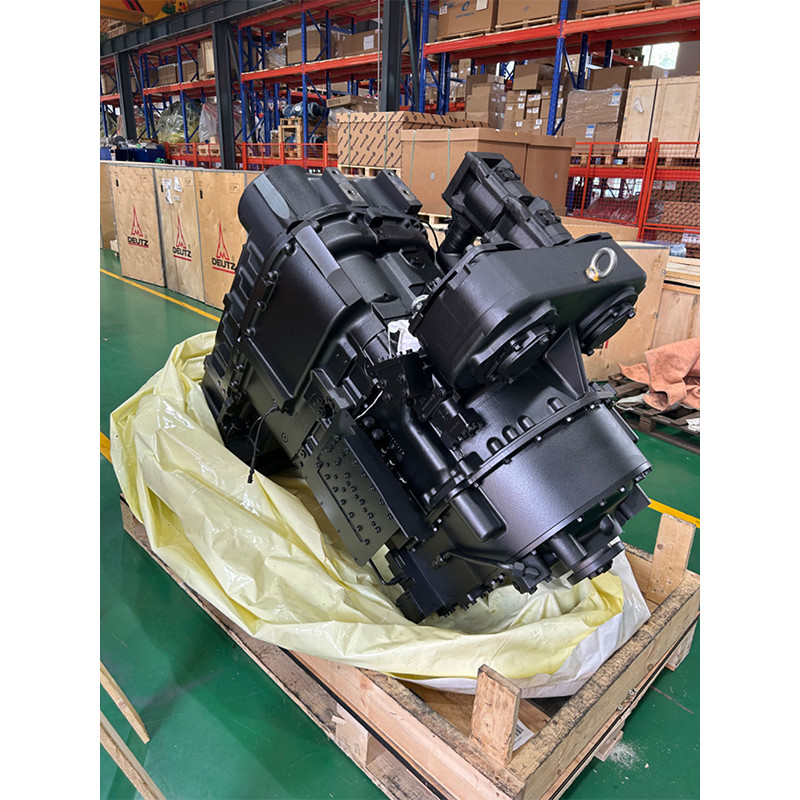

C450HRC50420 Electro Hydrodynamic Transmission Retarder 1
