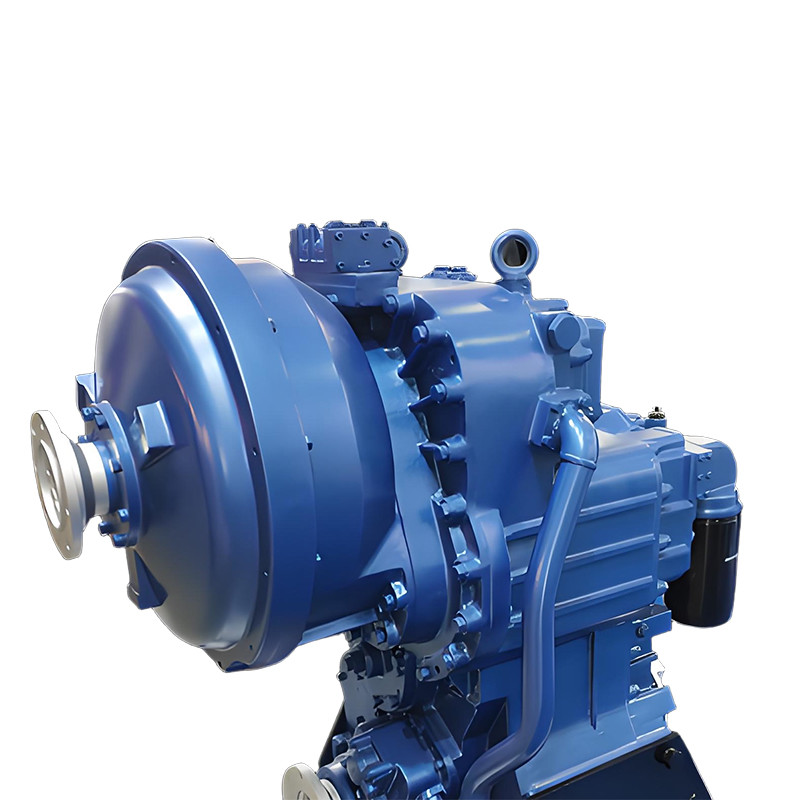

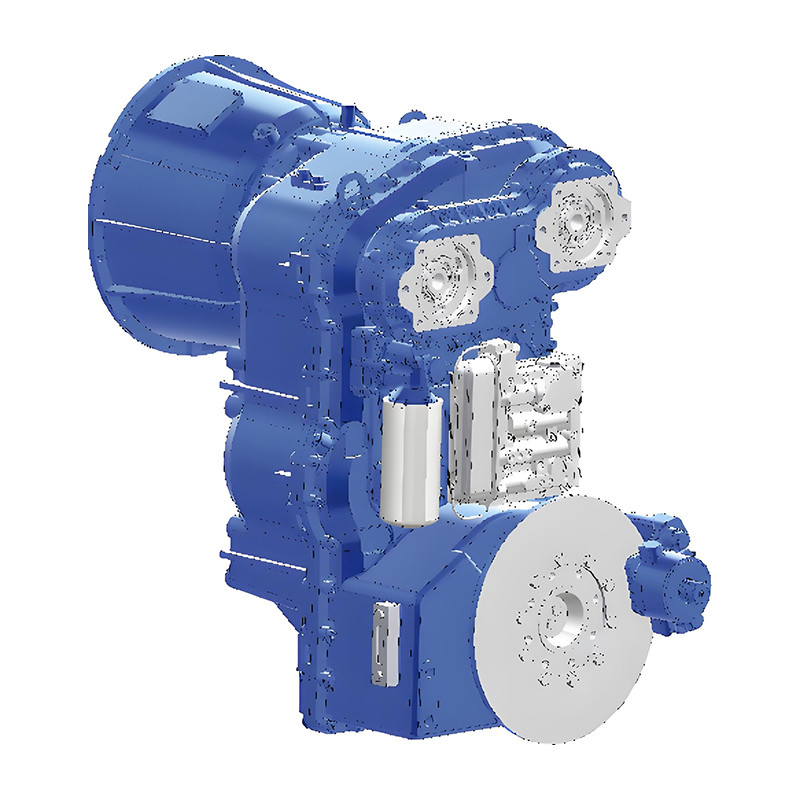

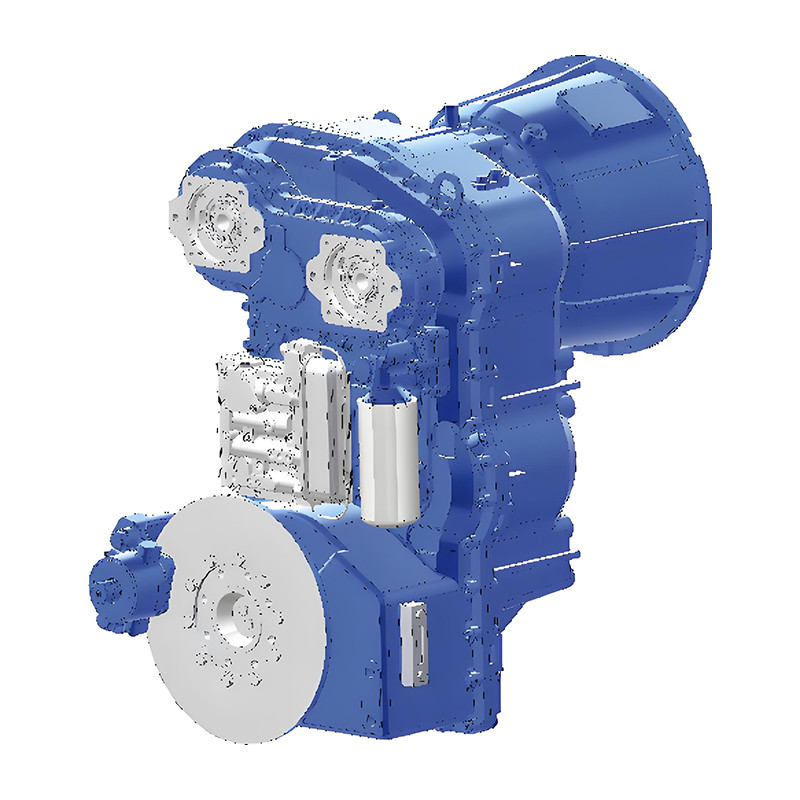

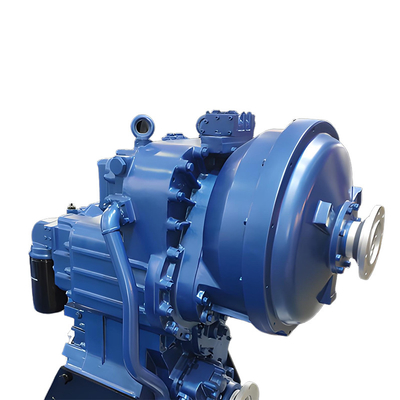

Yb230 Hydrodynamic Transmission for Engineering Vehicles
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Model Number | Yb230 |
| Minimum Order Quantity | 10pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Yb230 Hydrodynamic Transmission | Maximum Engine Speed | 2500 R/Min |
|---|---|---|---|
| Gear Configurations | 6 Forward / 3 Reverse, 4 Forward / 3 Reverse | Maximum Engine Power | 230 Kw |
| Maximum Input Torque | 1650 N·m | ||
| Highlight | hydrodynamic transmission for engineering vehicles,Yb230 hydrodynamic transmission,railway traction system transmission |
||
Product Description
Products Description
1. The YB230 hydrodynamic transmission is a fixed-shaft, multi-speed hydrodynamic transmission with
integrated torque converter and gearbox
2. It features electro-hydrodynamic control and offers an optional lock-up function
3. The YB230 is widely used in engineering vehicles such as motor graders, loaders,tractors, and scrapers
2. It features electro-hydrodynamic control and offers an optional lock-up function
3. The YB230 is widely used in engineering vehicles such as motor graders, loaders,tractors, and scrapers
Specification
| Parameters | |
| Product Performance | Reference Value |
| Maximum Engine Power | 230 kW |
| Maximum Engine Speed | 2500 r/min |
| Maximum Input Torque | 1650 N·m |
| Gear Configurations | 6 forward / 3 reverse, 4 forward / 3 reverse |
| Gear Ratios | Forward (6 gears): 5.562 / 3.615 / 2.255 / 1.466 / 0.942 / 0.613 Reverse (3 gears): 5.274 / 2.138 / 0.894 Forward (4 gears): 1.251 / 2.184 / 1.072 / 0.636 Reverse (3 gears): 3.937 / 2.071 / 1.017 |
| Shifting Mode | Electro-hydrodynamic control (upgradeable to automatic control) |
| Input Type | Torque converter can be directly connected to flywheel housing, or via mechanical flange and universal joint connection |
| Output Type | Flange, dual output |
| Torque Converter | Optional 340, 350 torque converters |
| Power Take-off (PTO) | Single PTO, dual PTO |
