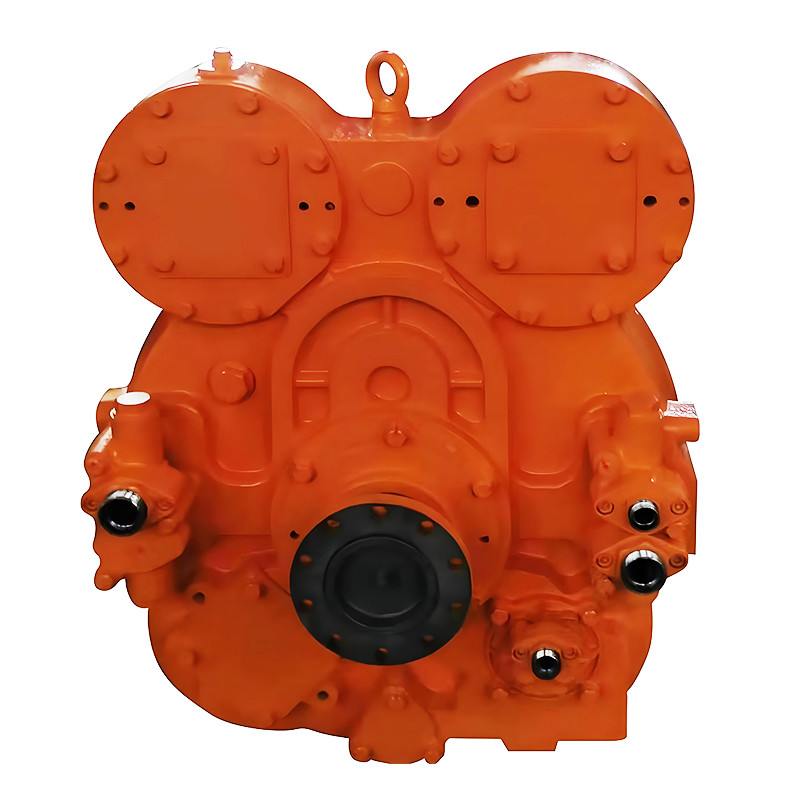

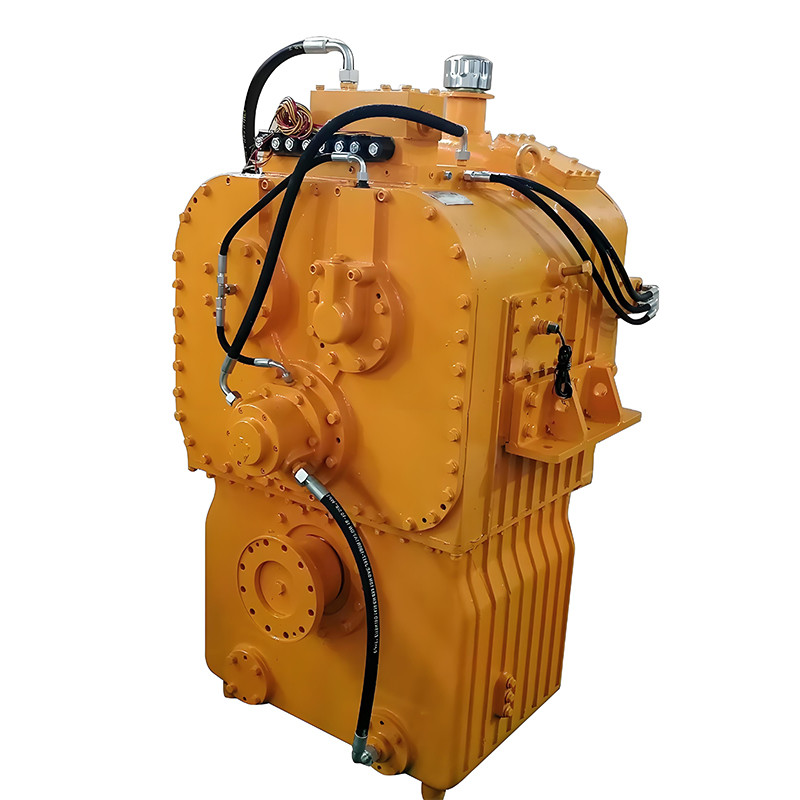

Railway 560 Kw Class Metro Shunting Hydrodynamic Transmission System
| Place of Origin | China |
|---|---|
| Brand Name | HTR |
| Model Number | YJ480FK；RC60442 |
| Minimum Order Quantity | 10pcs |
| Price | negotiable |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 560 Kw Hydrodynamic Transmission System | Maximum Efficiency | 0.87 |
|---|---|---|---|
| Shaft Drop Distance | 730 Mm |
Product Description
Products Description
560 kW Class Metro Shunting Transmission System is a specialized traction solution designed for efficient shunting operations in urban rail transit systems. This system is optimized for maneuvering metro trains within depots, stations, and maintenance yards, ensuring smooth and reliable performance.
Specification
| Product Performance | Reference Value |
| Product Model | YJ480FK |
| Cycle Diameter | 480 mm |
| Maximum Input Speed | 2300 rpm |
| Matching Power Range | 353-588 kW |
| Zero-Speed Torque Ratio | 2.35 |
| Nominal Torque at Zero-Speed Operating Condition (MBg0) |
822 N·m |
| Nominal Torque at High Efficiency Operating Condition (MBgη) | 605 N·m |
| Maximum Efficiency | 0.87 |
| Weight | 355kg |
| Product Performance | Reference Value |
| Product Model | RC60442 |
| Cycle Diameter | 7000 N·m |
| Maximum Input Speed | 2300 rpm |
| Matching Power Range | 450-661 kW |
| Gear Ratios | Forward 1 / Reverse 1: 5.718/5.594 |
| Forward 2 / Reverse 2: 3.239/3.168 | |
| Forward 3 / Reverse 3: 1.917/1.875 | |
| Forward 4 / Reverse 4: 1.095/1.071 | |
| Oil Capacity | 60 L |
| Weight | 1685kg |
| Shaft Drop Distance | 730 mm |
