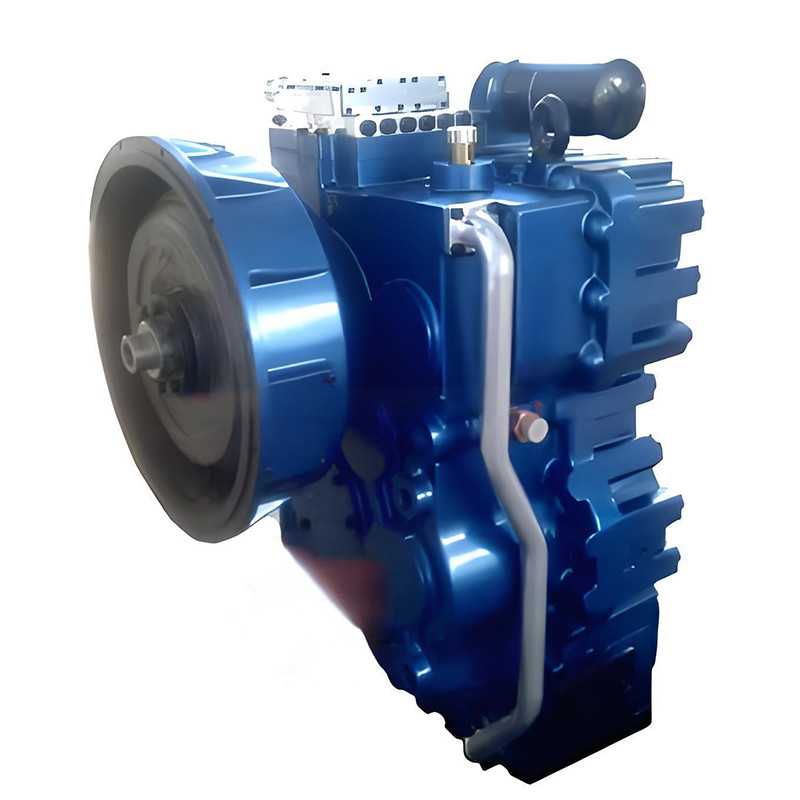

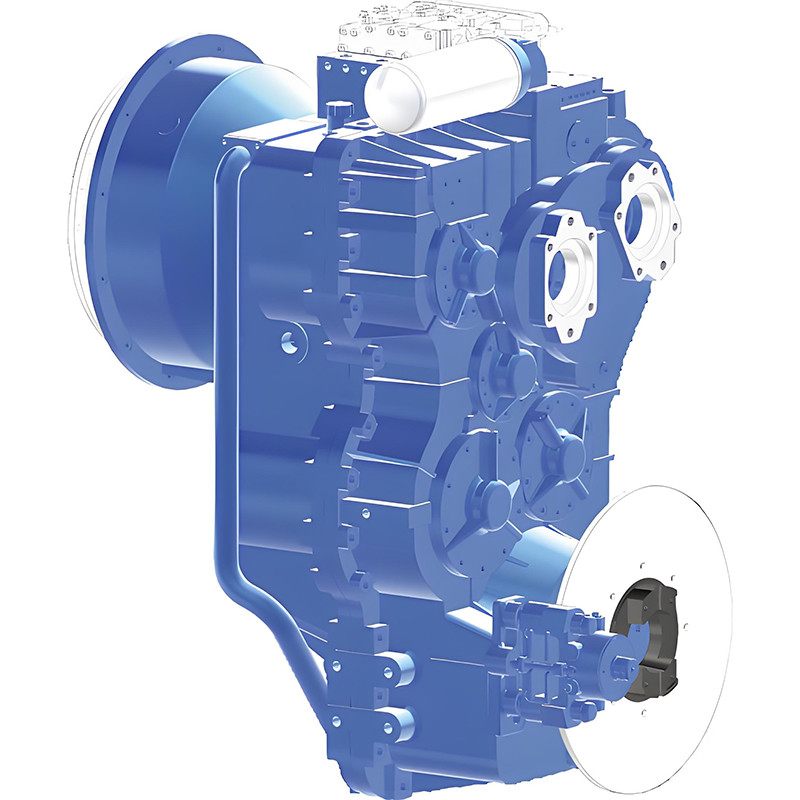

Yb310 Hydrodynamic Transmission for Engineering Vehicles

Place of Origin China
Brand Name HTR
Model Number YJ480FK;RC60442
Minimum Order Quantity 10pcs
Price negotiable
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Yb310 Hydrodynamic Transmission Maximum Engine Speed 2500 R/Min
Maximum Engine Power 310 Kw Maximum Input Torque 2950 N·m
Leave a Message
Product Description

Products Description

1. The YB310 hydrodynamic transmission is a fixed-shaft, multi-speed hydrodynamic transmission with integrated torque converter and gearbox

2. It features electro-hydrodynamic control and offers an optional lock-up function
3. The YB310 is widely used in engineering vehicles such as motor graders, loaders,tractors, and scrapers


Specification

Parameters
Product Performance Reference Value
Maximum Engine Power 310 kW
Maximum Engine Speed 2500 r/min
Maximum Input Torque 2950 N·m
Gear Configurations 6 forward / 3 reverse, 4 forward / 3 reverse, 3
forward / 3 reverse
Shifting Modes Electro-hydrodynamic control, mechanical hydrodynamic control, or integrated manual automatic (electro-hydrodynamic proportional control)
Input Type Torque converter can be directly connected to the flywheel, or via mechanical flange and YB310 Hydrodynamic Transmission universal joint connection
Output Type Flange, dual output
Torque converter 375 torque converter
Power Take-off (PTO) PTO1 gear ratio -1, PTO2 gear ratio -1
Optional DB310 (without torque converter), with options for electro-hydrodynamic control or mechanical-hydrodynamic control
