250 Kw Metro Shunting Hydrodynamic Transmission System

Place of Origin China
Brand Name HTR
Model Number YJ480FK;RC60442
Minimum Order Quantity 10pcs
Price negotiable
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 250 Kw Metro Shunting Hydrodynamic Transmission System Maximum Efficiency 0.87
Oil Capacity 30 L Zero-Speed Torque Ratio 2.63
Shaft Drop Distance 508 Mm
Leave a Message
Product Description

Products Description

The 250 kW Metro Shunting Hydrodynamic Transmission System combines the YJ409FK torque converter and RC38425 gearbox, offering high efficiency (up to 89%) and strong torque at low speeds. With wide power matching and compact design, it's ideal for reliable and smooth operation in urban rail applications.


Specification

Product Performance Reference Value
Product Model YJ435FK
Cycle Diameter 435 mm
Maximum Input Speed 2400 rpm
Matching Power Range 240-386 kW
Zero-Speed Torque Ratio 2.63
Nominal Torque at Zero-Speed
Operating Condition (MBg0)
492 N·m
Nominal Torque at High Efficiency Operating Condition (MBgη) 365 N·m
Maximum Efficiency 0.87
Weight 330 kg


Product Performance Reference Value
Product Model RC38425
Cycle Diameter 2300 N·m
Maximum Input Speed 3000 rpm
Matching Power Range 151-279 kW
Gear Ratios 1st Gear: 4.342
2nd Gear: 2.491
3rd Gear: 1.429
4th Gear: 0.749
Oil Capacity 30 L
Weight 505 kg
Shaft Drop Distance 508 mm

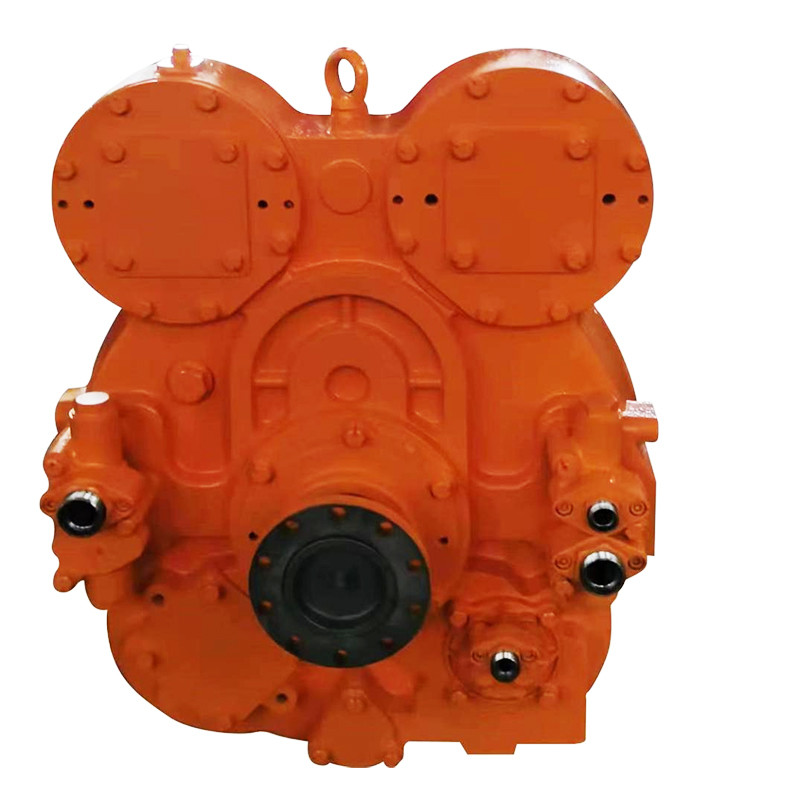

250 Kw Metro Shunting Hydrodynamic Transmission System 0

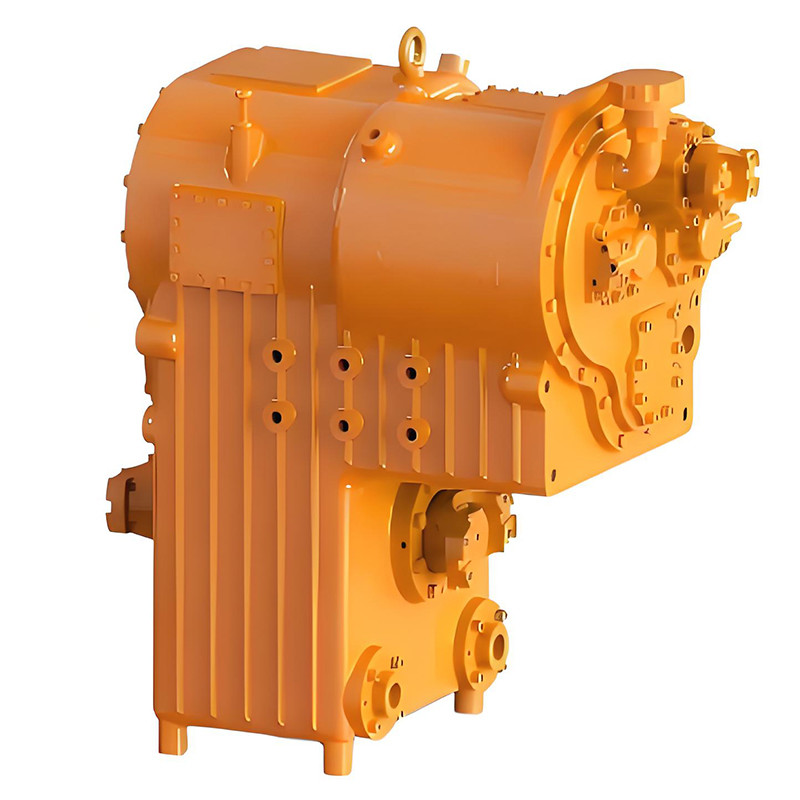

250 Kw Metro Shunting Hydrodynamic Transmission System 1

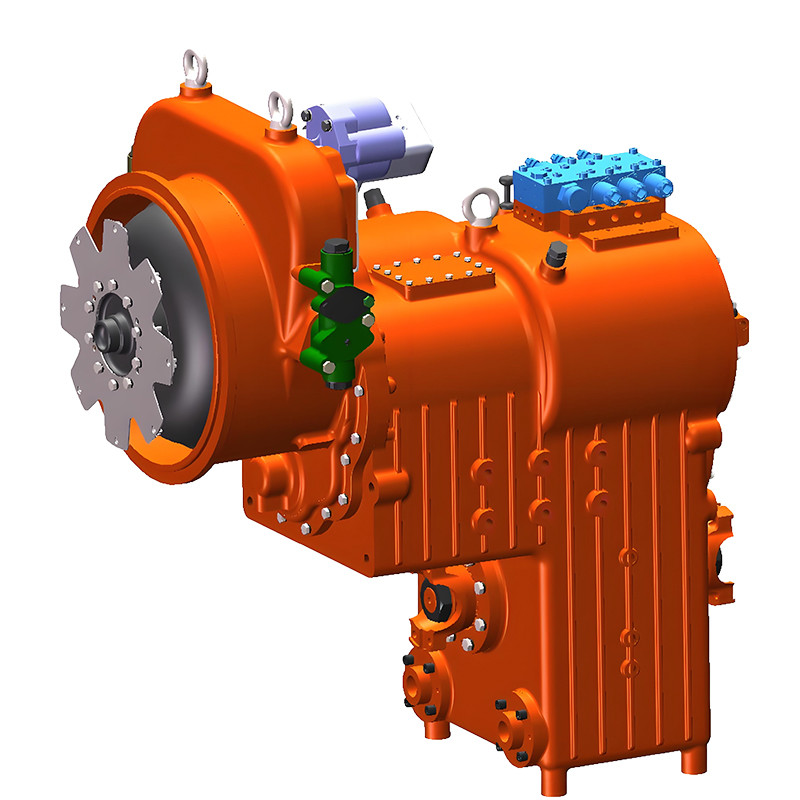

250 Kw Metro Shunting Hydrodynamic Transmission System 2
